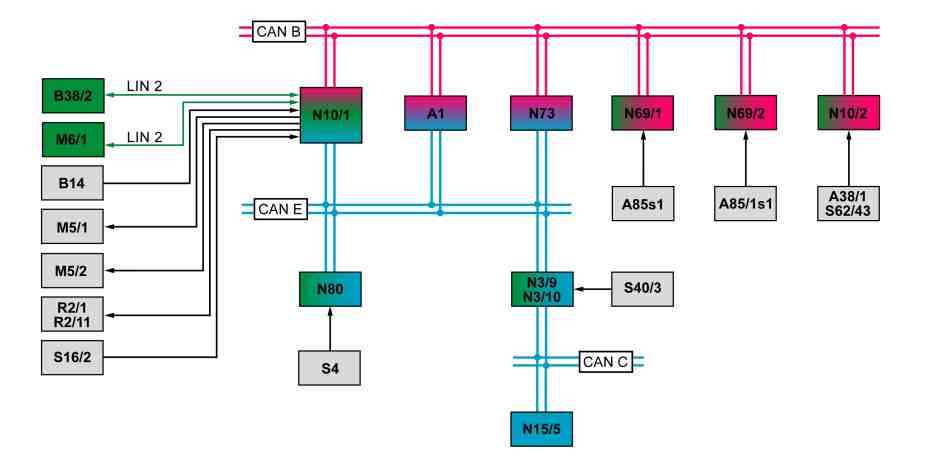

GF82.30-P-0003-04CA Wiper System (WSA) Block Diagram

GF82.30-P-0003-04CA Wiper System (WSA) Block Diagram





A1 Instrument cluster
A38/1 Engine hood switch pedestrian protection + ATA Hall sensor (with code (551) Anti-theft alarm system (ATA [EDW]) and code (U60) Pedestrian protection)
A85s1 Left front door rotary tumbler switch
A85/1s1 Right front door rotary tumbler switch
B14 Outside temperature sensor
B38/2 Rain/light sensor
M5/1 Windshield washer system pump
M5/2 Headlamp cleaning system pump (with code (600) Headlamp cleaning system)
M6/1 Wiper motor
N3/9 CDI control unit (with diesel engine)
N3/10 ME-SFI [ME] control unit (with gasoline engine)
N10/1 Front SAM control unit with fuse and relay module
N10/2 Rear SAM control unit with fuse and relay module
N15/5 Electronic selector lever module control unit (transmission 722)
N69/1 Left front door control unit
N69/2 Right front door control unit
N73 Electronic ignition switch control unit
N80 Steering column module control unit
R2/1 Spray nozzle heater
R2/11 Spray nozzle hose heater (with code (875) Heated windshield washer system)
S4 Combination switch
S16/2 Backup lamp switch (transmission 711, 716)
S40/3 Clutch pedal switch (transmission 711, 716)
S62/43 Left engine hood contact switch (with code (551) Anti-theft alarm system (ATA [EDW]) and without code (U60) Pedestrian protection)
CAN B Interior CAN
CAN C Drive train CAN
CAN E Chassis CAN
LIN 2 Wiper/inside rearview mirror LIN
