Home >> Mercedes Benz >> 2012 >> E 350 Coupe (207.359) V6-3.5L (276.957) >> Repair and Diagnosis >> Windows and Glass >> Windshield >> Service and Repair >> AR67.10-P-1050EC Remove/Install Detachable Parts When Replacing Windshield

AR67.10-P-1050EC Remove/Install Detachable Parts When Replacing Windshield



AR67.10-P-1050EC Remove/Install Detachable Parts When Replacing Windshield

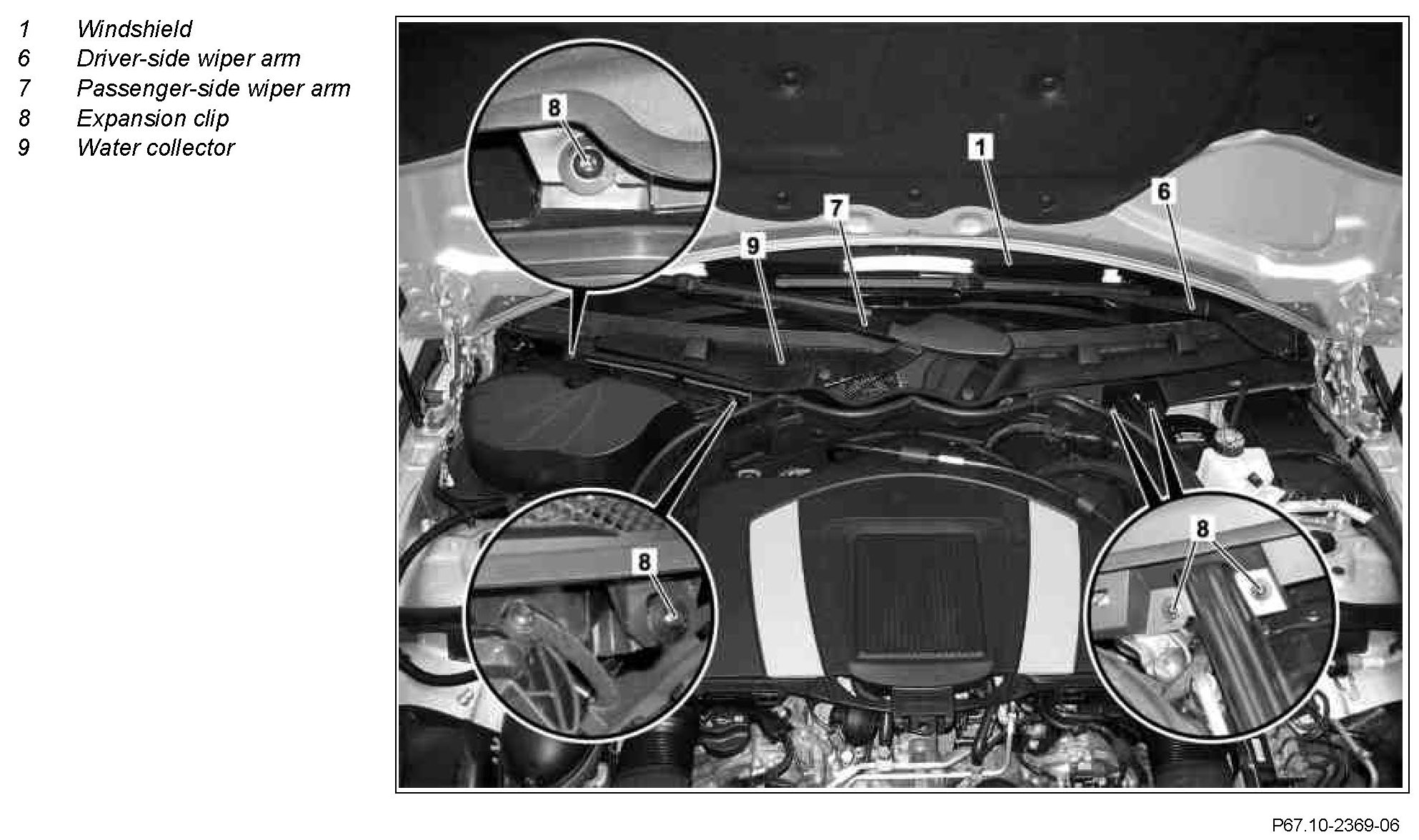

Component Identification:

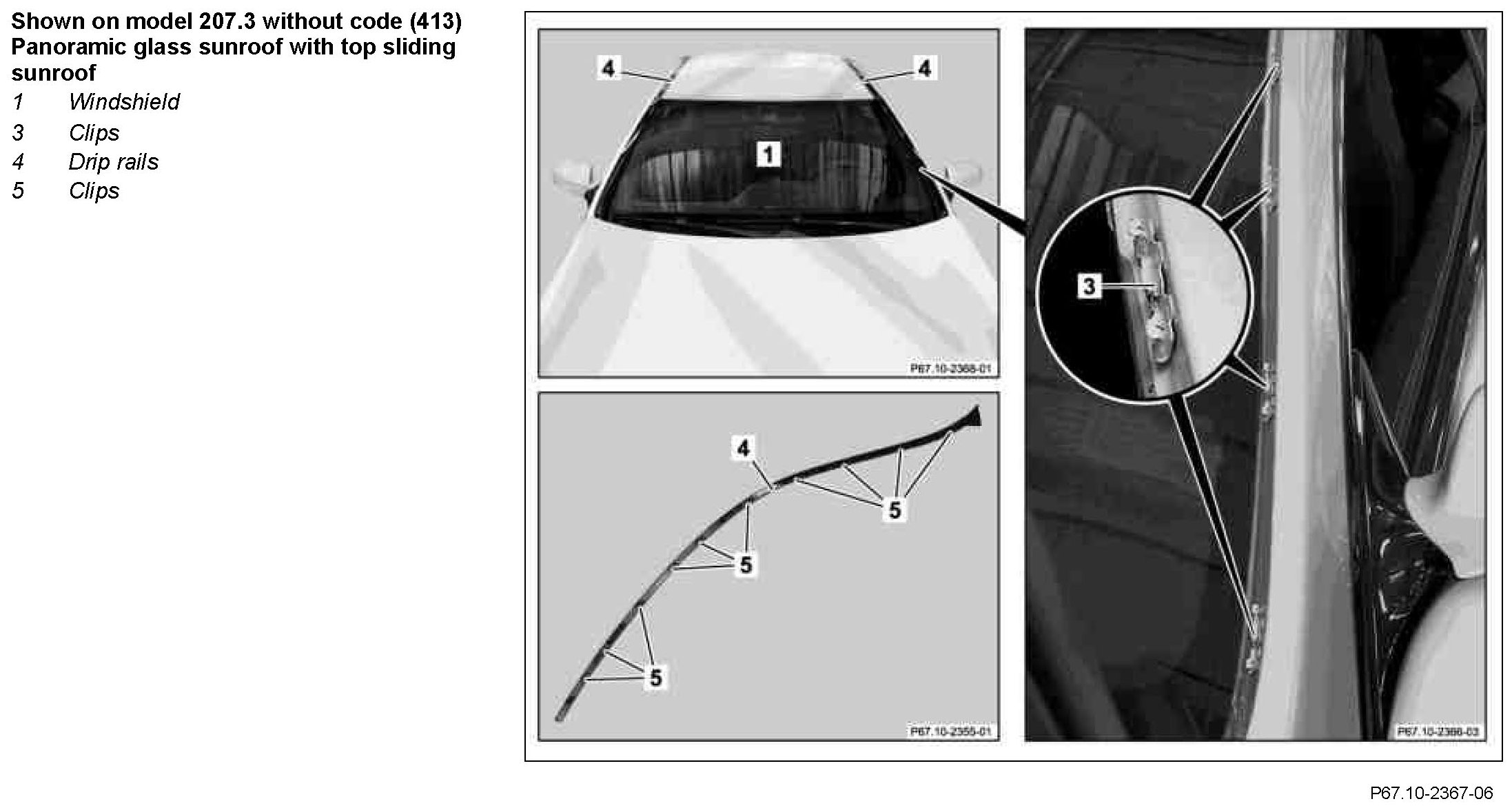

Component Identification:

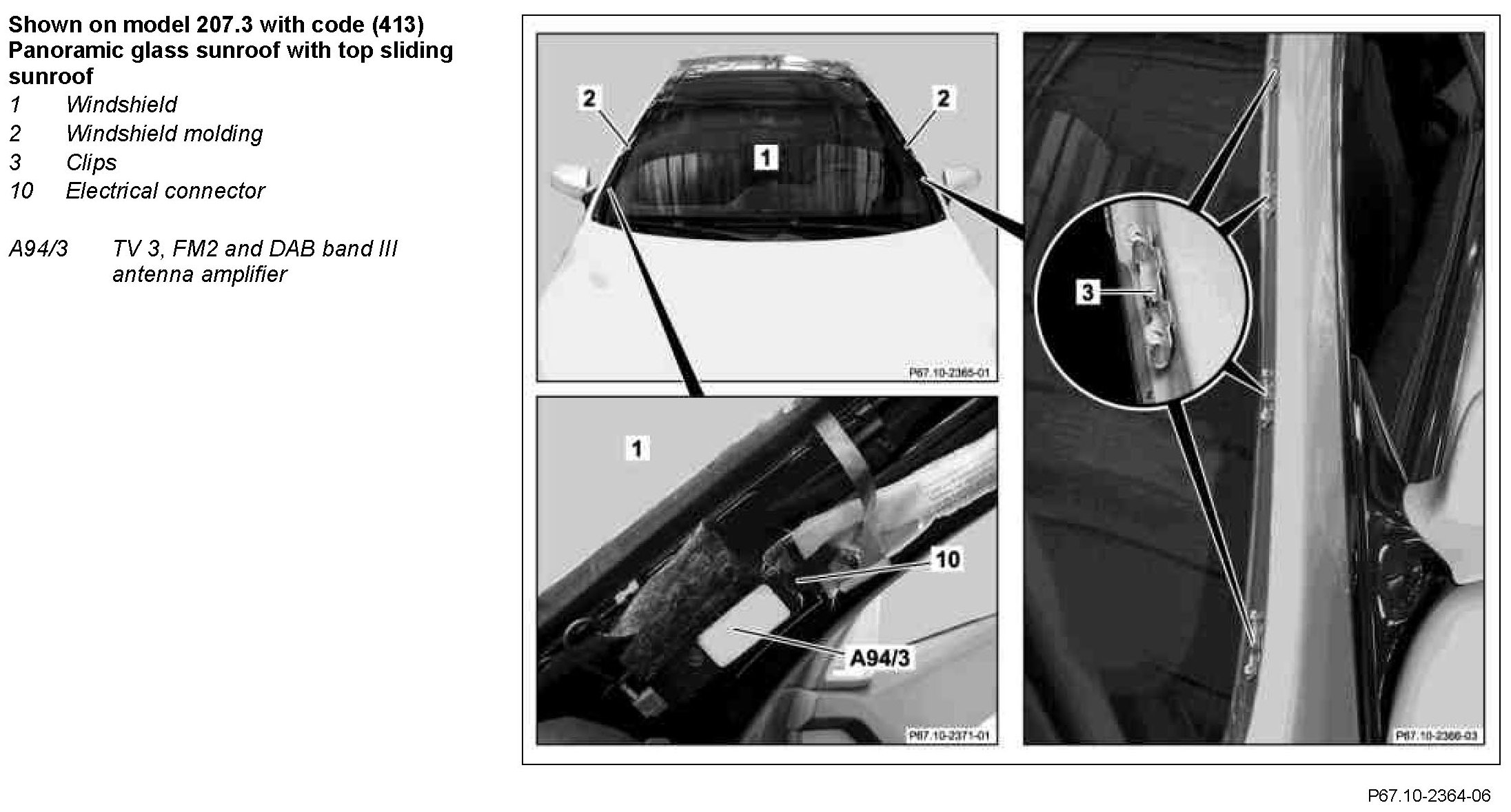

Component Identification:

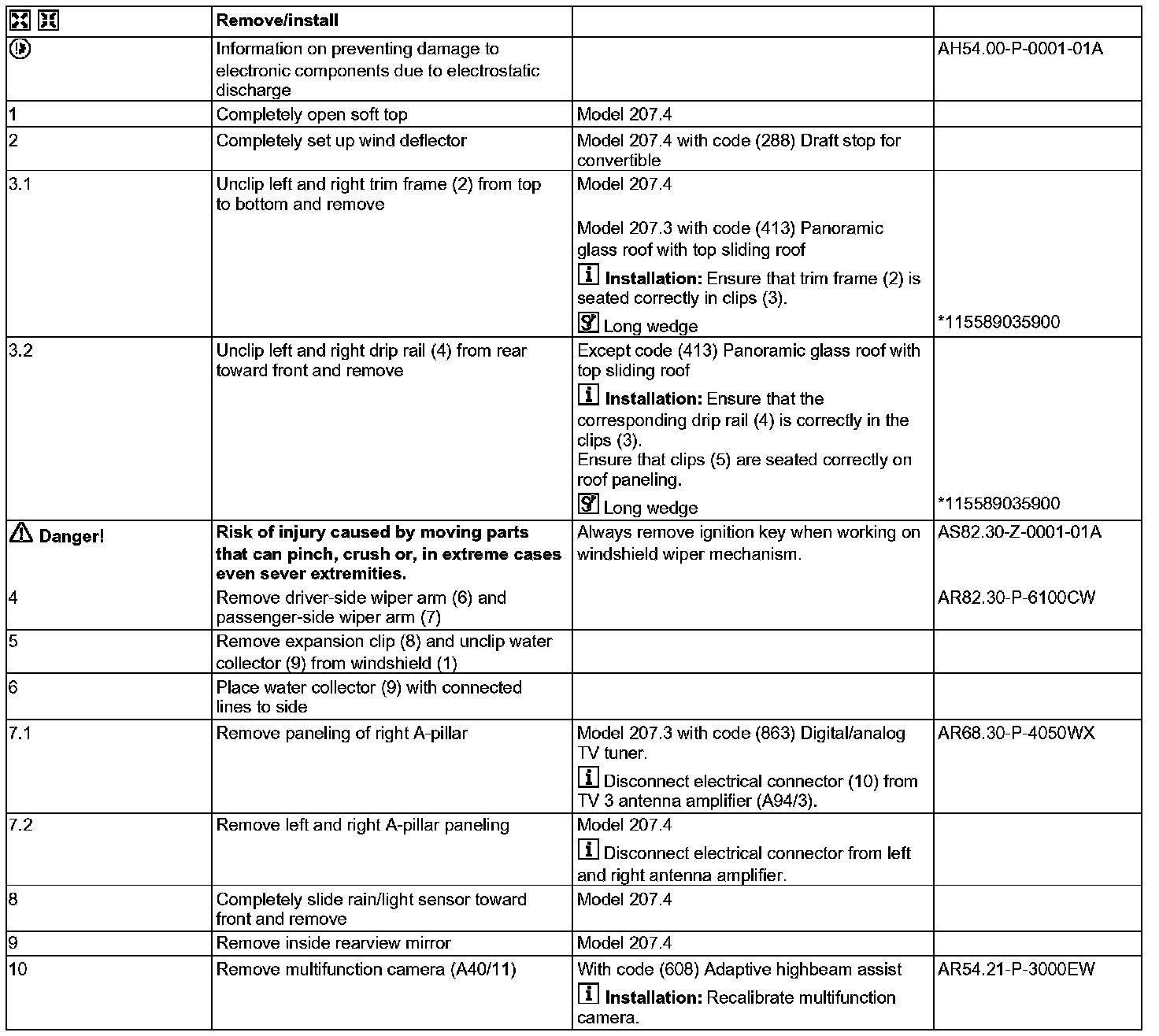

Steps 1 - 10:

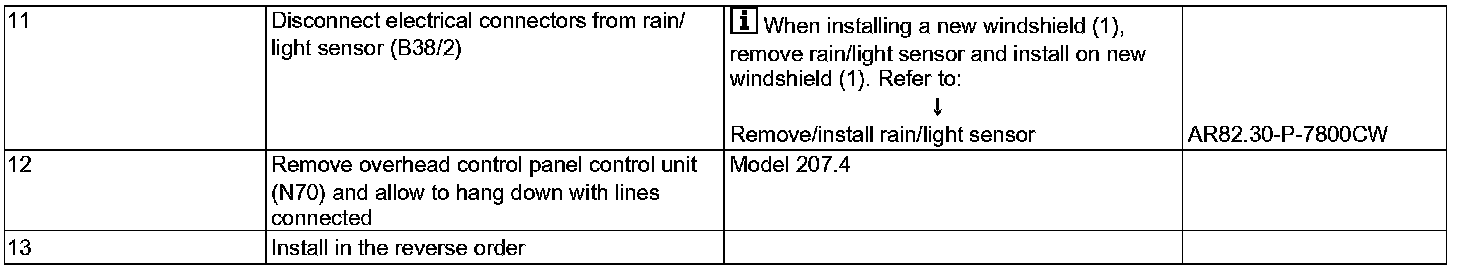

Steps 11 - 13:

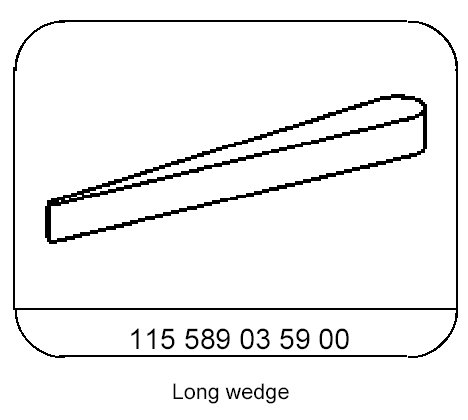

Special Tools:
