Home >> Mercedes Benz >> 2012 >> E 350 Coupe (207.359) V6-3.5L (276.957) >> Repair and Diagnosis >> Windows and Glass >> Windows >> Window Regulator >> Front Door Window Regulator >> Service and Repair

Front Door Window Regulator: Service and Repair



AR72.10-P-1800EC Remove/Install Front Door Window Lifter

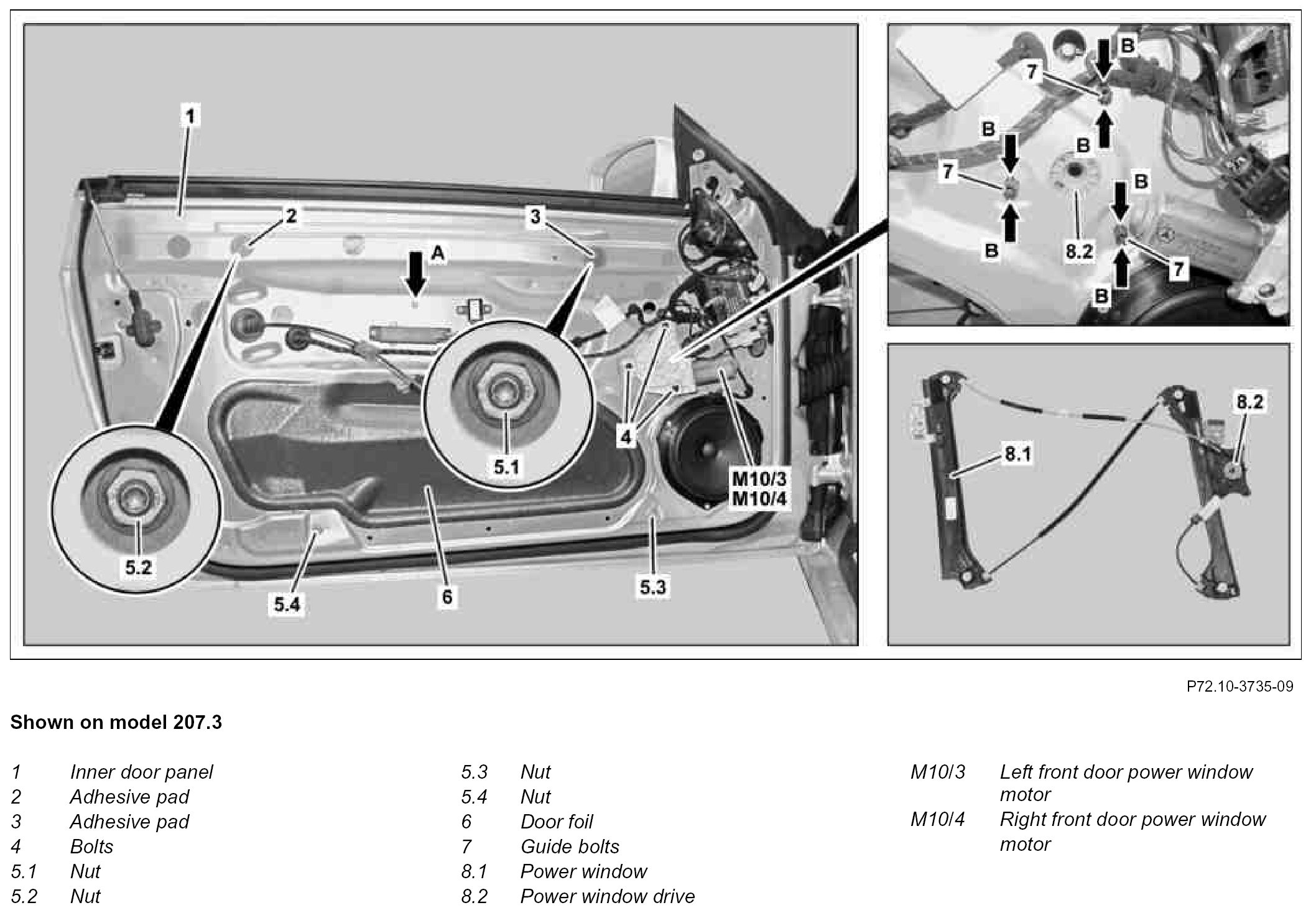

Component Identification:

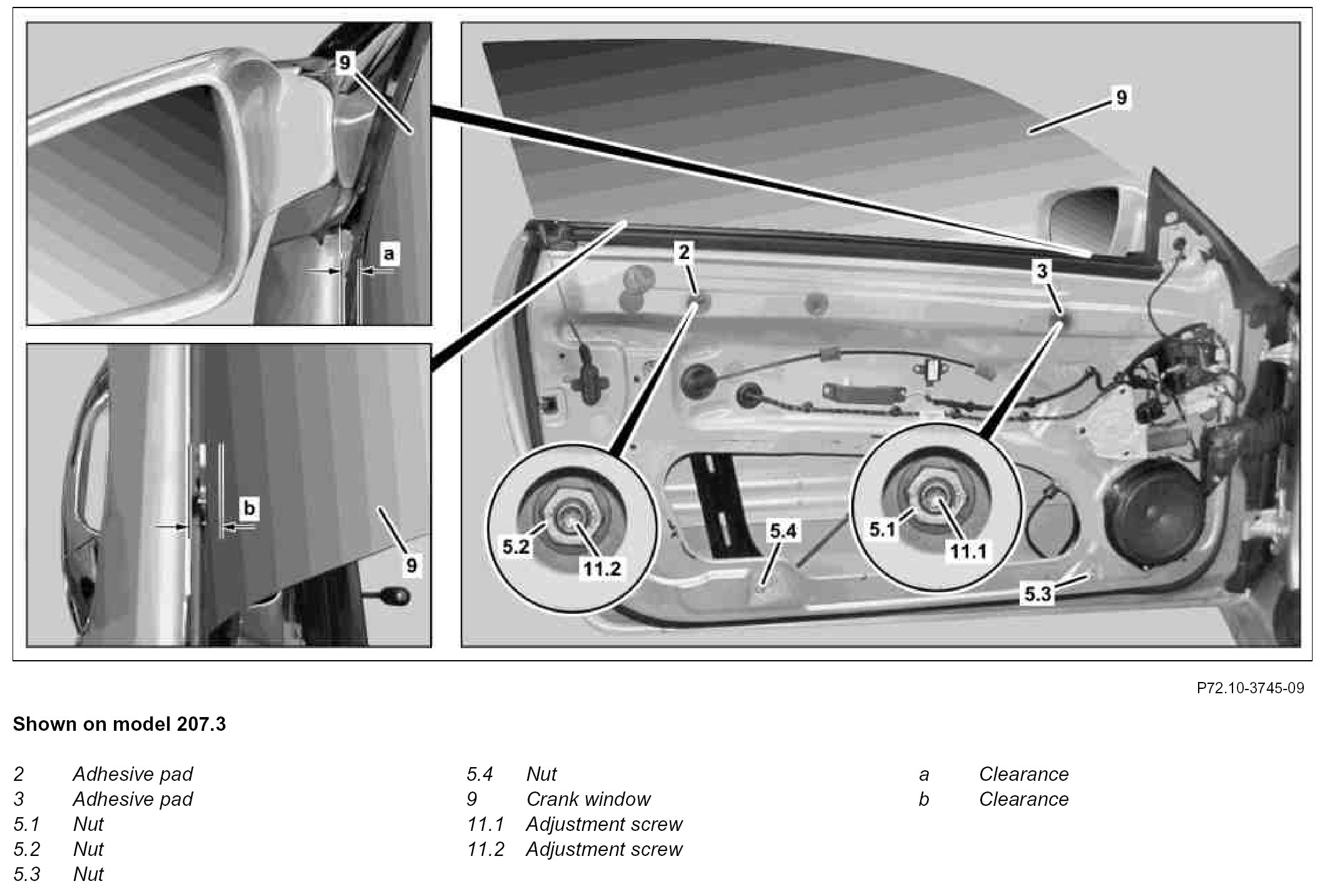

Component Identification:

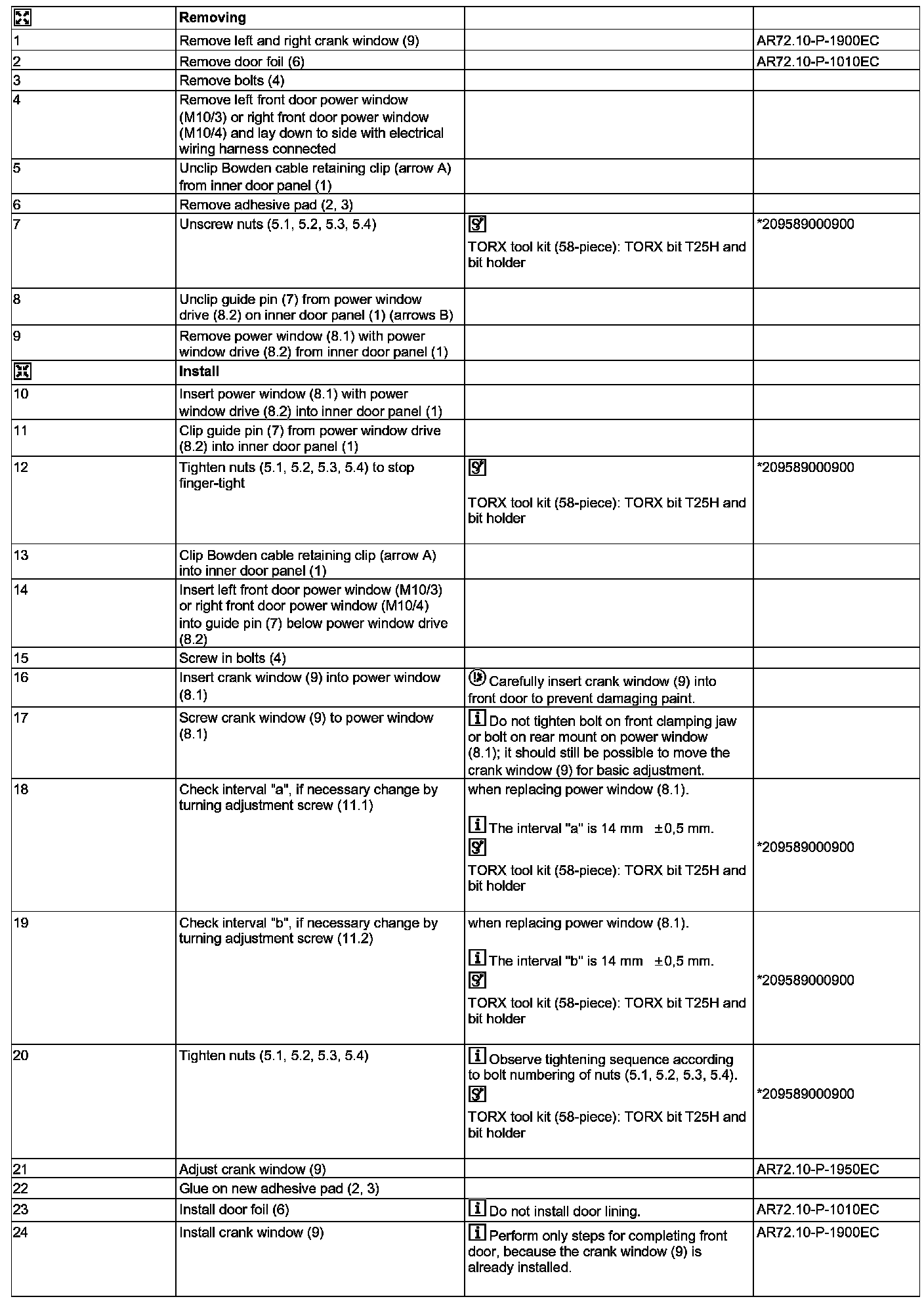

Steps 1 - 24:

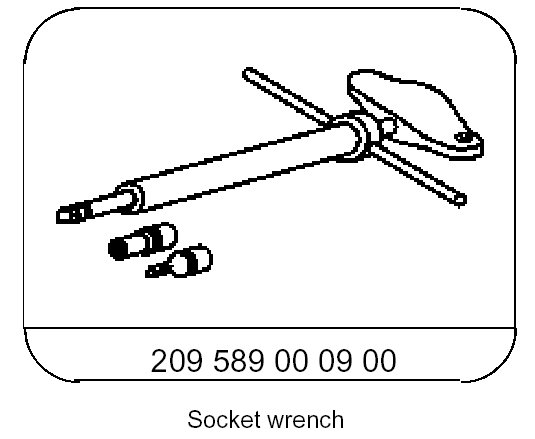

Special Tool:
