Home >> Mercedes Benz >> 2012 >> E 350 Coupe (207.359) V6-3.5L (276.957) >> Repair and Diagnosis >> Windows and Glass >> Windows >> Window Glass >> Quarter Window Glass >> Service and Repair >> AR67.30-P-4200EC Adjusting Rear Side Windows

AR67.30-P-4200EC Adjusting Rear Side Windows



AR67.30-P-4200EC Adjusting Rear Side Windows

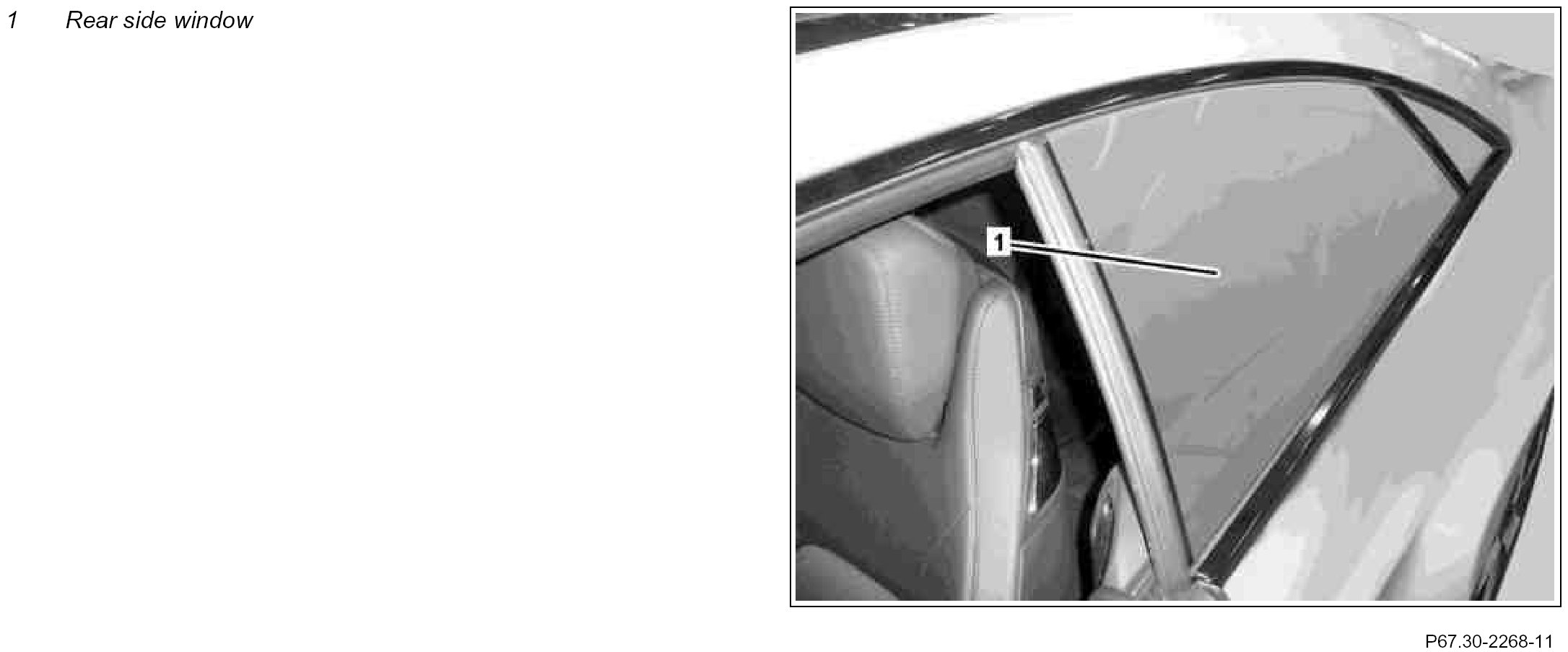

Component Identification:

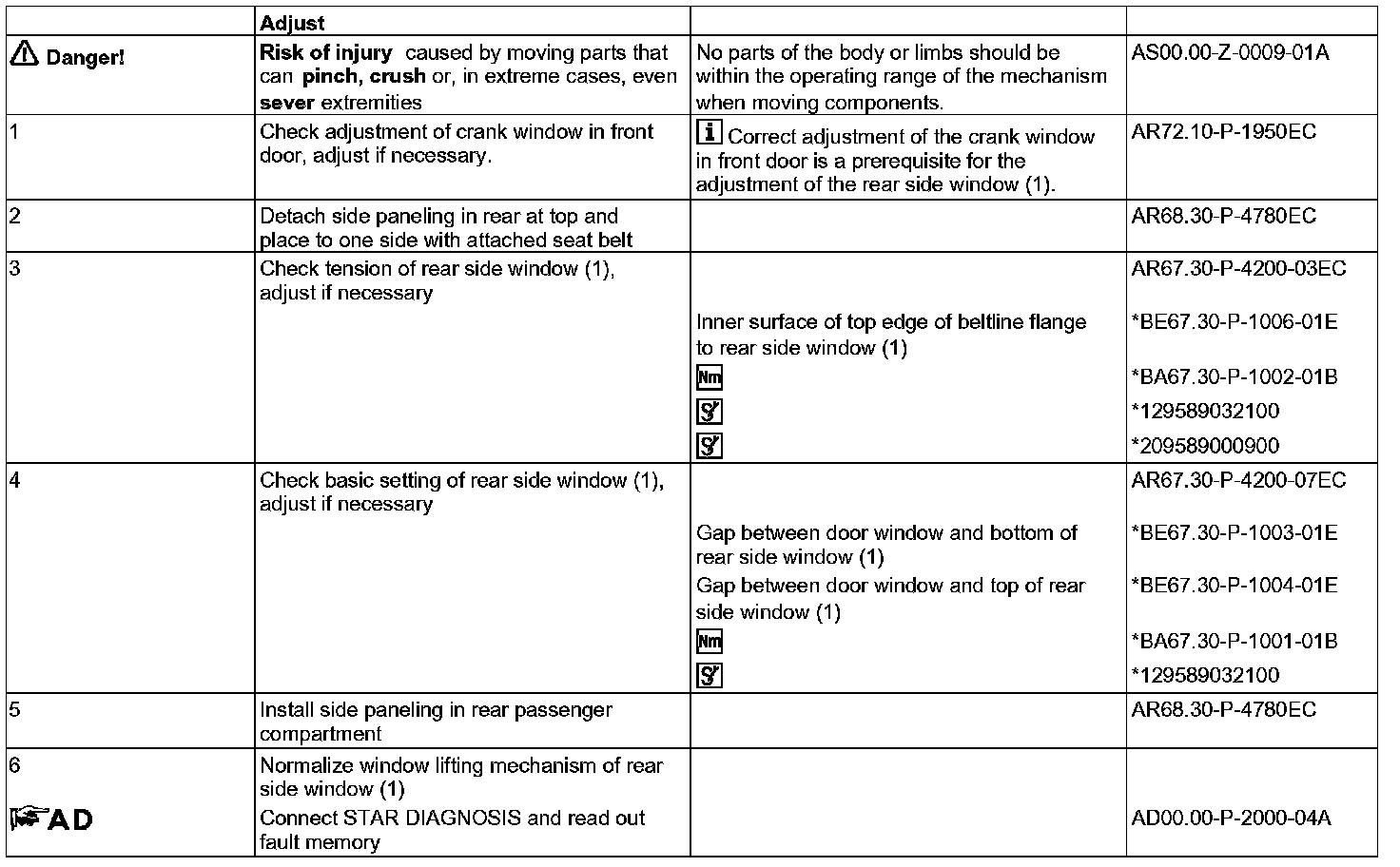

Steps 1 - 6:

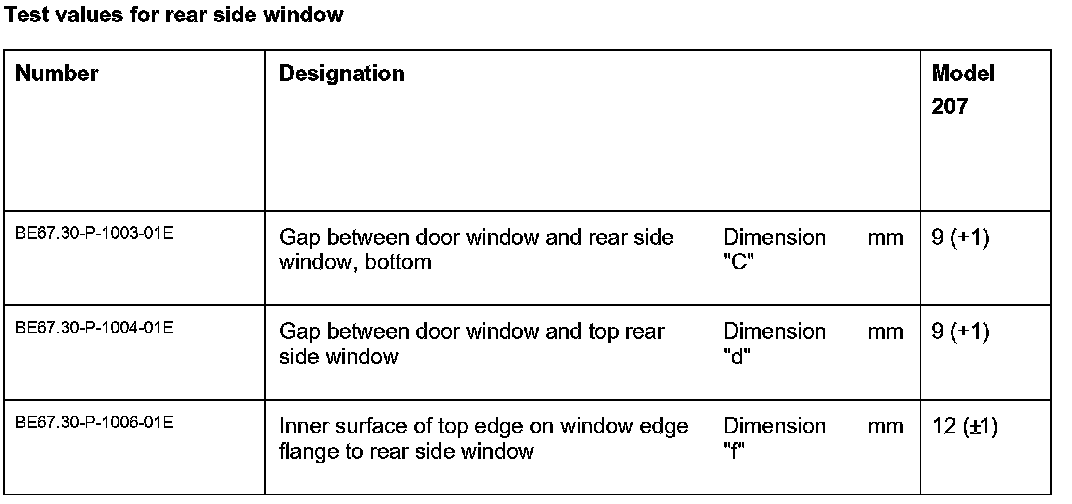

Test Values For Rear Side Window:

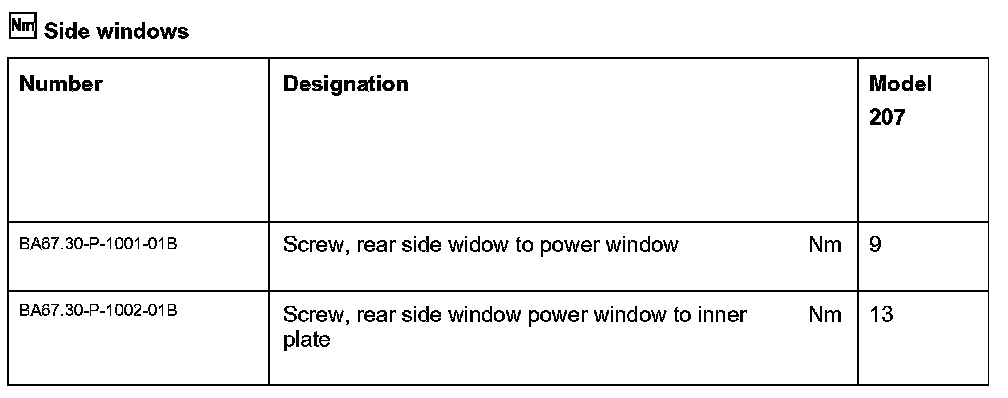

Side Windows:

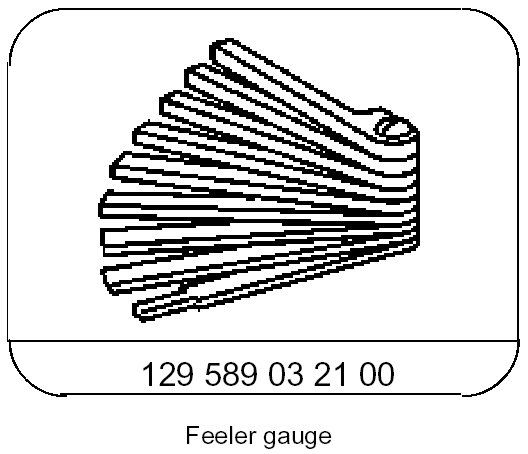

Special Tools:

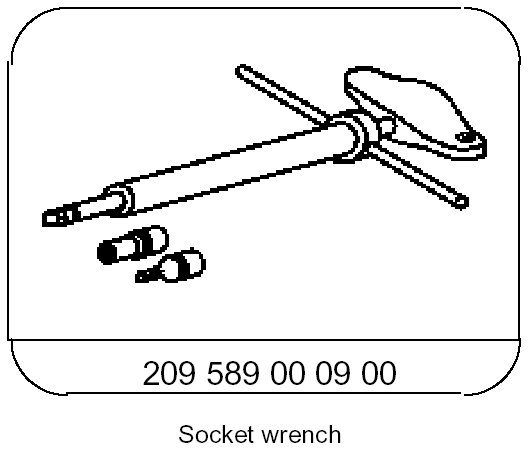

Special Tools:
