Home
>>
Mercedes Benz
>>
2012
>>
E 350 Coupe (207.359) V6-3.5L (276.957)
>>
Repair and Diagnosis
>>
Windows and Glass
>>
Windows
>>
Window Glass
>>
Quarter Window Glass
>>
Service and Repair
>>
AR67.30-P-4000EC Remove/Install Rear Side Window
AR67.30-P-4000EC Remove/Install Rear Side Window
AR67.30-P-4000EC Remove/Install Rear Side Window

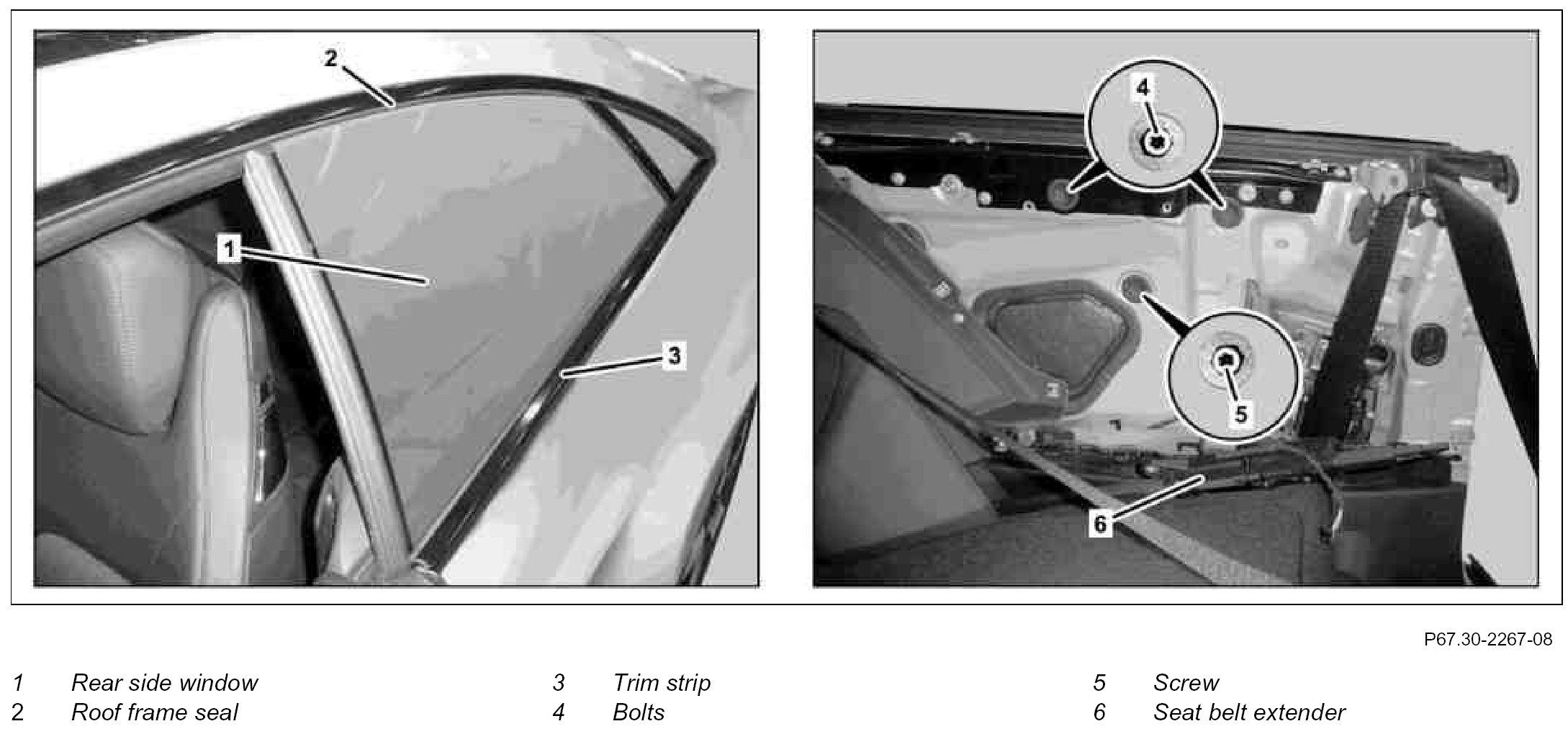

Component Identification:

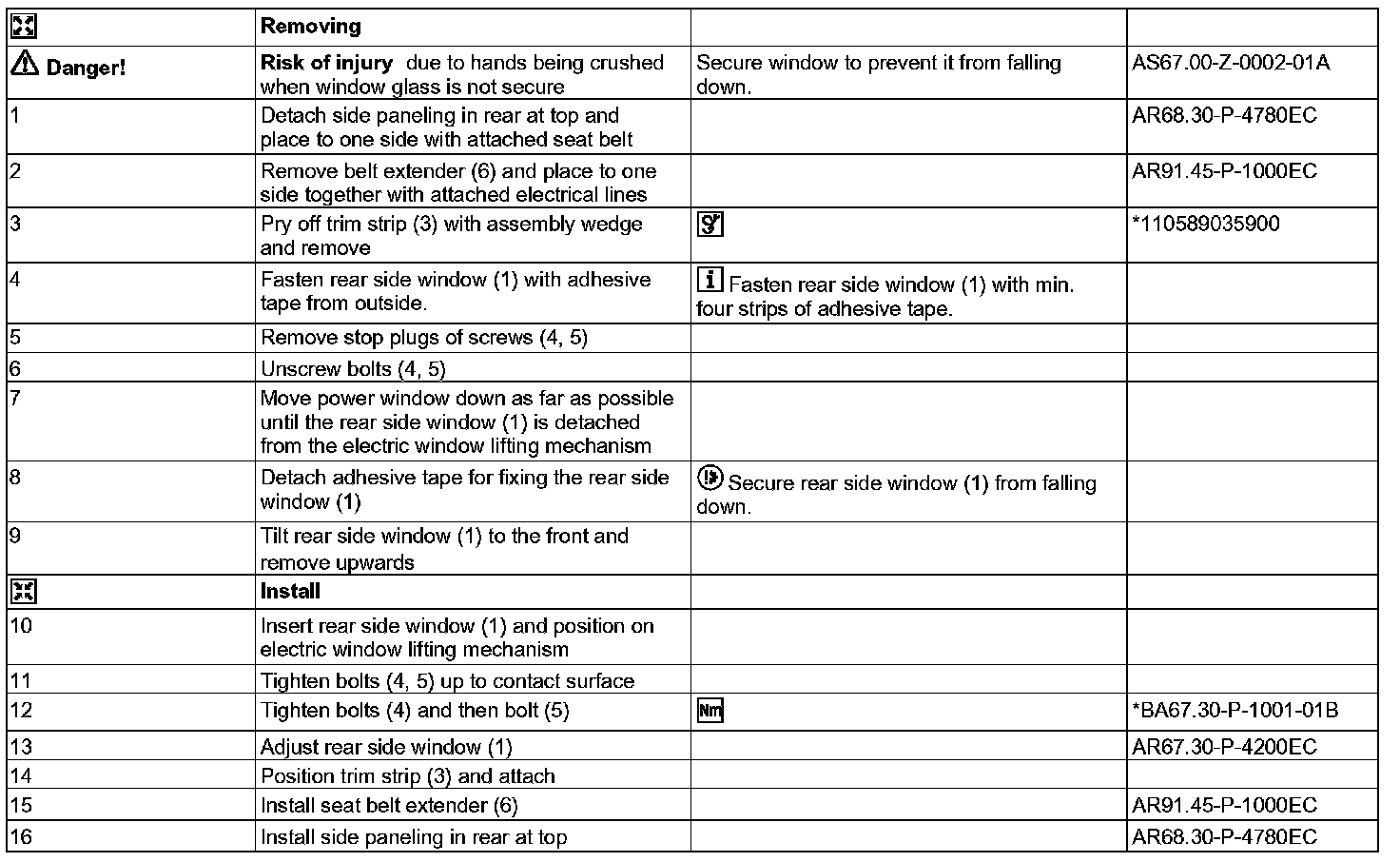

Steps 1 - 16:

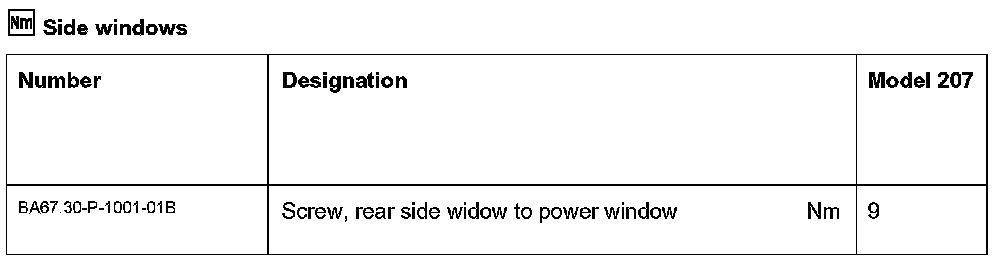

Side Windows:

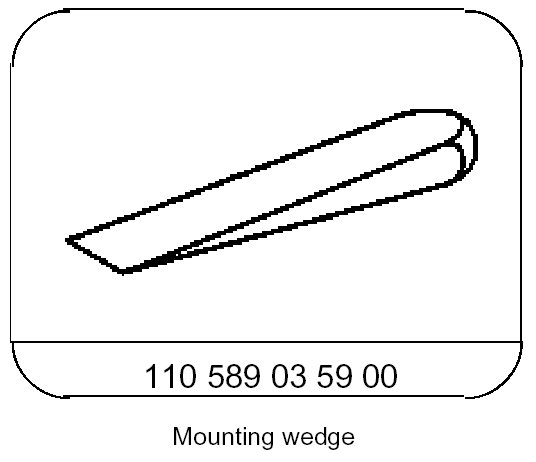

Special Tools:
