Quarter Window Glass: Adjustments

AR67.30-P-4000-13EC Adjust Rear Side Window Divider


129 589 03 21 00, Feeler gauge

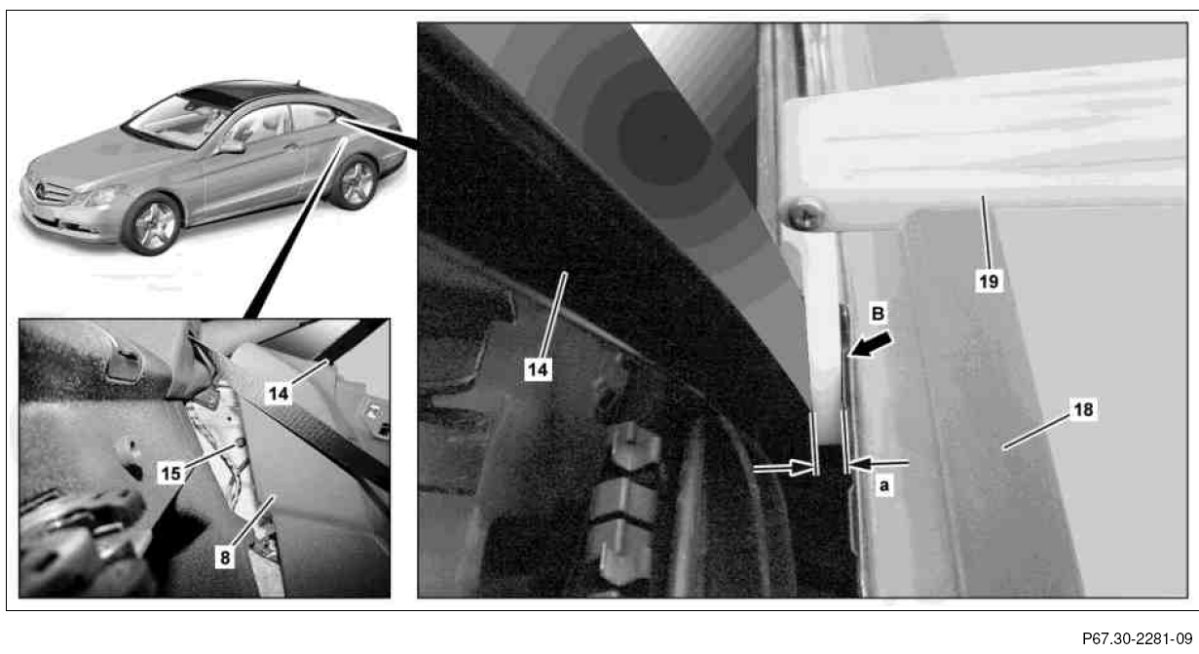

1. To adjust the distance (dimension a) between the window divider (14) and the reinforcement (arrow B) on the side wall paneling (18), install feeler gauge (19) with thickness of 8 mm between window divider (14) and reinforcement (arrow B) on side wall paneling (18).
2. Slightly pull lower side paneling (8) downward.
3. Screw bolt (15) into window divider (14) and tighten.
4. Remove feeler gauge (19).
