AR72.10-P-2120EC Remove/Install Door Frame Seal

AR72.10-P-2120EC Remove/Install Door Frame Seal

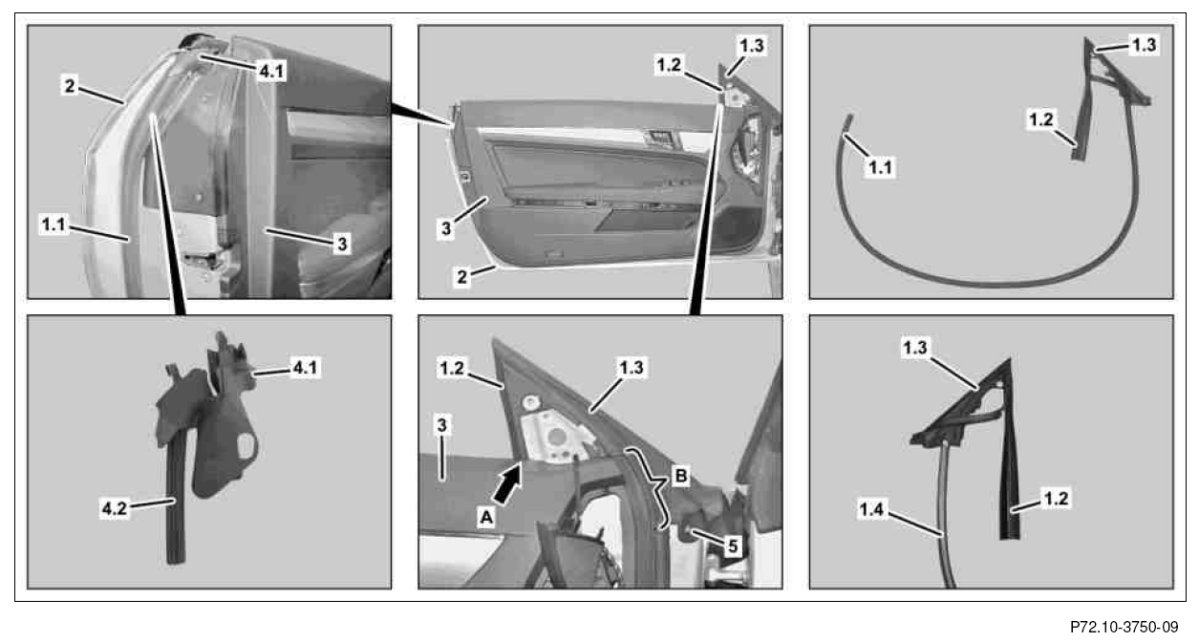

Shown on left front door, model 207.3







1.1 Door frame seal
1.2 Window guide rail
1.3 Outside mirror seal
1.4 Protective foil
2 Front door
3 Door lining
4.1 Inner sealing rail
4.2 Guide pin
5 Snap fasteners










110 589 03 59 00, Mounting wedge

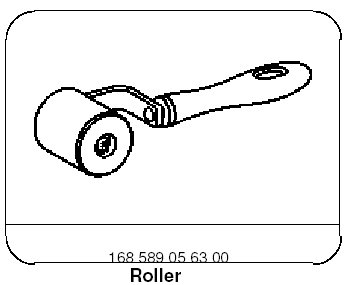

168 589 05 63 00, Roller
