Home >> Mercedes Benz >> 2012 >> E 350 Coupe (207.359) V6-3.5L (276.957) >> Repair and Diagnosis >> Windows and Glass >> Windows >> Power Window Motor >> Quarter Window Motor >> Service and Repair

Quarter Window Motor: Service and Repair



AR67.39-P-4160EC Remove/Install Power Window Motor For Rear Side Window

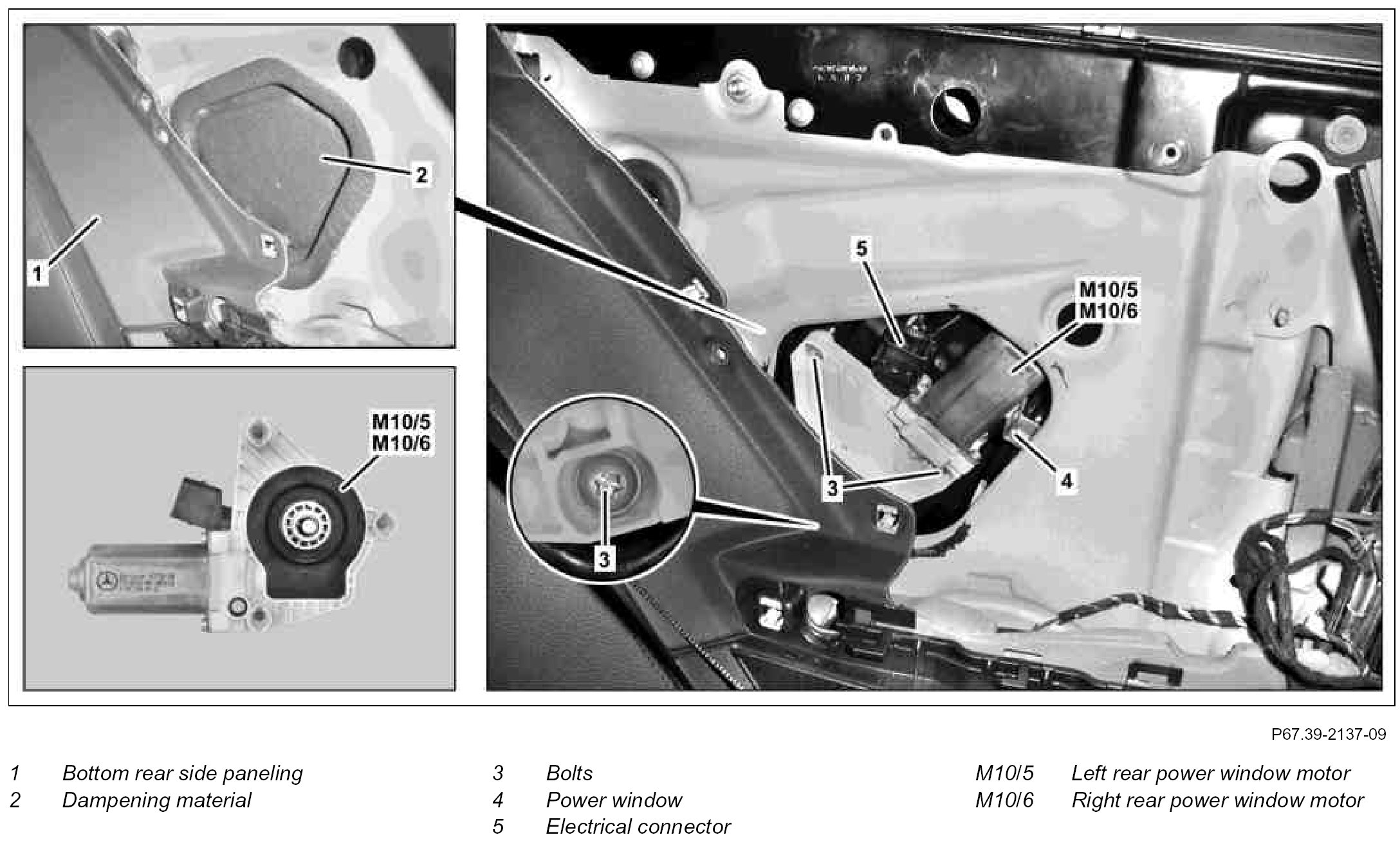

Component Identification:

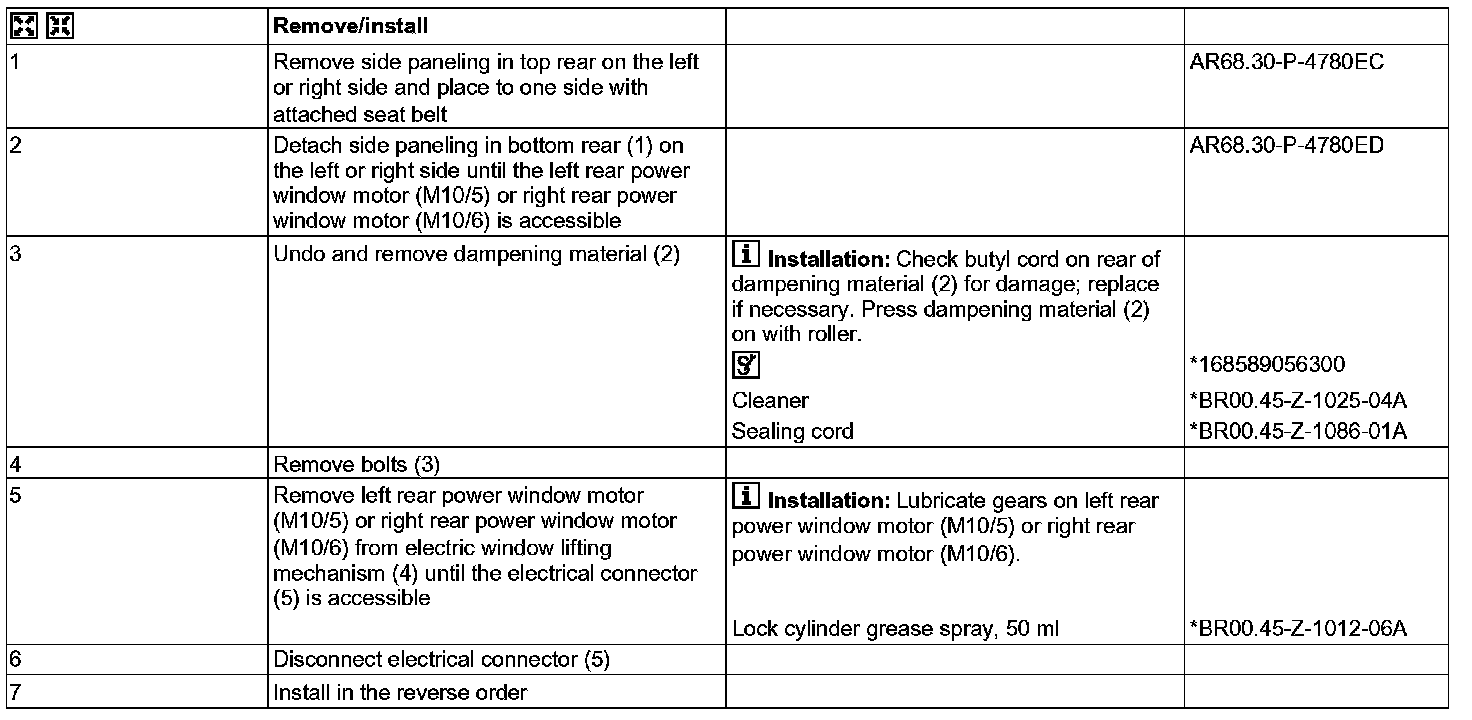

Steps 1 - 7:

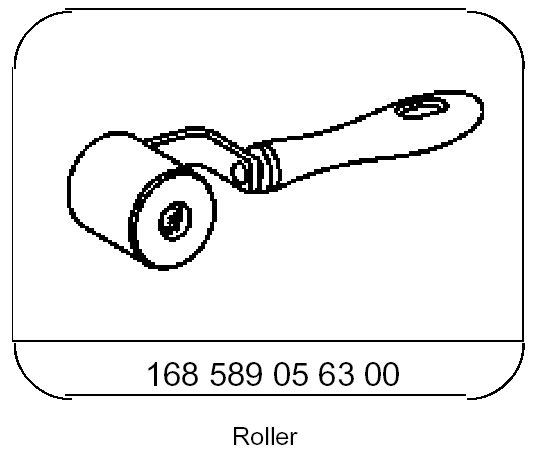

Special Tools:

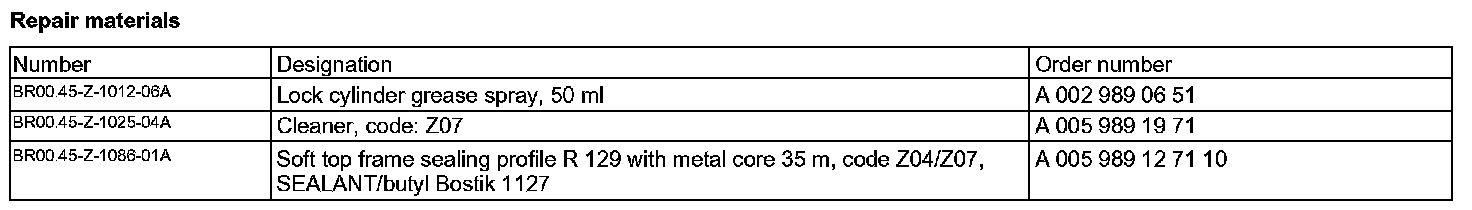

Repair Materials:
