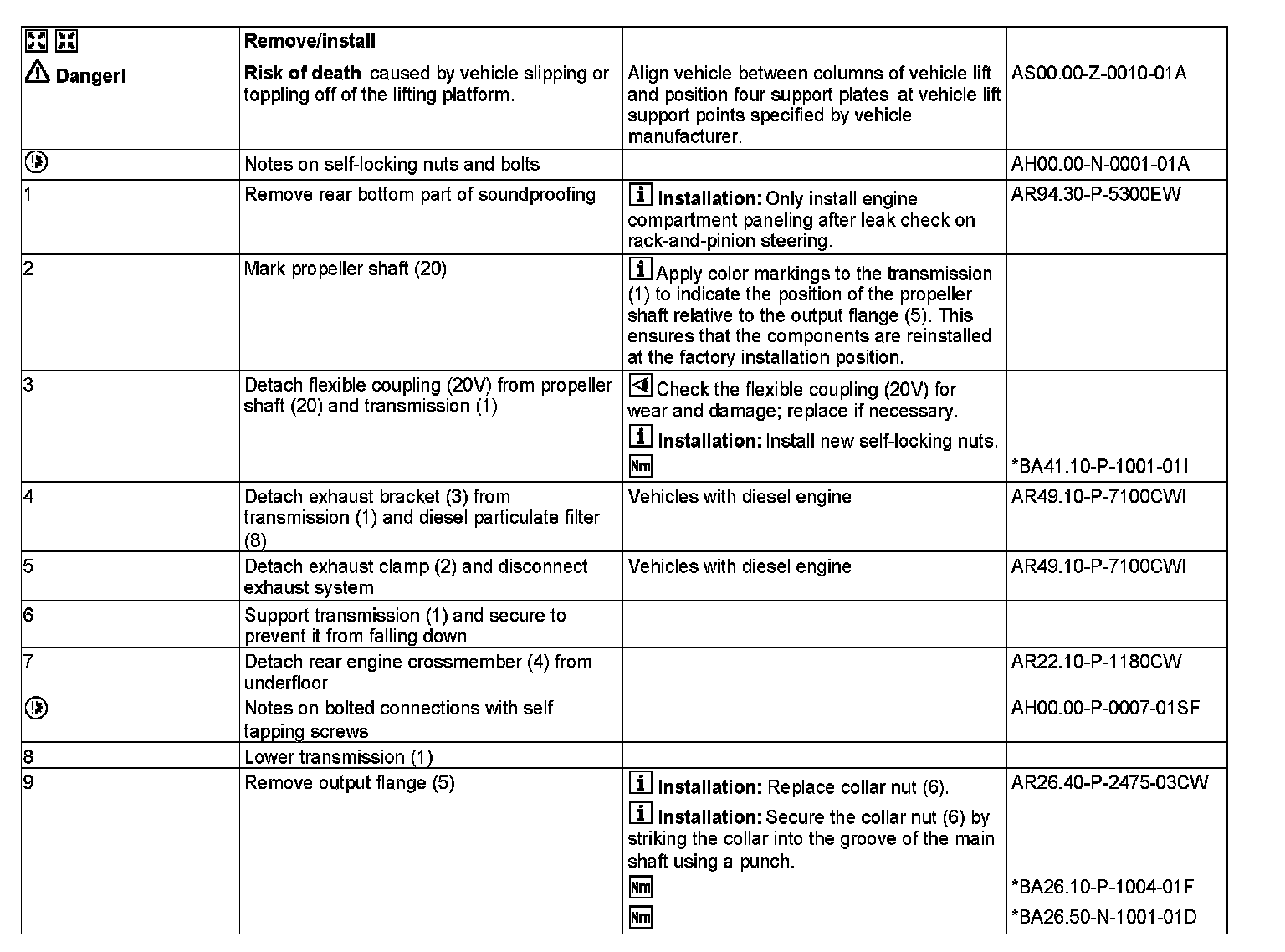

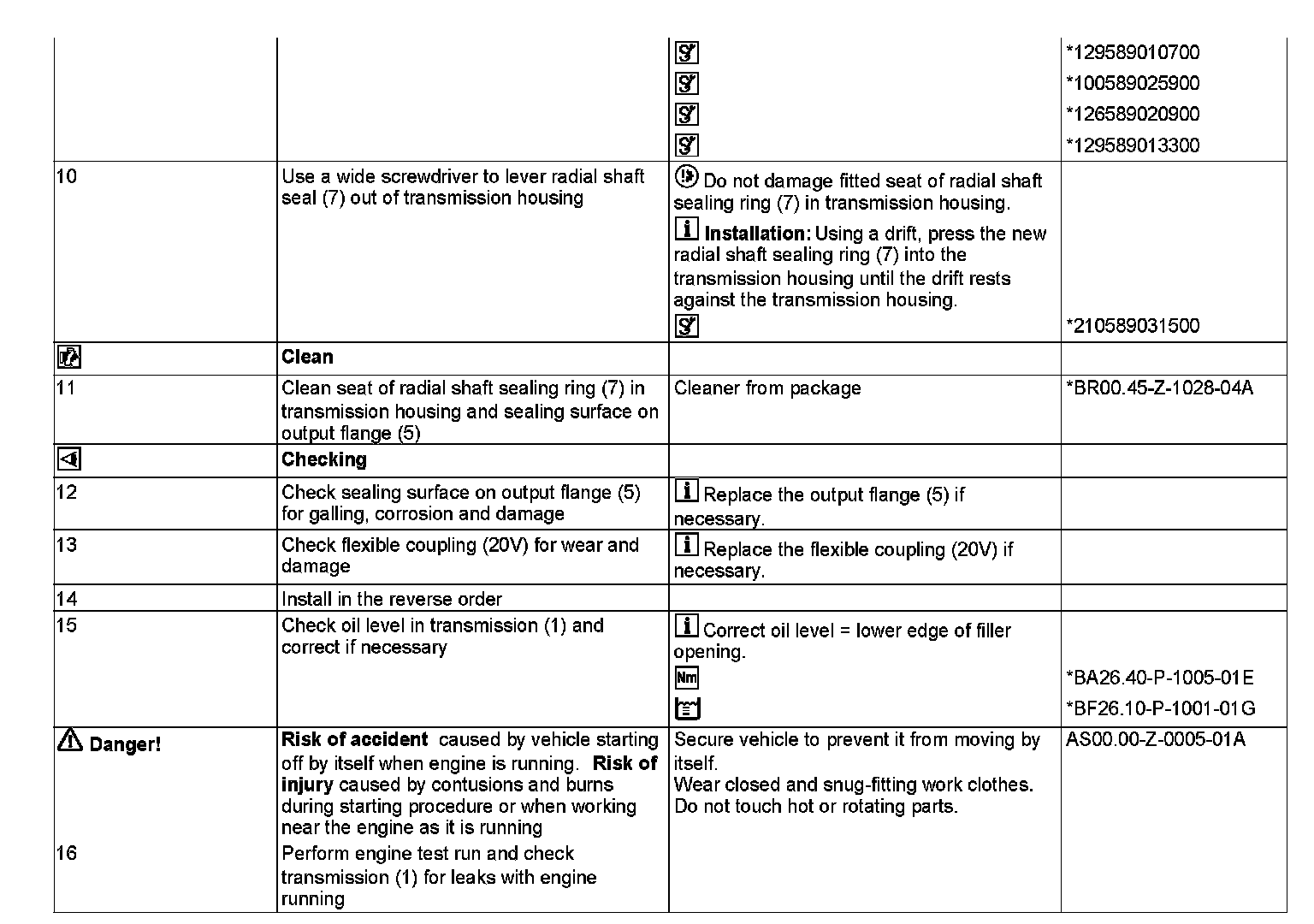

AR26.45-P-0070SA Remove/Install Radial Shaft Seal For Output Shaft

AR26.45-P-0070SA Remove/Install Radial Shaft Seal For Output Shaft
TRANSMISSION 711.6 in MODEL 204.0 /2 /3, 207

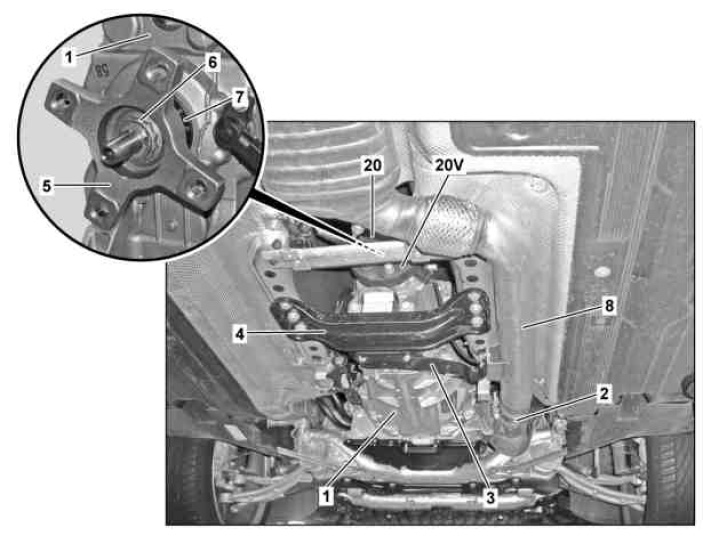

1 Transmission
2 Exhaust clamp
3 Exhaust bracket
4 Rear engine crossmember
5 Output flange
6 Collar nut
7 Radial shaft seal
8 Diesel particulate filter
20 Propeller shaft
20V Flex disk





























129 589 01 07 00
Pin wrench





126 589 02 09 00
Wrench socket





100 589 02 59 00
Connecting piece





129 589 01 33 00
Puller





210 589 03 15 00
Drift
