AR41.10-P-0070CWX Remove/Install Front Axle Transmission Propeller Shaft

AR41.10-P-0070CWX Remove/Install Front Axle Transmission Propeller Shaft
MODEL 204.0 /2 /9, 207.3
vehicles with 4MATIC





Shown on engine 272

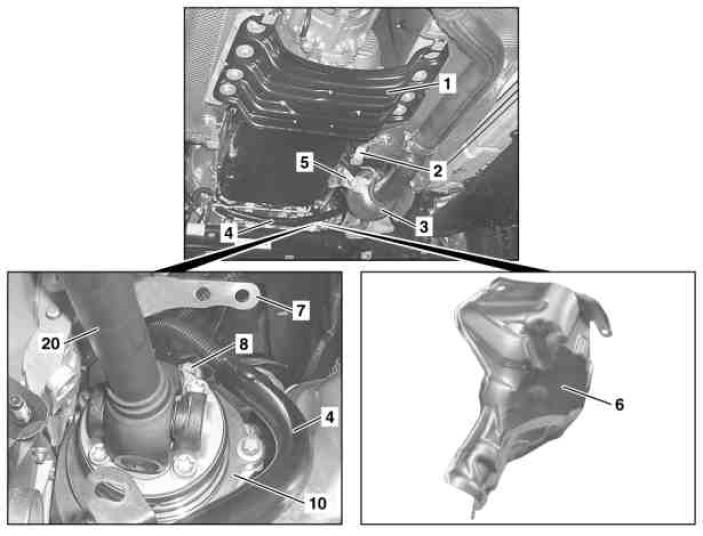

1 Rear engine crossmember
2 Bracket
3 Catalytic converter
5 Bracket
6 Heat shield
7 Bracket
8 Screw
10 Front axle transmission
20 Front axle transmission propeller shaft

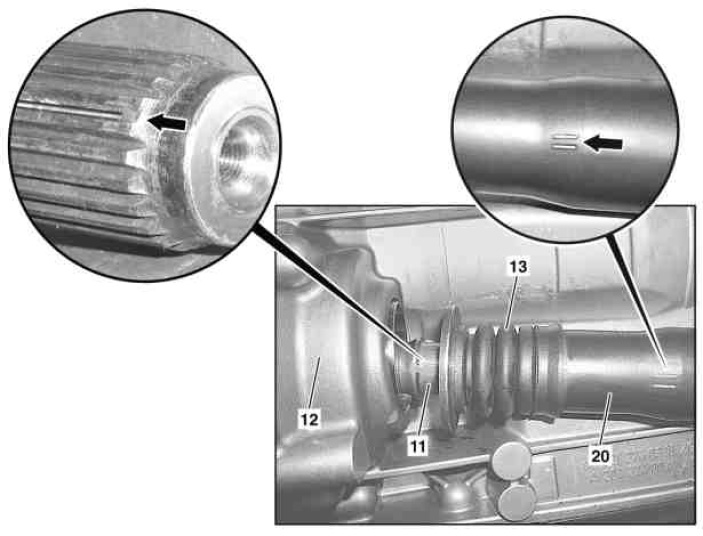

11 Splined profile for transfer case
12 Transfer case
13 Rubber boot
20 Front axle transmission propeller shaft

Arrows Marking or closed groove

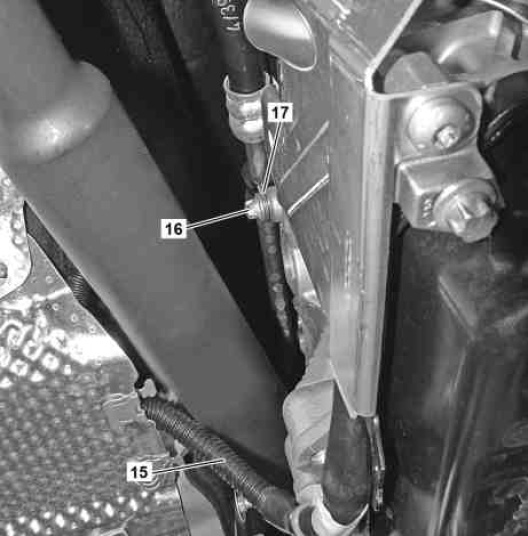

15 Electrical line
16 Screw
17 Retaining clamp for supply line





20 Front axle transmission propeller shaft

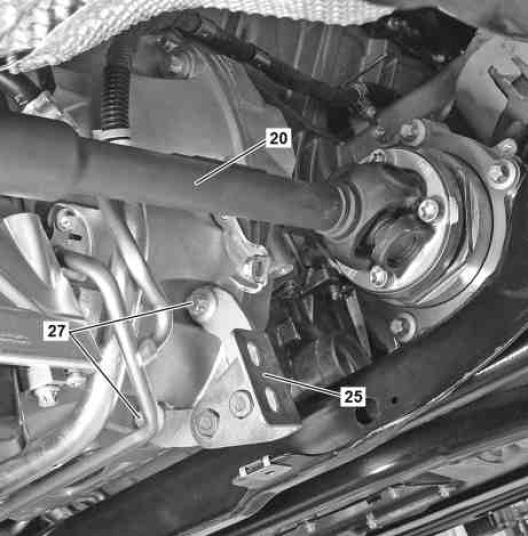

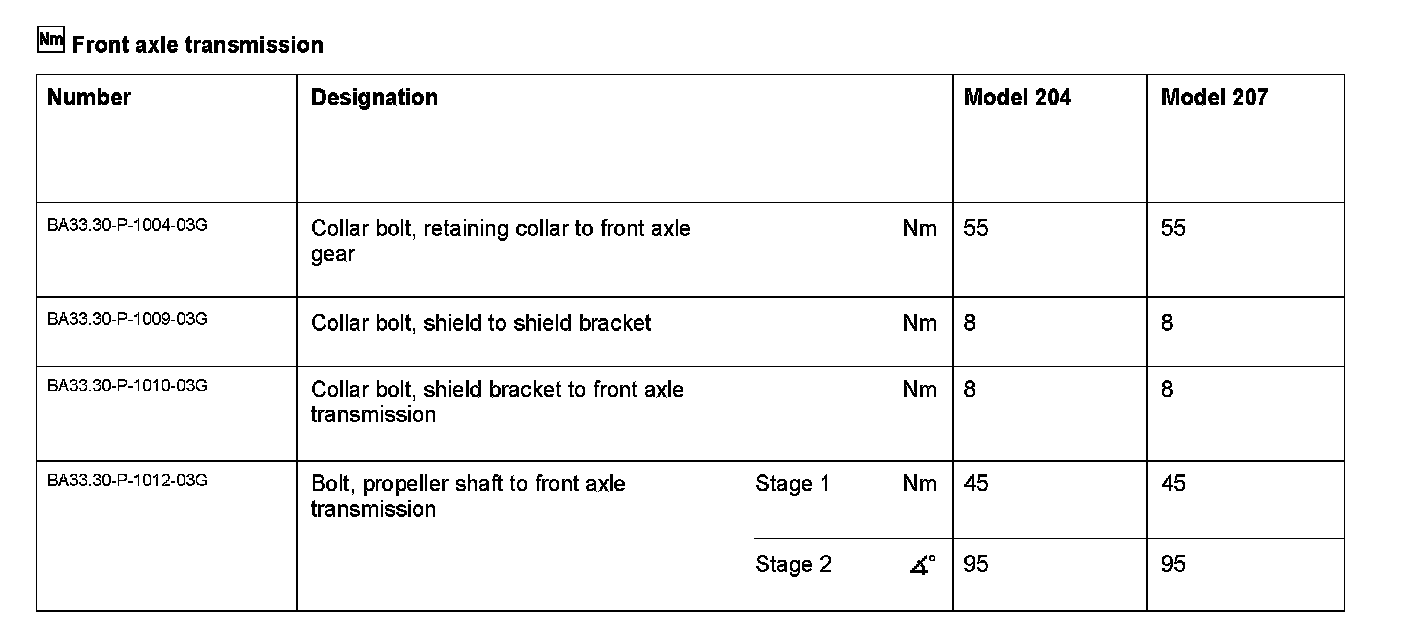

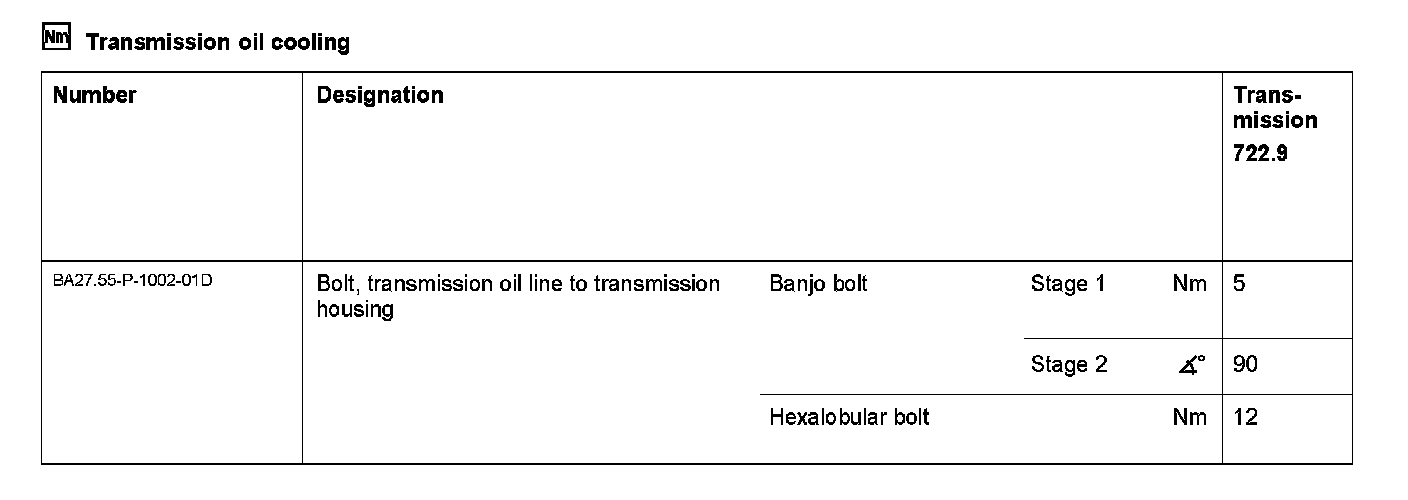

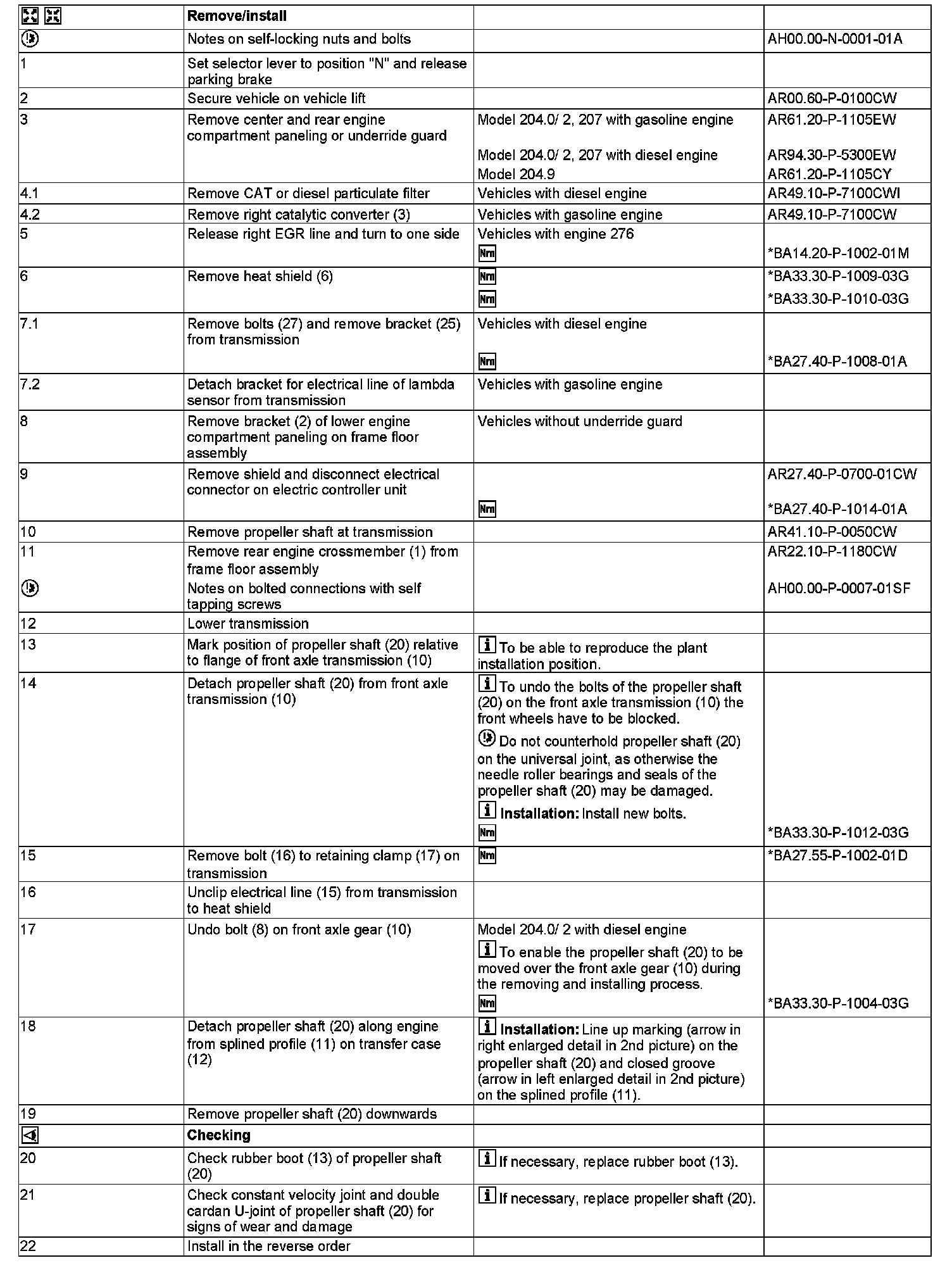

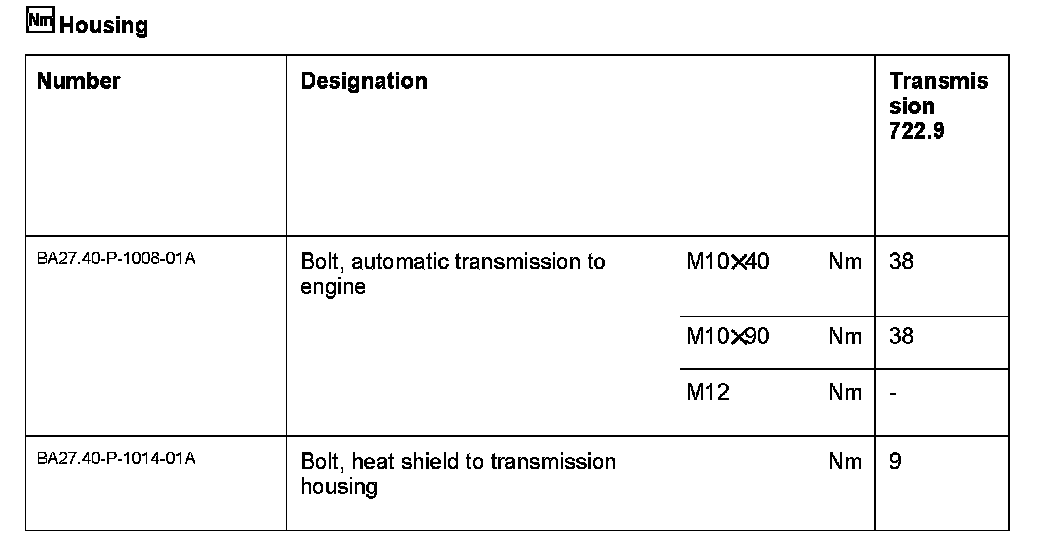

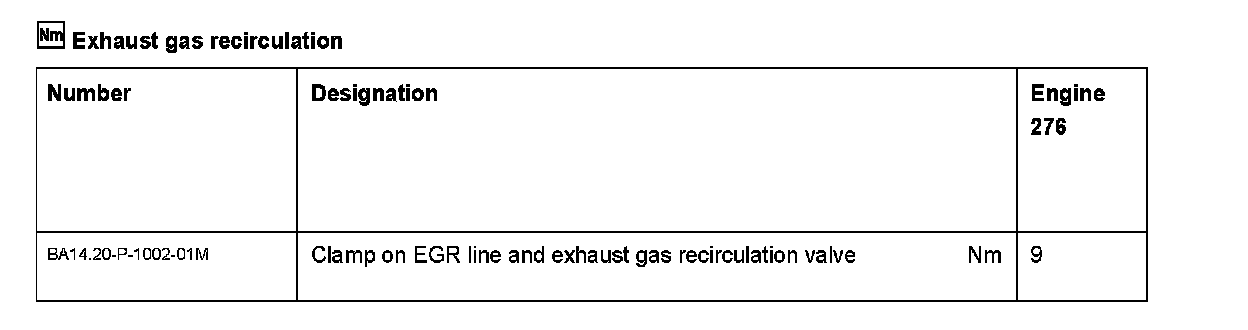

25 Bracket for diesel particulate filter
27 Bolts
