AR41.10-P-0070CWX Remove/Install Front Axle Differential Propeller Shaft



AR41.10-P-0070CWX Remove/install front axle differential propeller shaft

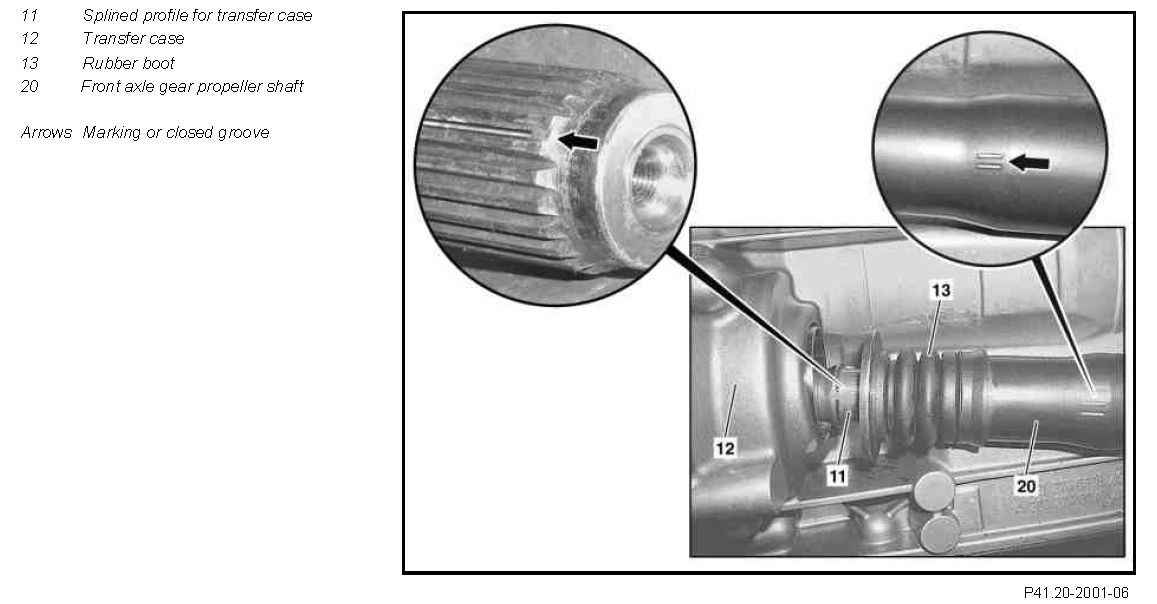

Component Identification:

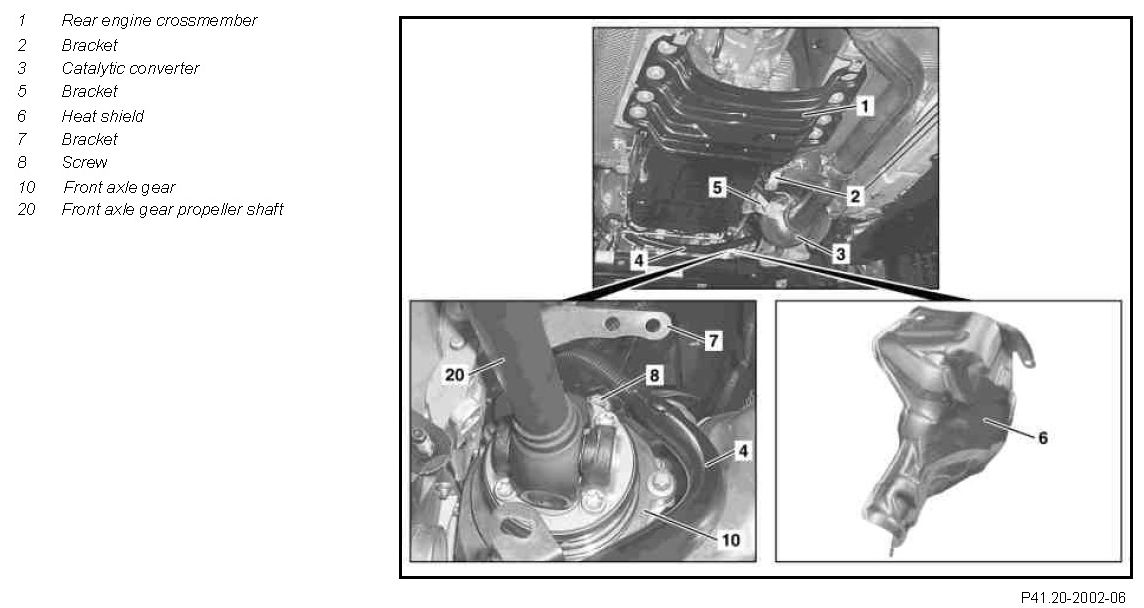

Component Identification:

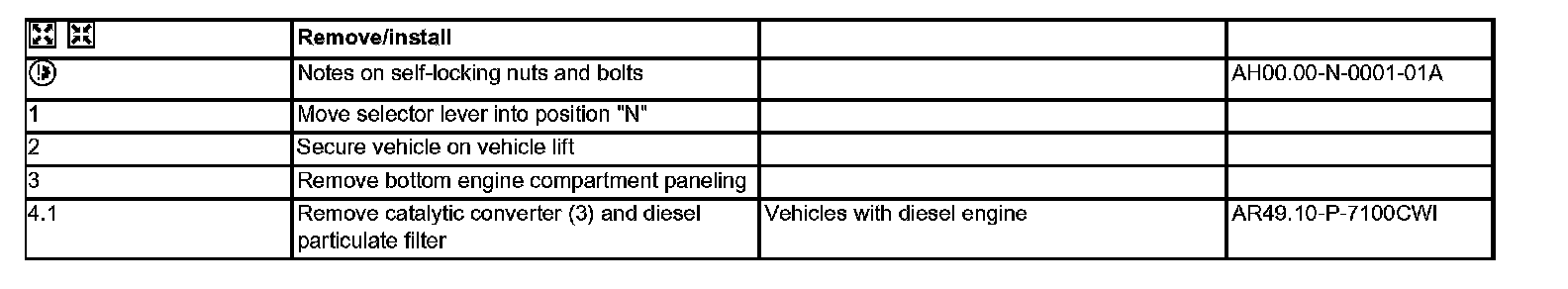

Remove/install Steps 1-4.1:

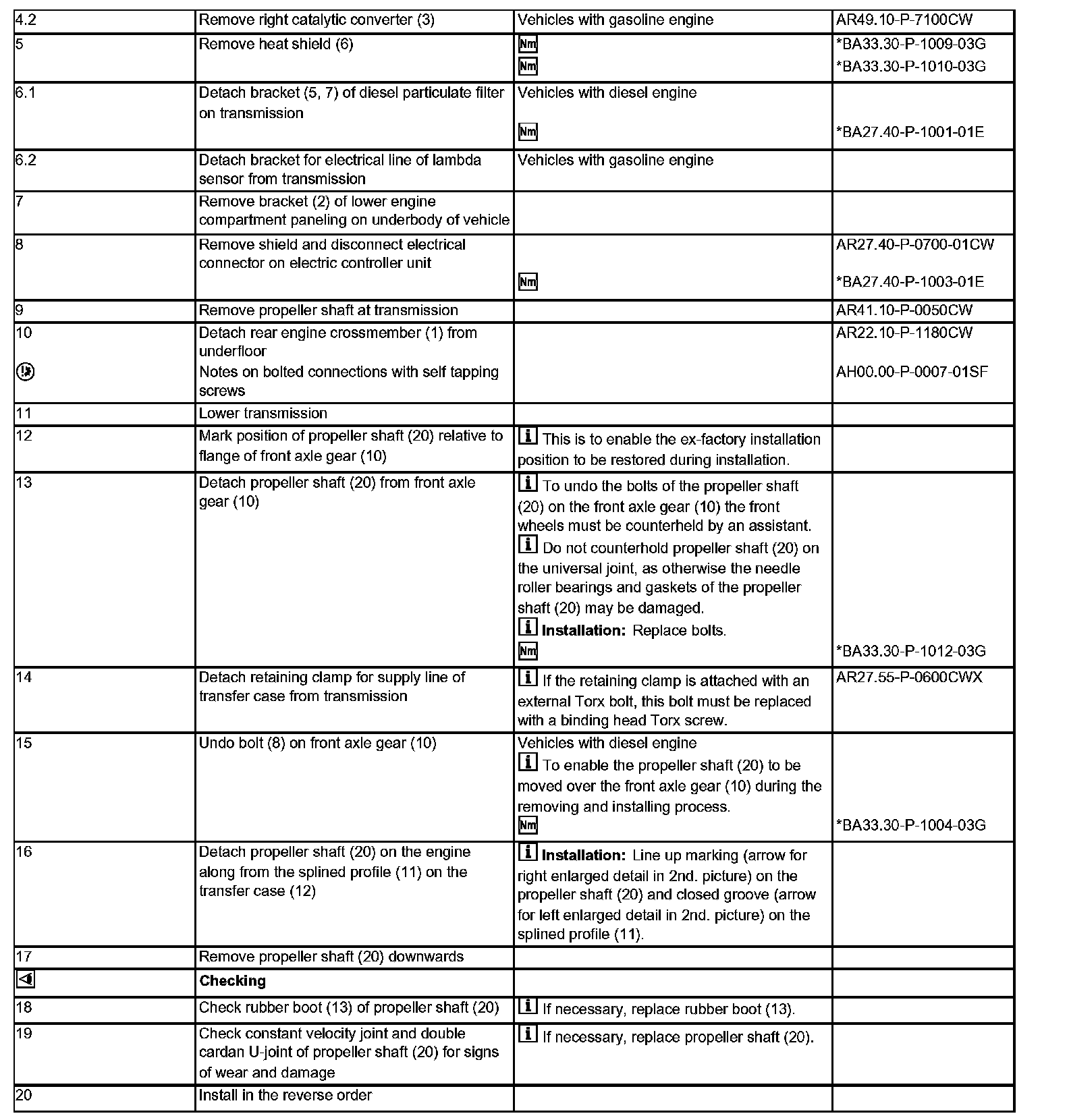

Remove/install Steps 4.2-20:

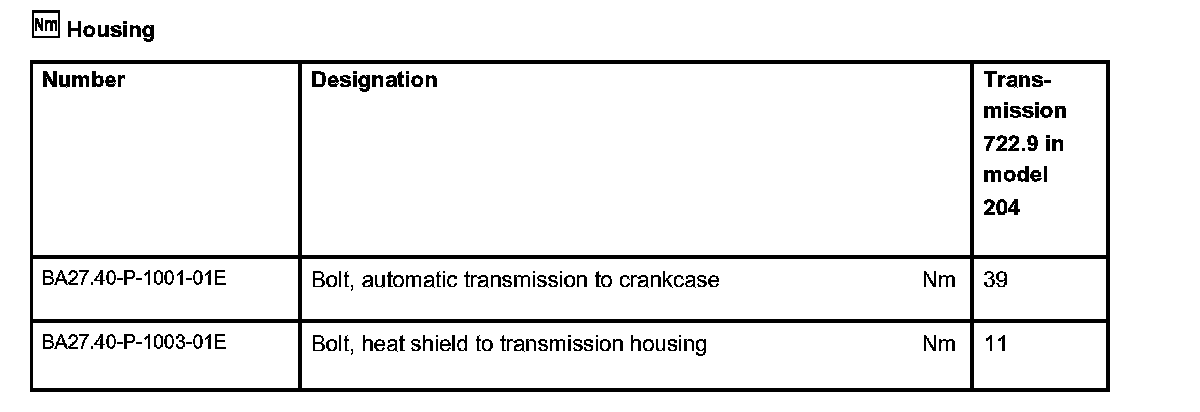

Housing:

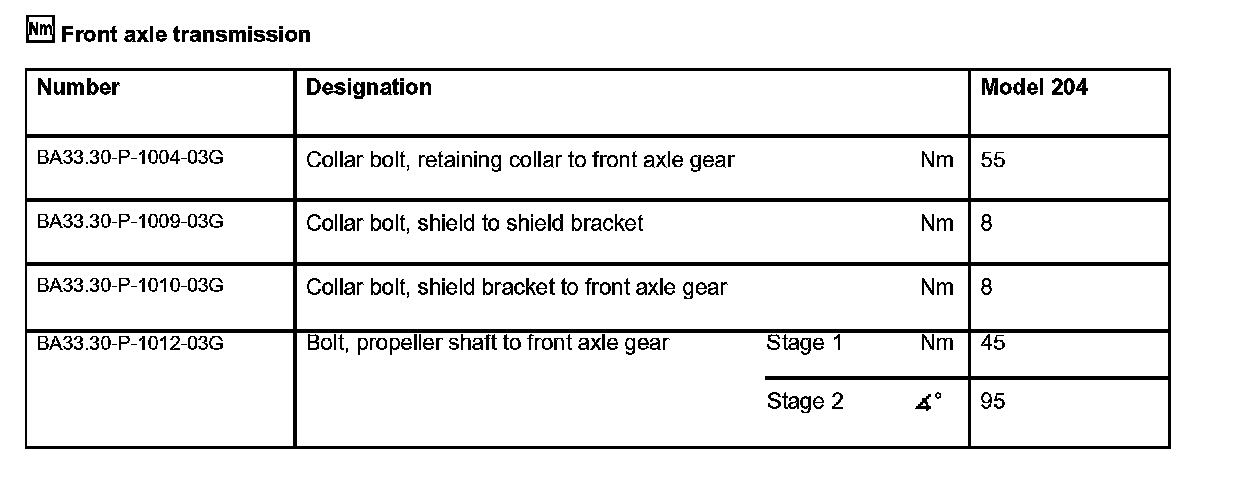

Front axle transmission:
