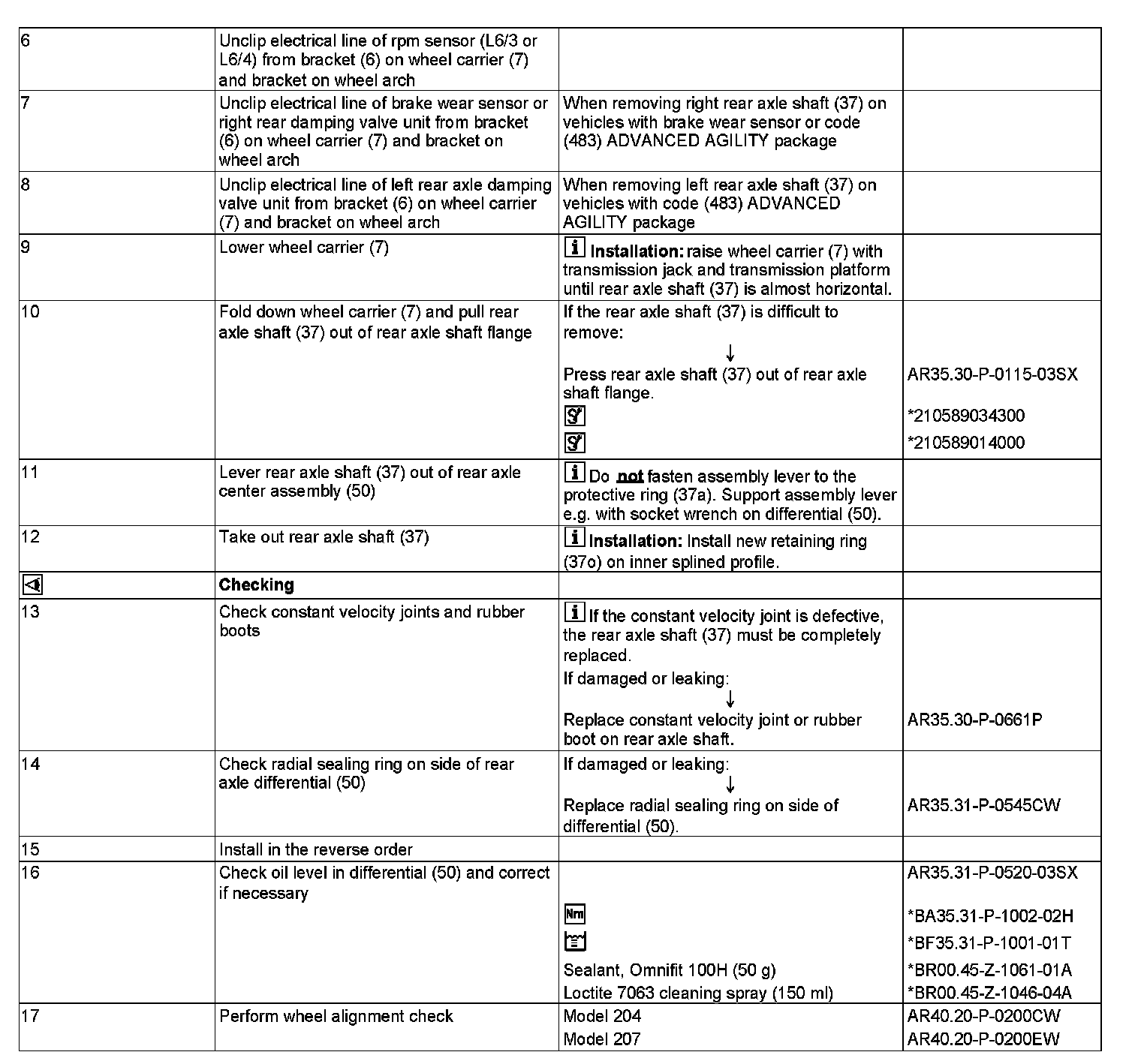

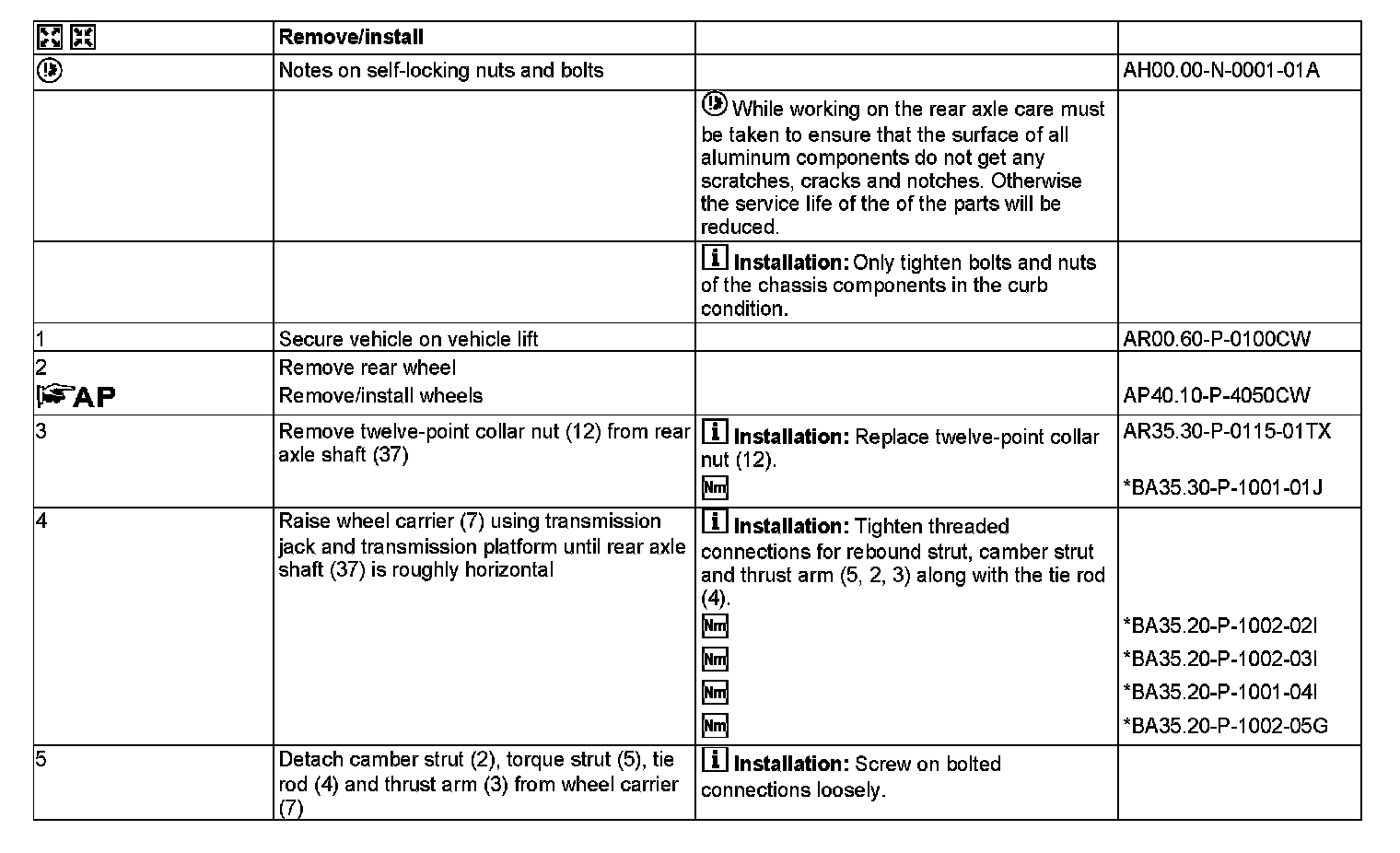

AR35.30-P-0620CW Remove/Install Rear Axle Shaft

AR35.30-P-0620CW Remove/Install Rear Axle Shaft
MODEL 204, 207

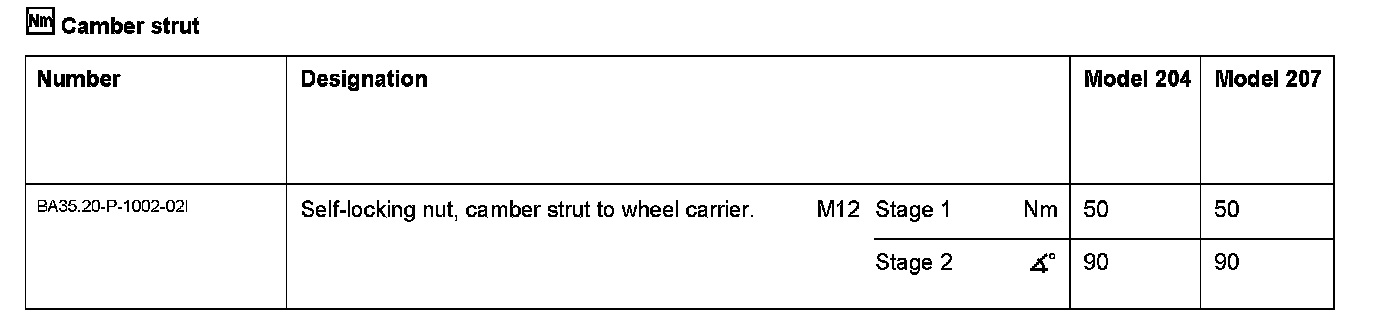

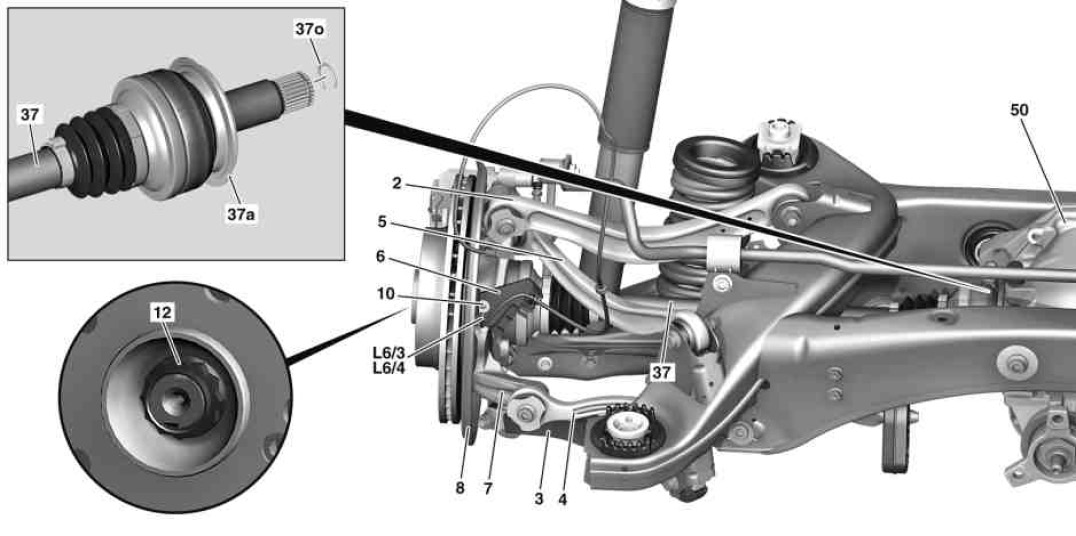

2 Camber strut

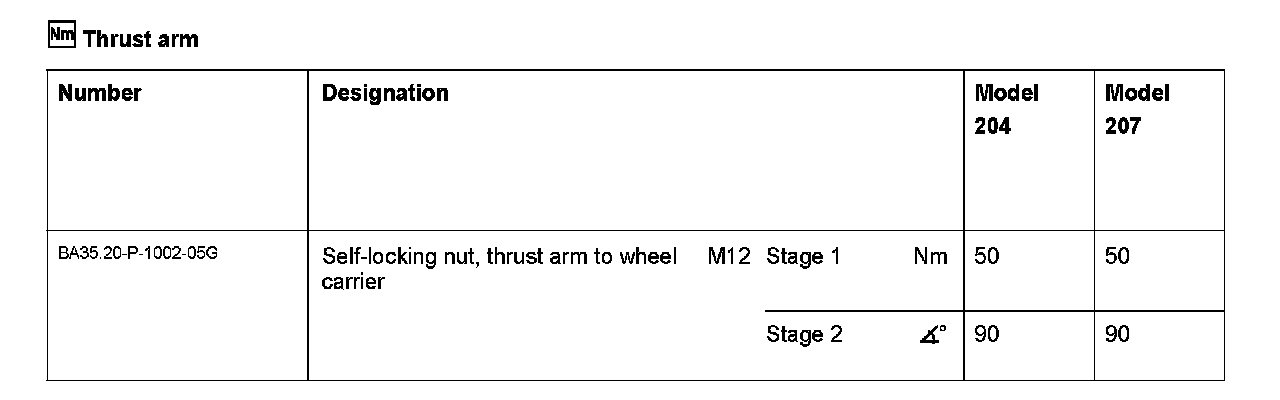

3 Thrust arm

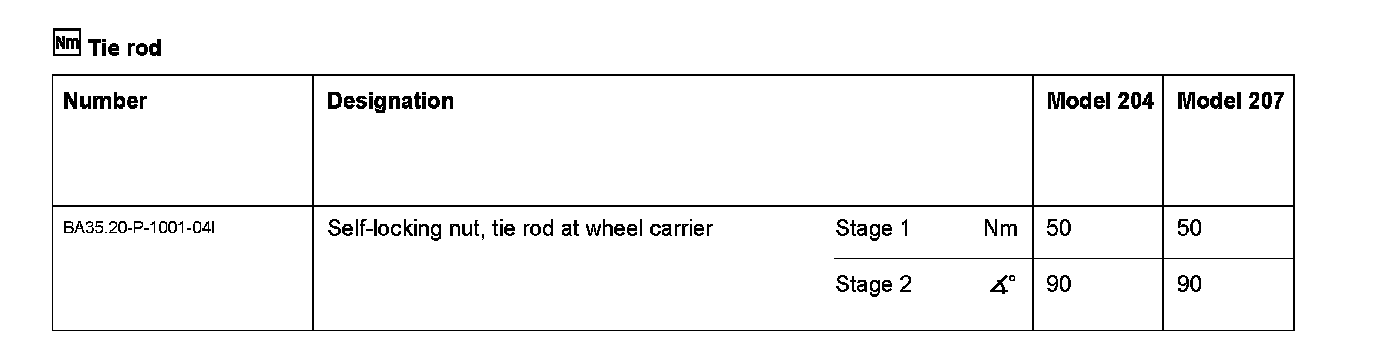

4 Tie rod
5 Torque strut
6 Bracket
7 Wheel carrier
10 Screw
12 Twelve-point collar nut

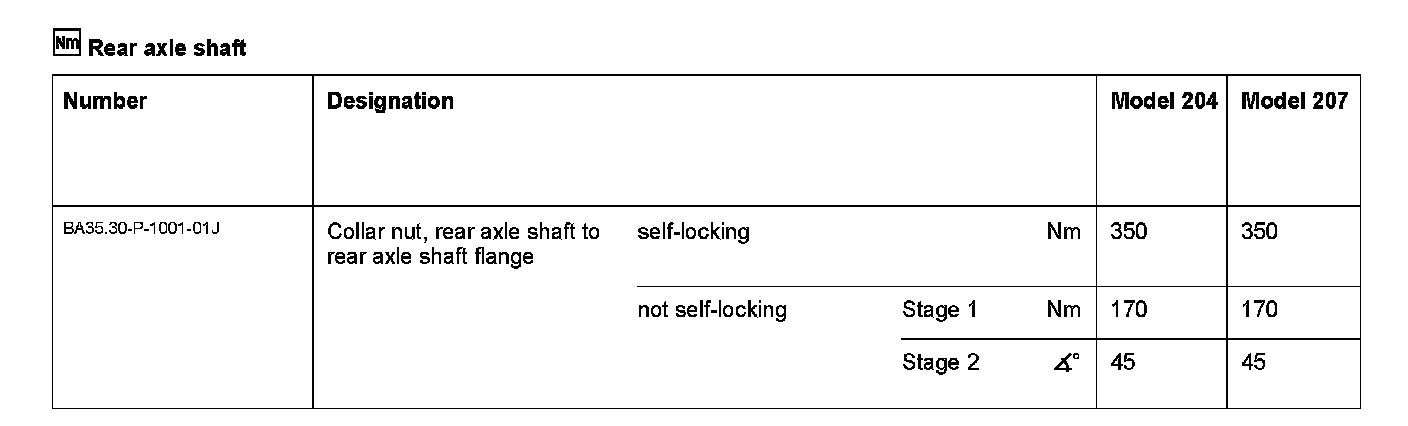

37 Rear axle shaft
37a Protective ring
37o Retaining ring

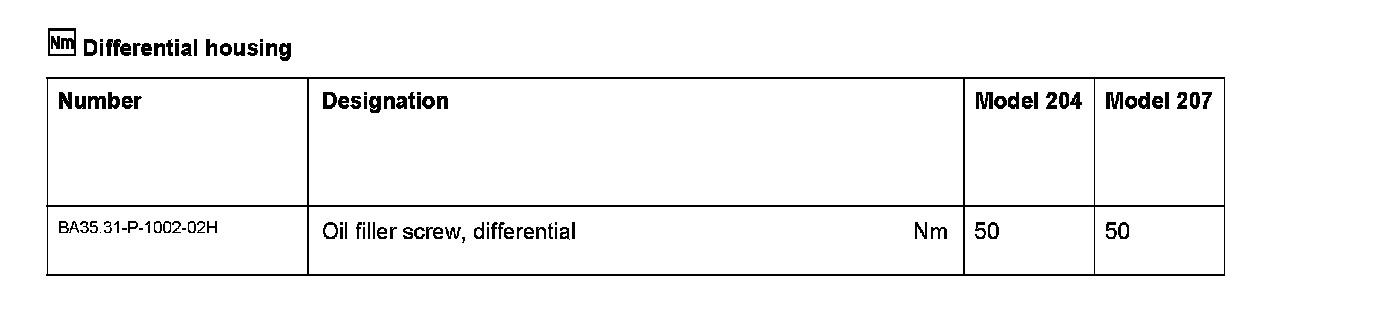

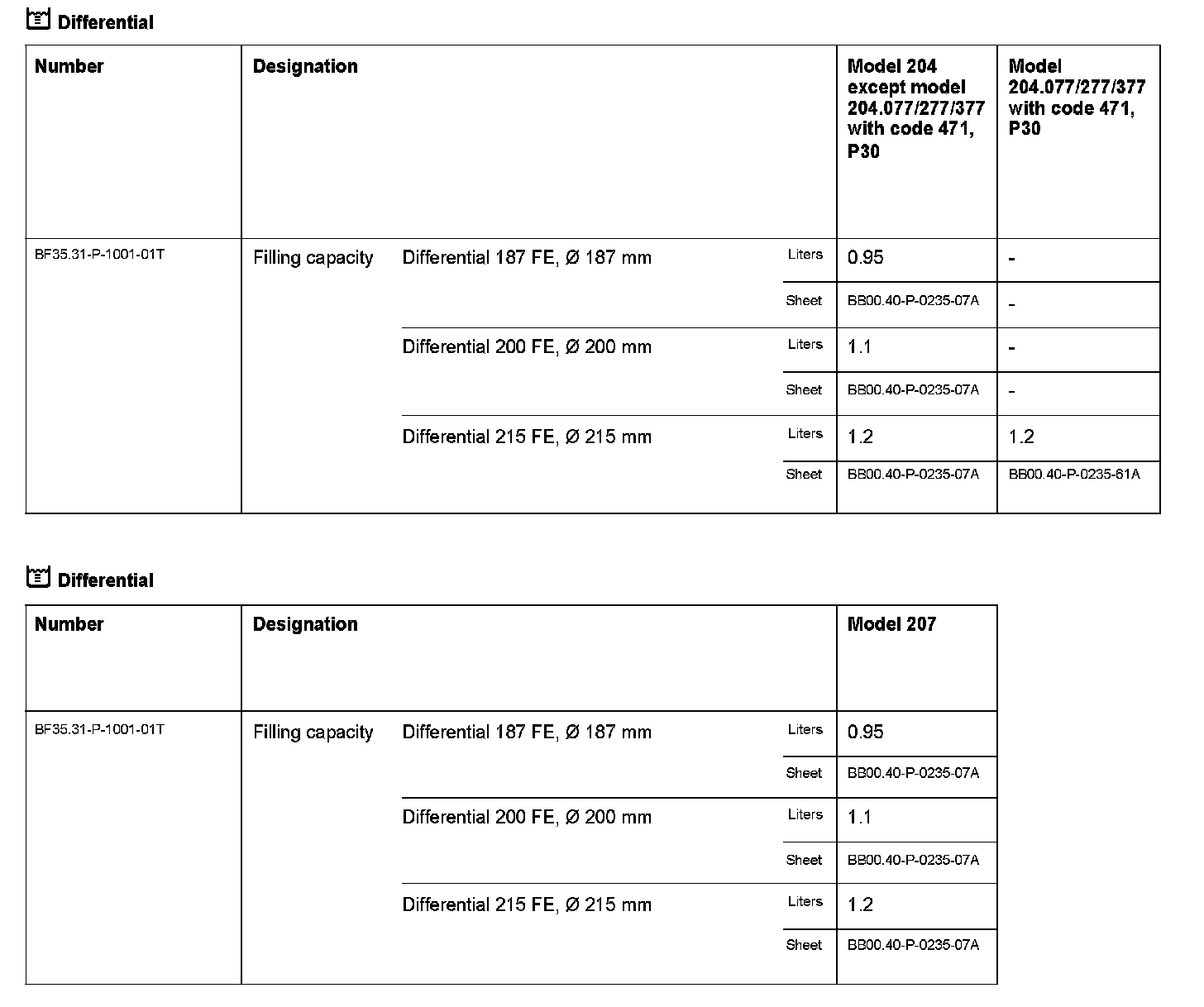

50 Differential

L6/3 Left rear axle speed sensor
L6/4 Right rear axle speed sensor



































210 589 03 43 00
Extraction and insertion tool





210 589 01 40 00
Bracket
