AR35.31-P-0520CW Remove/Install Rear Axle Differential

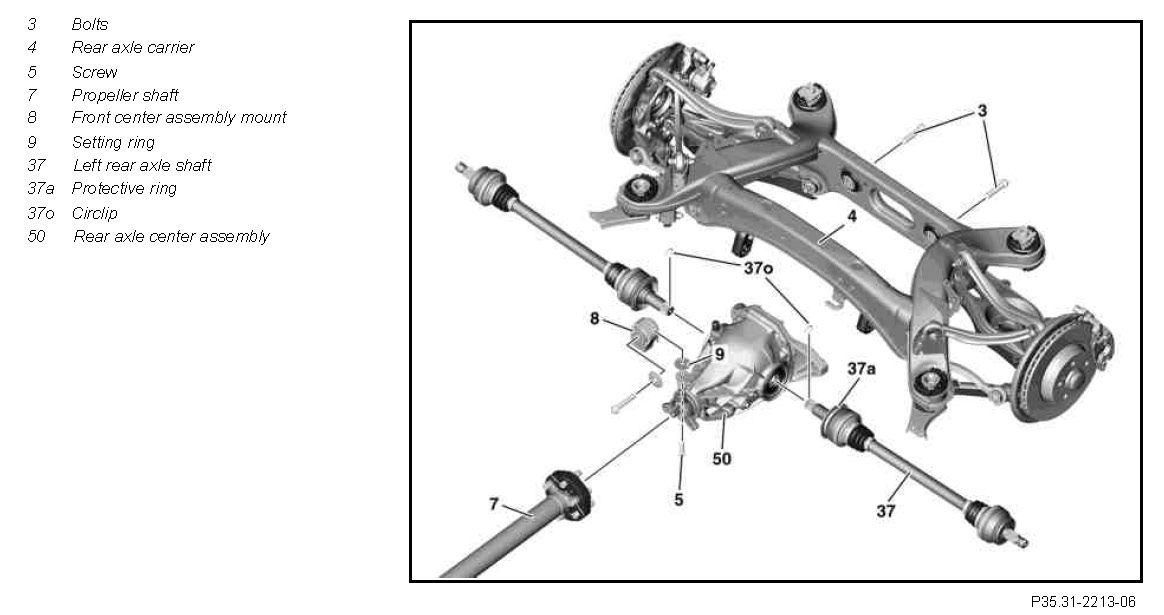

Component Identification:

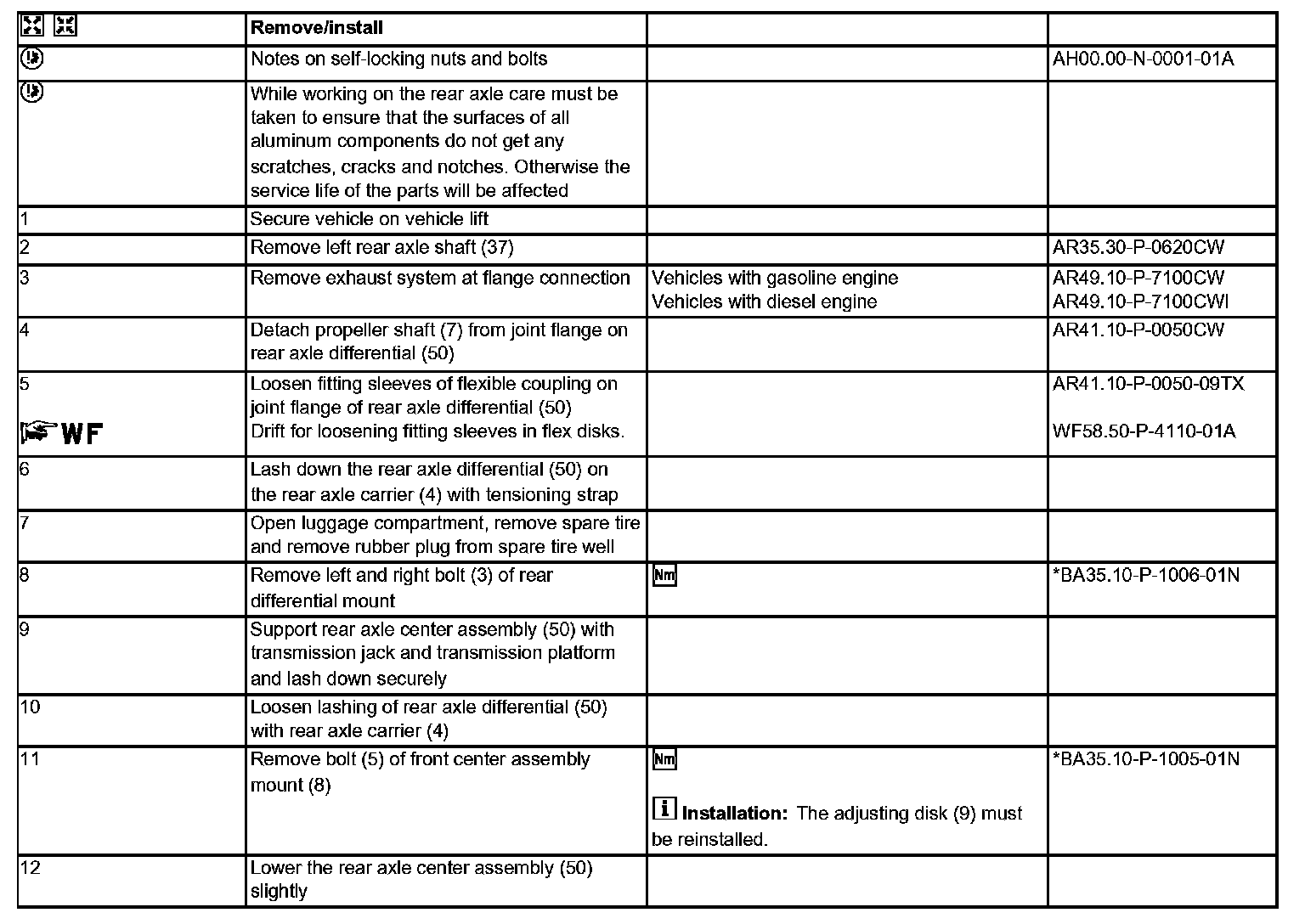

Remove/install Steps 1-12:

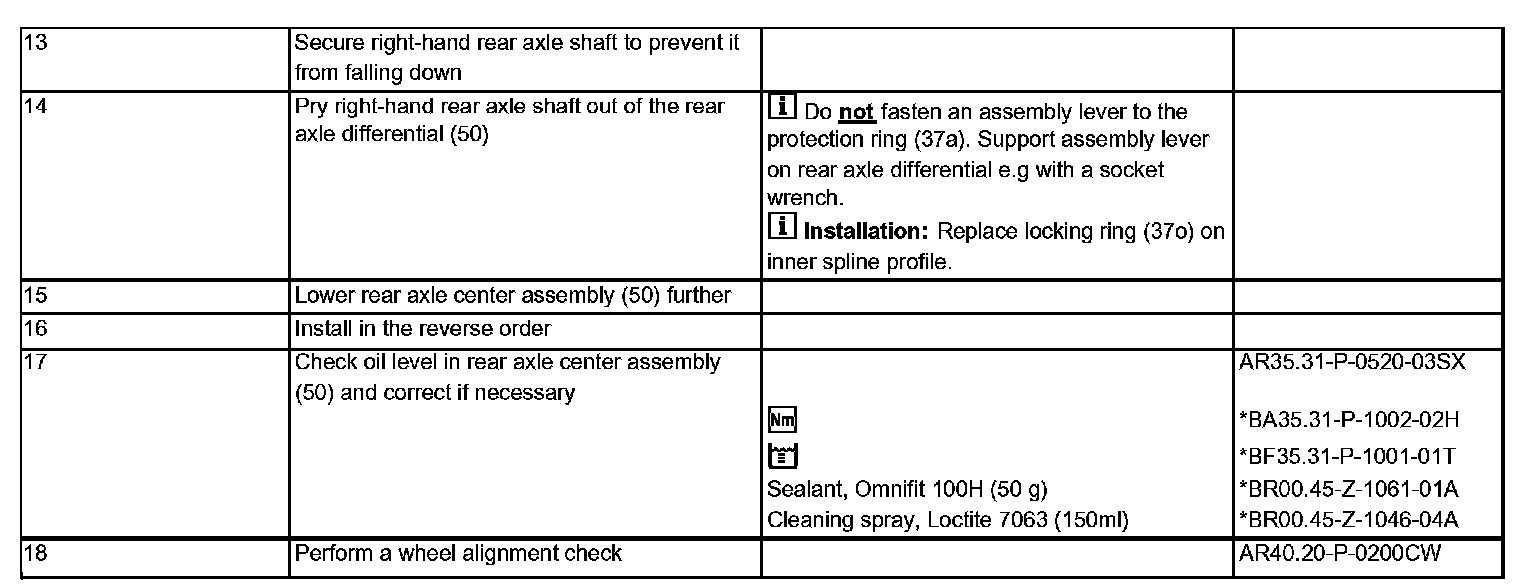

Remove/install Steps 13-18:

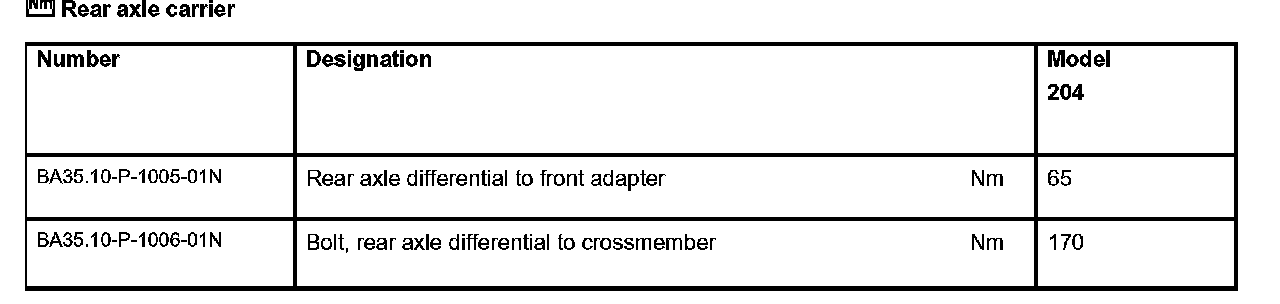

Rear axle carrier:

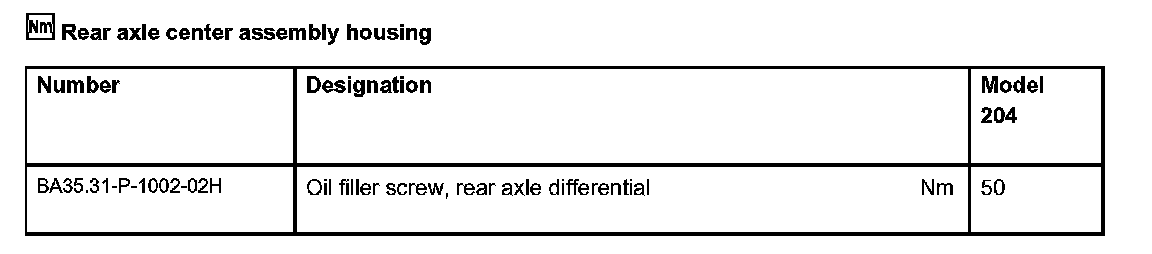

Rear axle center assembly housing:

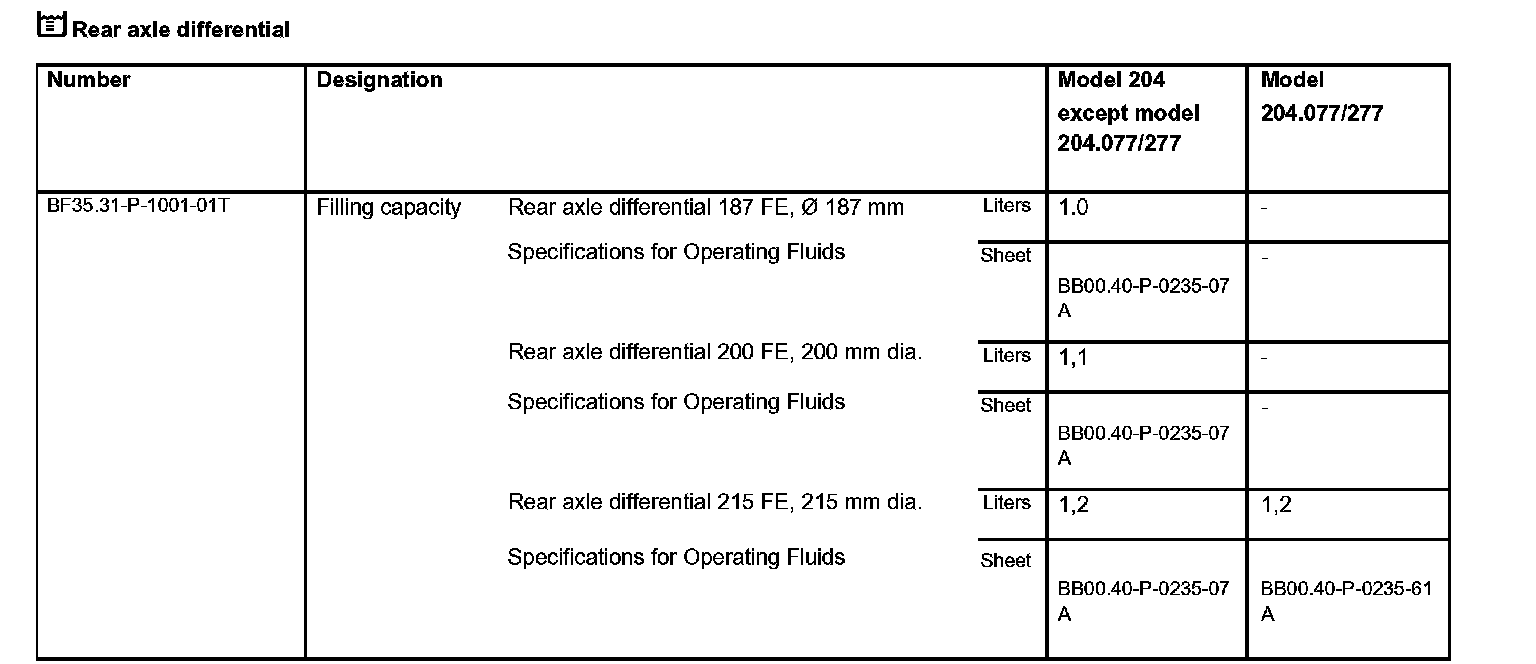

Rear axle differential:

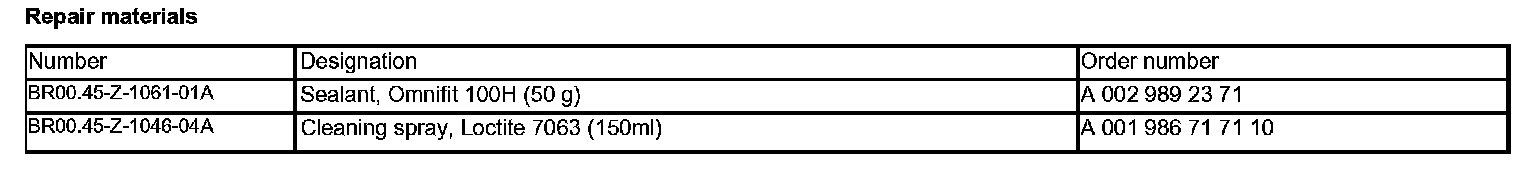

Repair materials:
