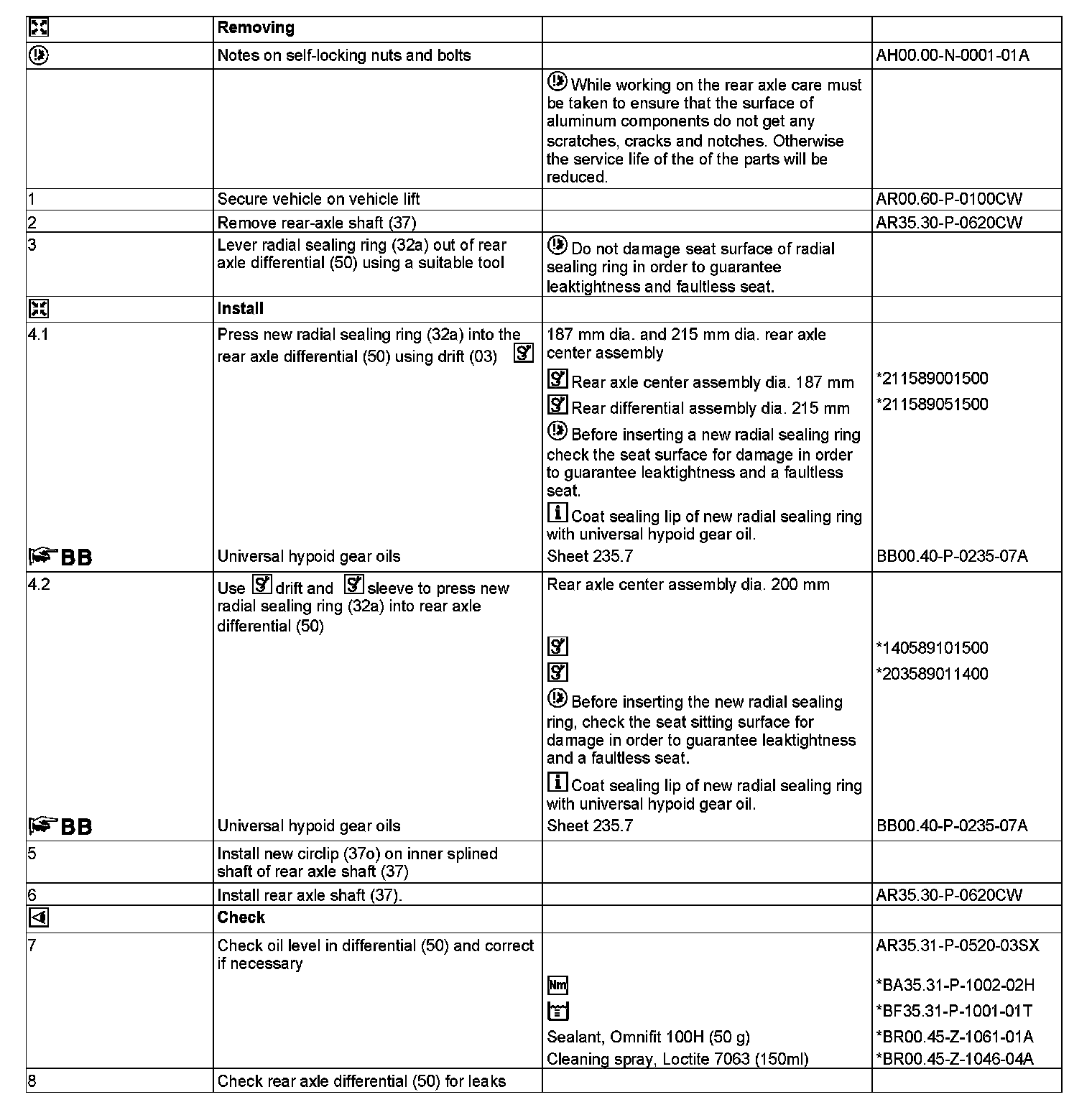

AR35.31-P-0545CW Replace Radial Sealing Rings on Side of Rear Axle Center Assembly

AR35.31-P-0545CW Replace Radial Sealing Rings On Side Of Rear Axle Center Assembly
MODEL 204, 207

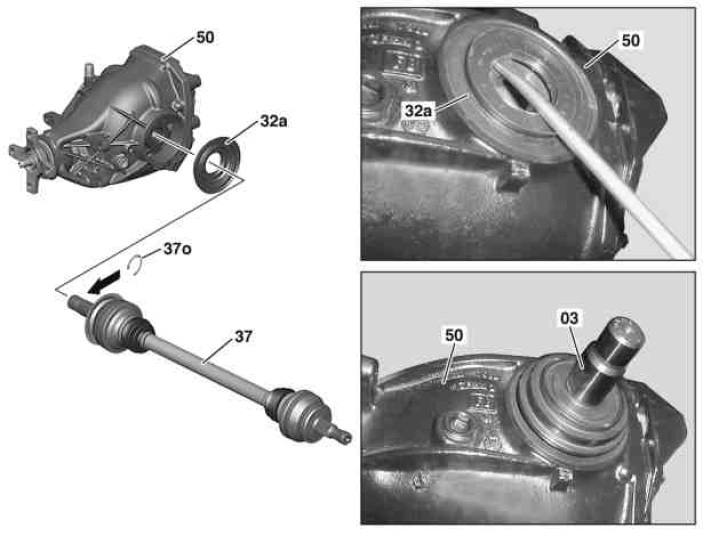

03 Drift
32a Radial sealing ring
37 Rear axle shaft
37o Circlip
50 Rear axle center assembly

















211 589 05 15 00
Drift





211 589 00 15 00
Drift





140 589 10 15 00
Drift





203 589 01 14 00
Sleeve
