Home >> Mercedes Benz >> 2012 >> E 350 Coupe (207.359) V6-3.5L (276.957) >> Repair and Diagnosis >> Transmission and Drivetrain >> Differential Assembly >> Differential Mount >> Service and Repair >> AR35.10-P-0050CW Remove/Install Rear Rubber Mounts For Differential Mount In Rear Axle Carrier

AR35.10-P-0050CW Remove/Install Rear Rubber Mounts For Differential Mount In Rear Axle Carrier



AR35.10-P-0050CW Remove/install rear rubber mounts for differential mount in rear axle carrier

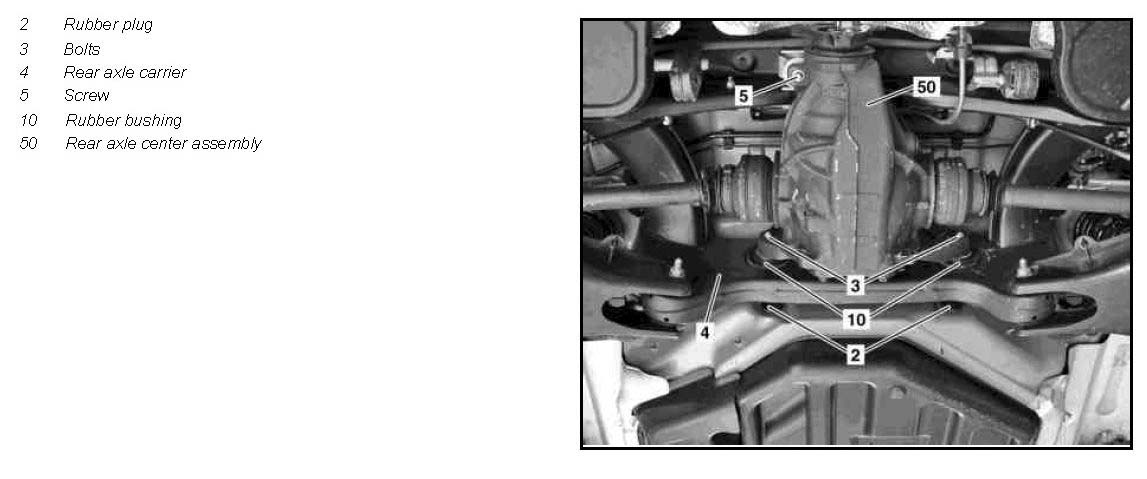

Component Identification:




Component Identification:

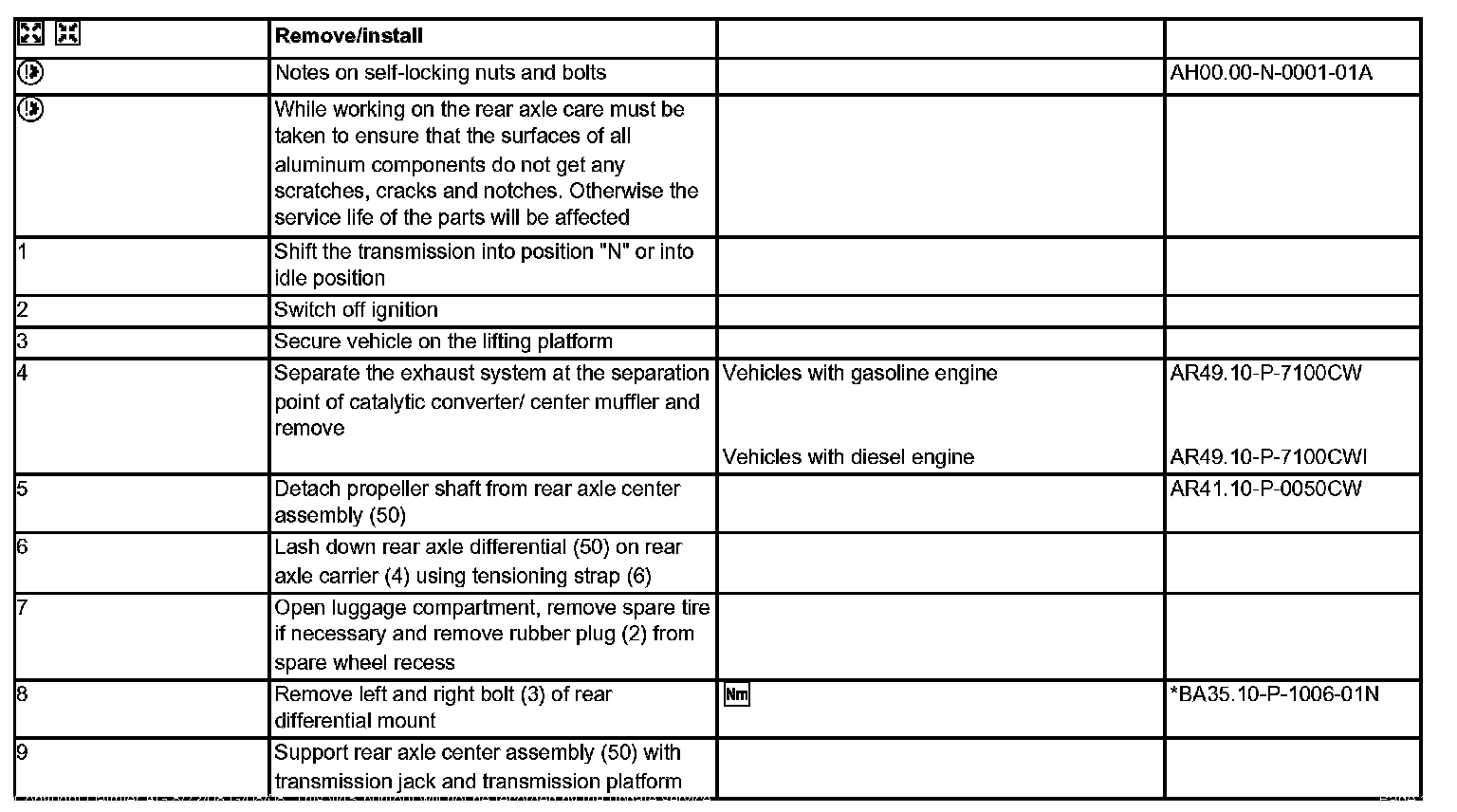

Remove/install Steps 1-9:




Remove/install Steps 10-13:

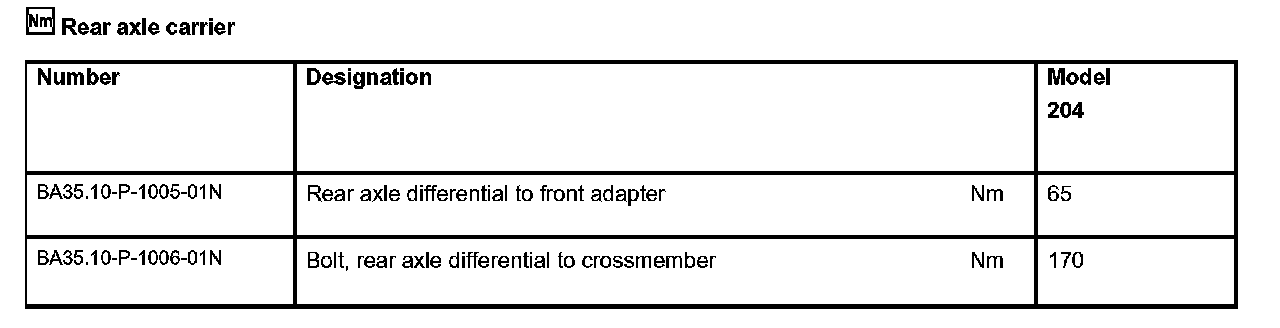

Rear axle carrier:

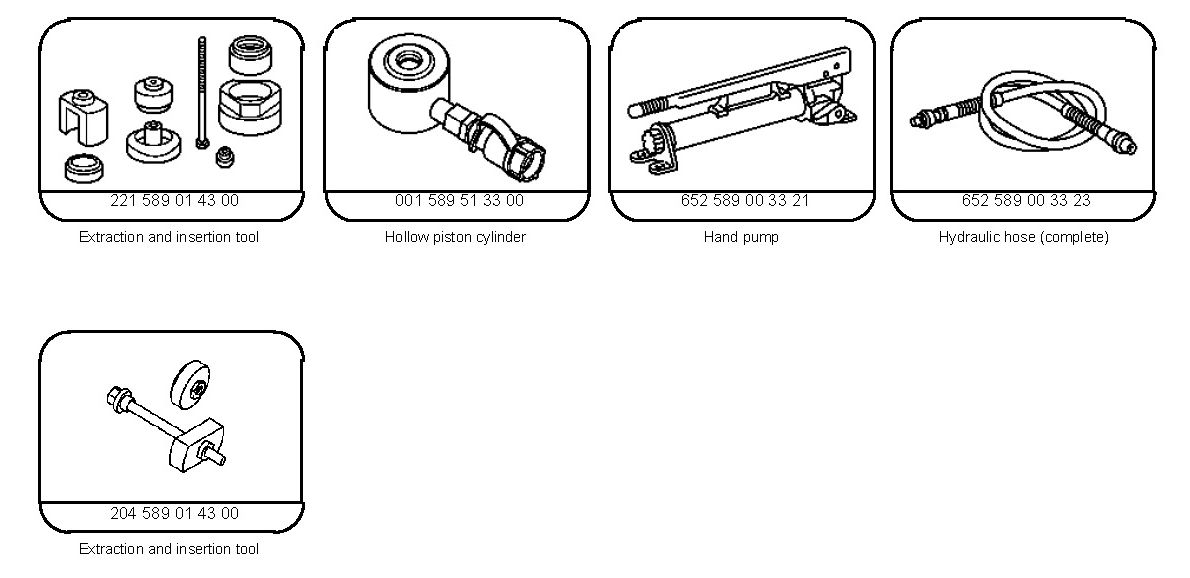

Special Tools:
