Rear Axle
AR35.31-P-0554CW Remove/install end cover at rear axle differential

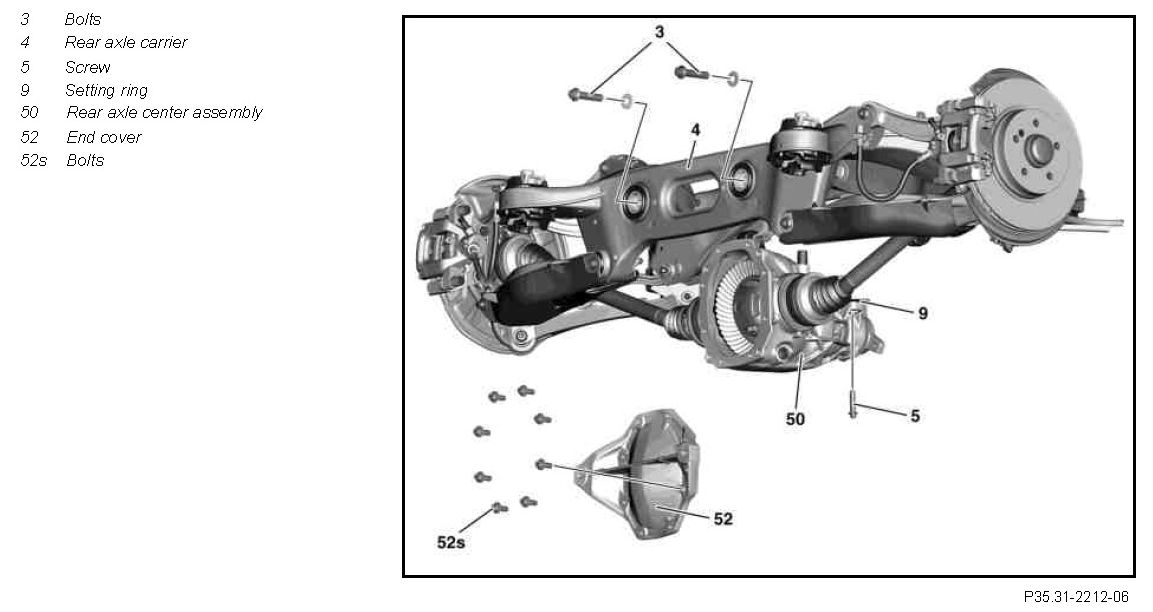

Component Identification:

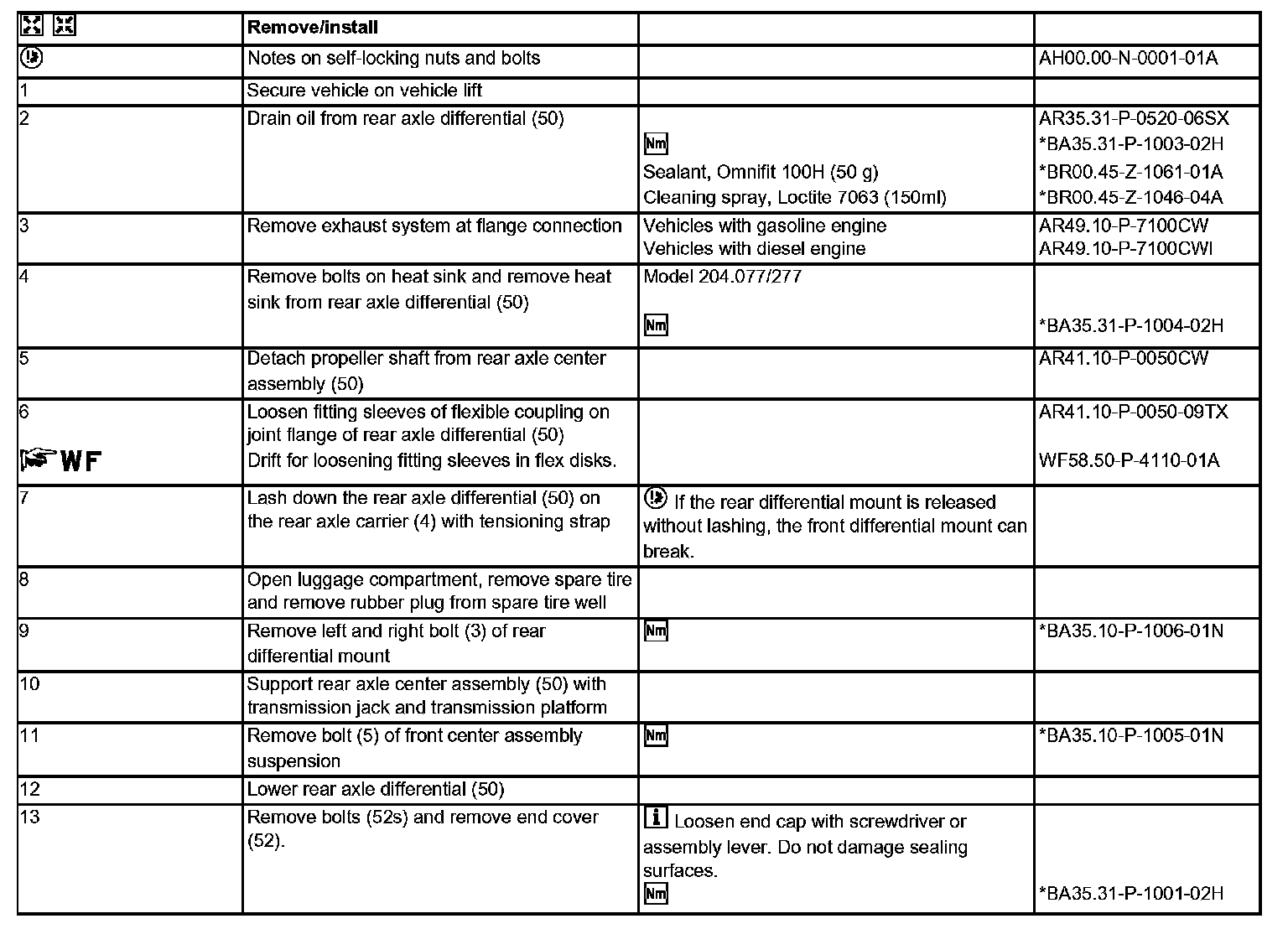

Remove/install Steps 1-13:

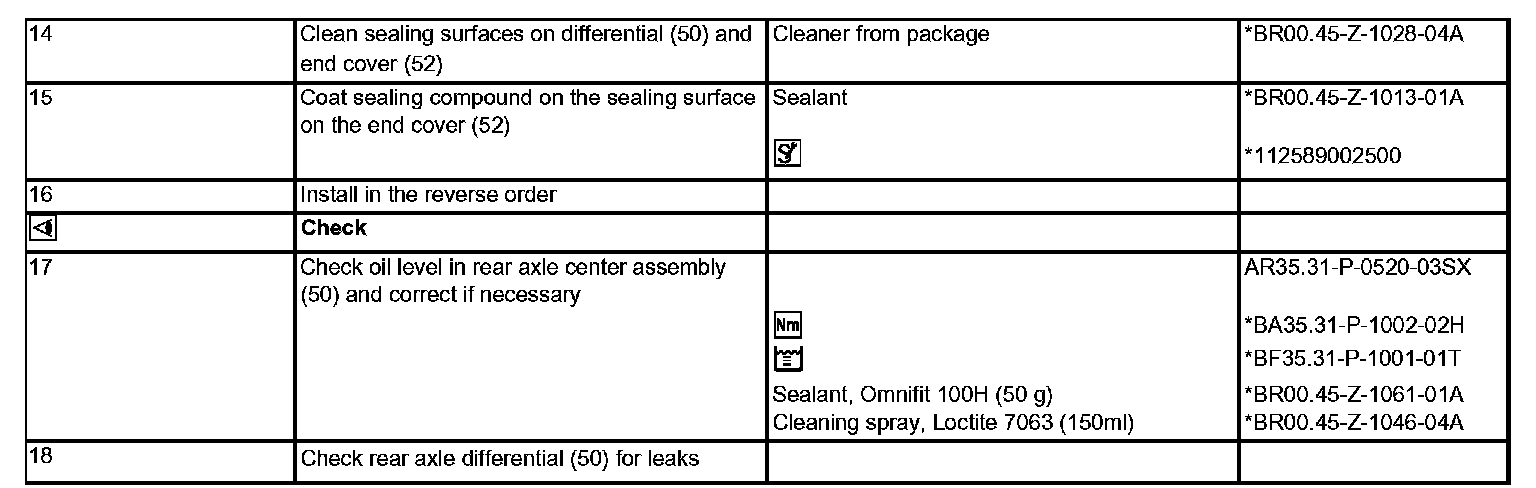

Remove/install Steps 14-18:

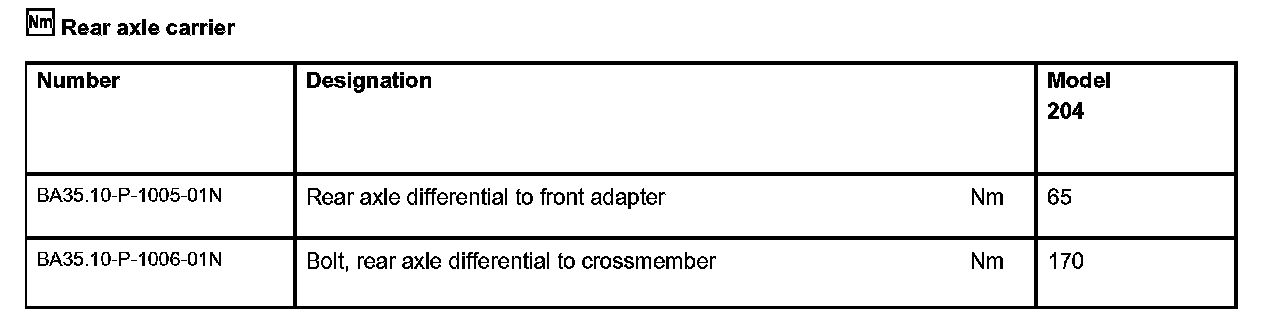

Rear axle carrier:

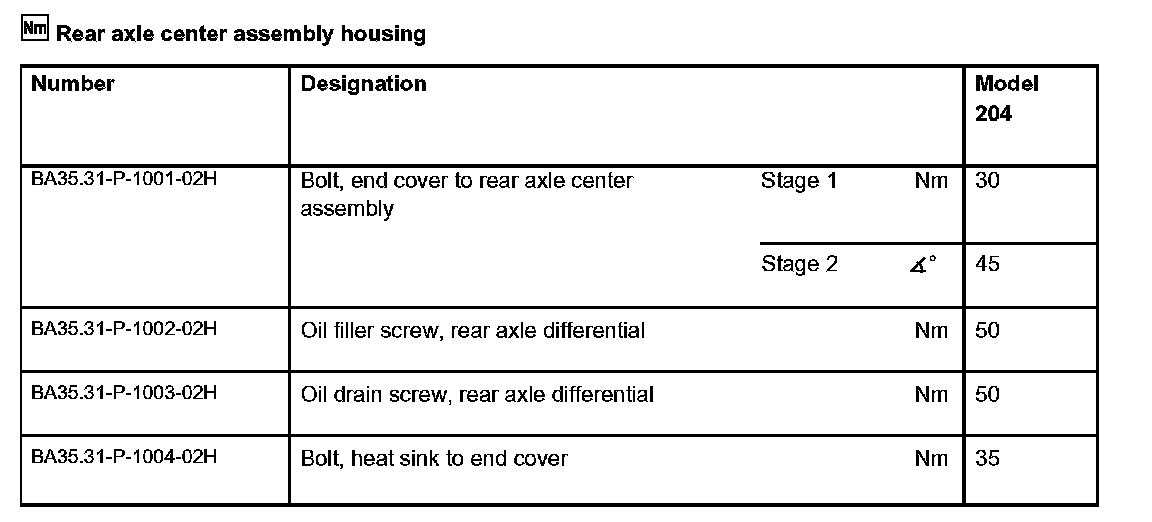

Rear axle center assembly housing:

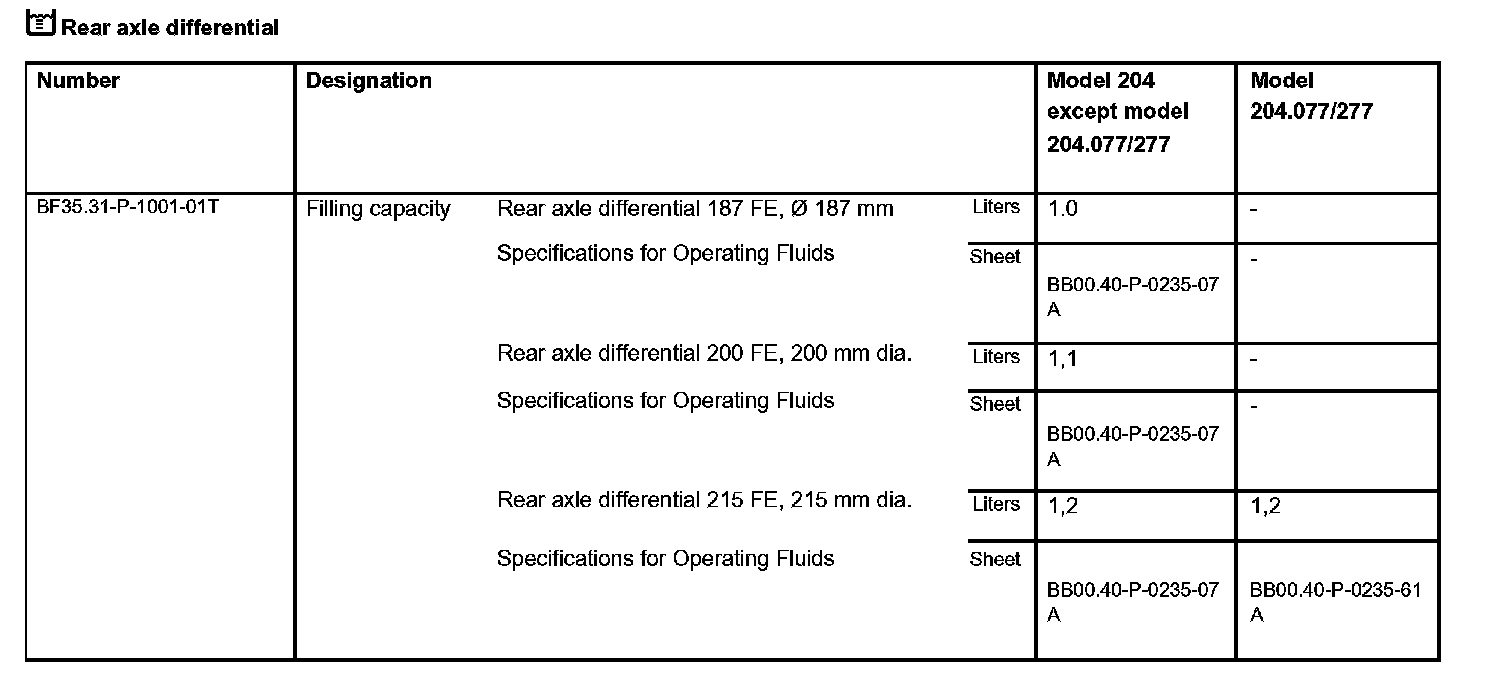

Rear axle differential:

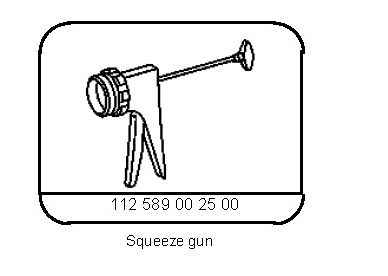

Special Tools:

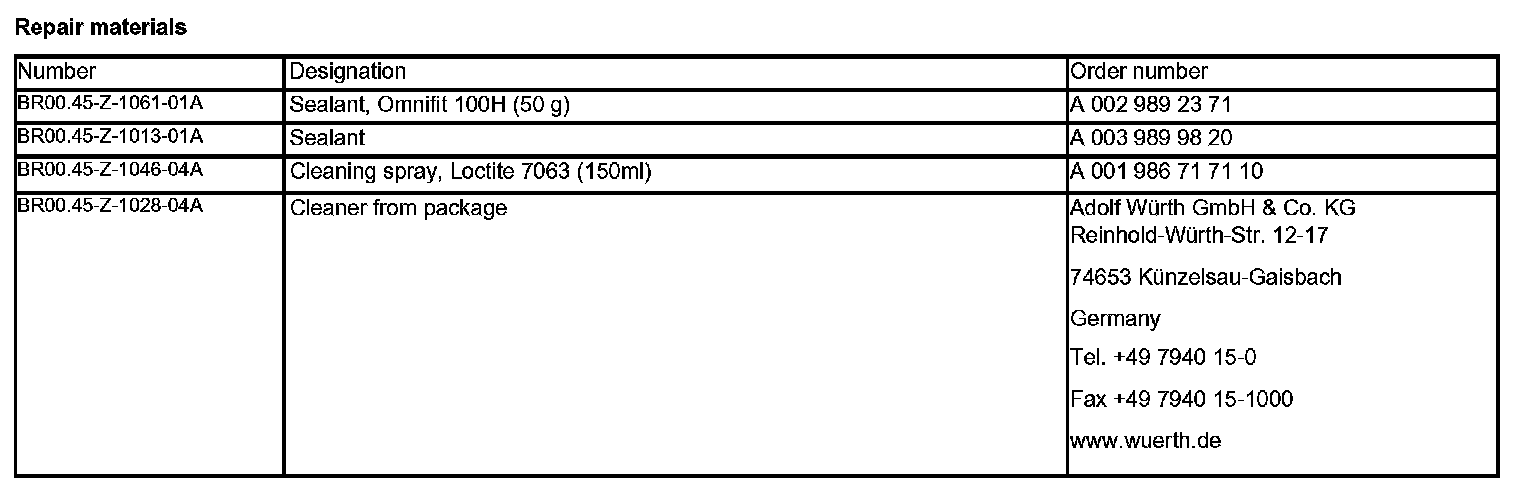

Repair materials:
