E 350 Coupe (207.359) V6-3.5L (276.957)
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Clutch
>>
Service and Repair
>>
Removal and Replacement
Removal and Replacement
AR25.10-P-0050CWA Remove/install clutch
- with TRANSMISSION 711.6, 716.6

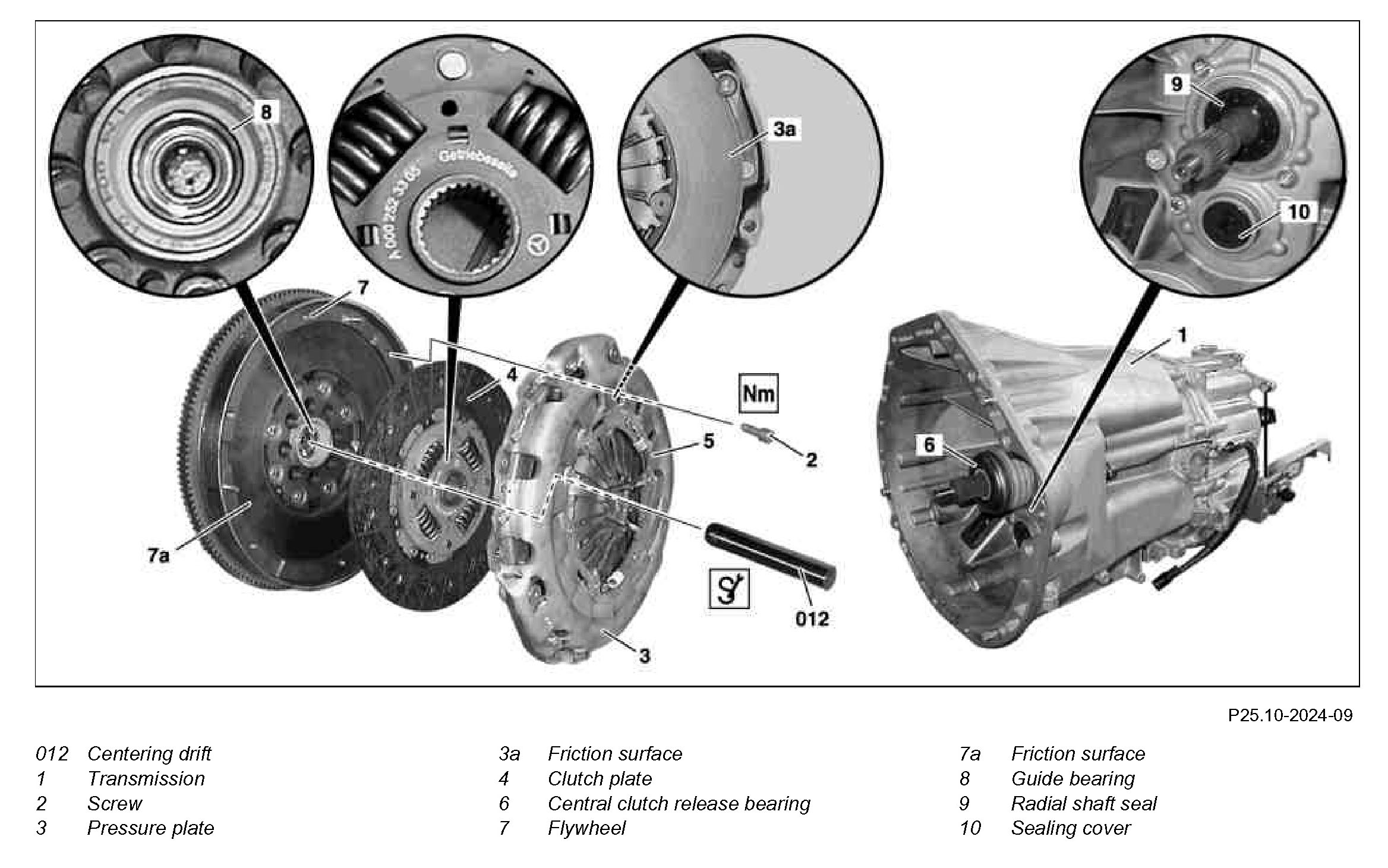

Component Identification:

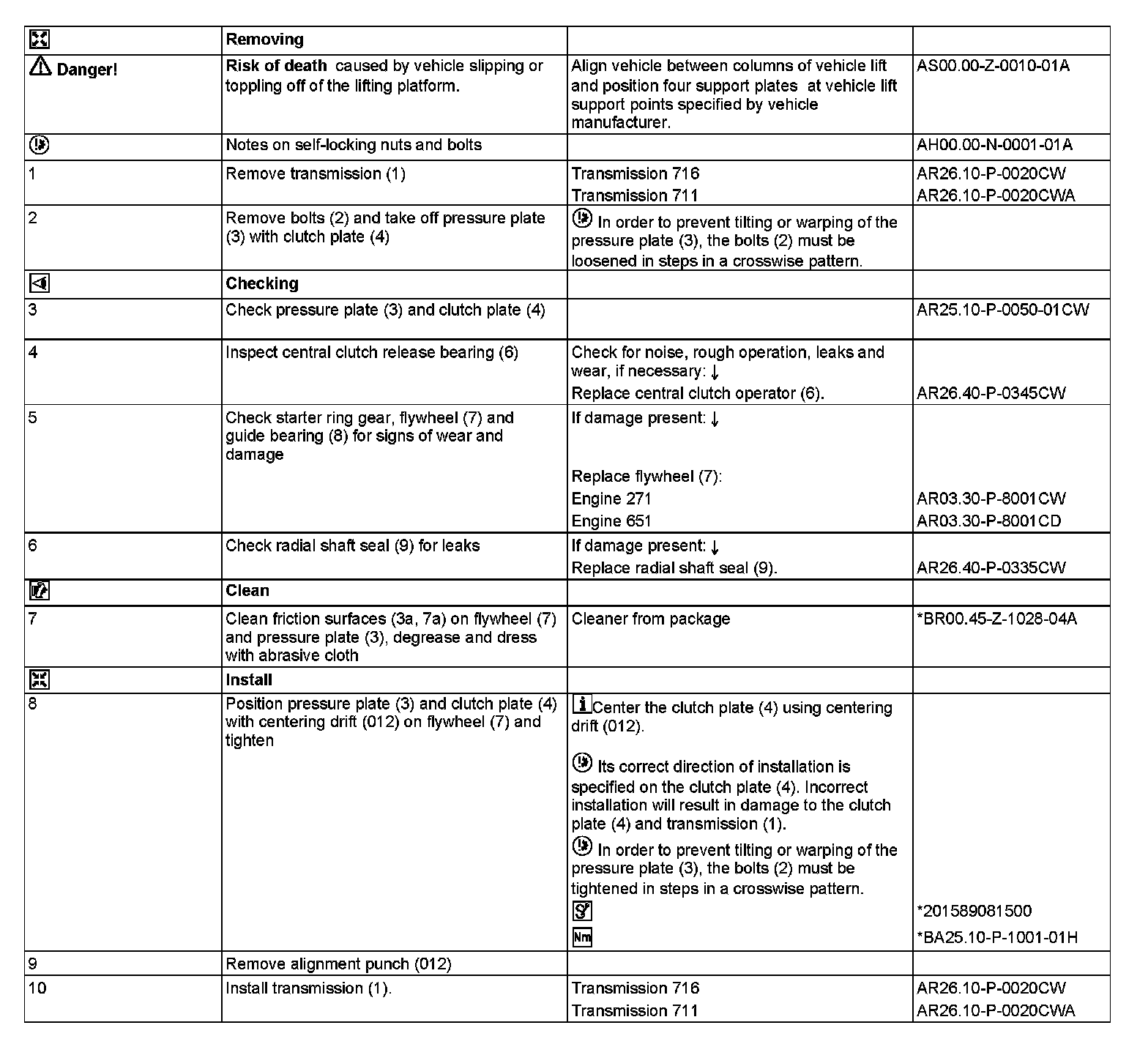

Steps 1-10:

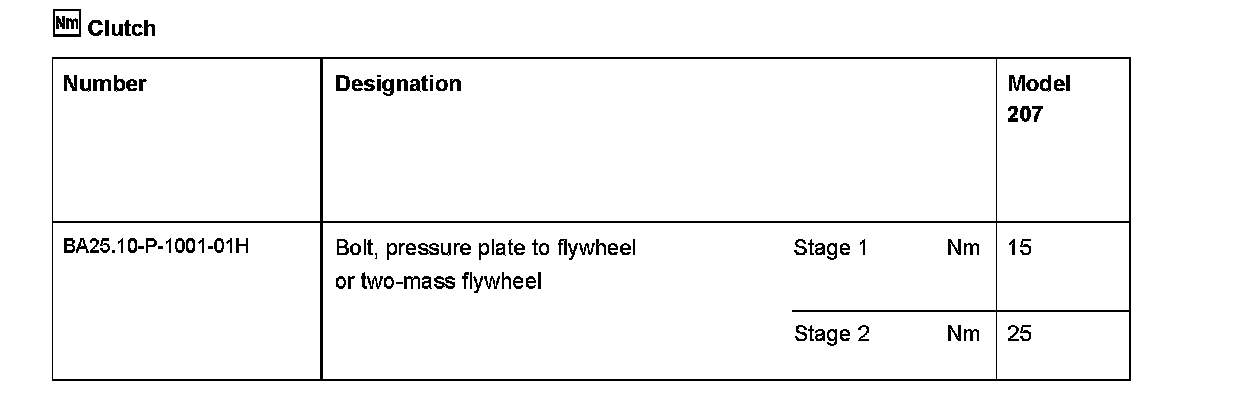

Clutch:
Special Tools:

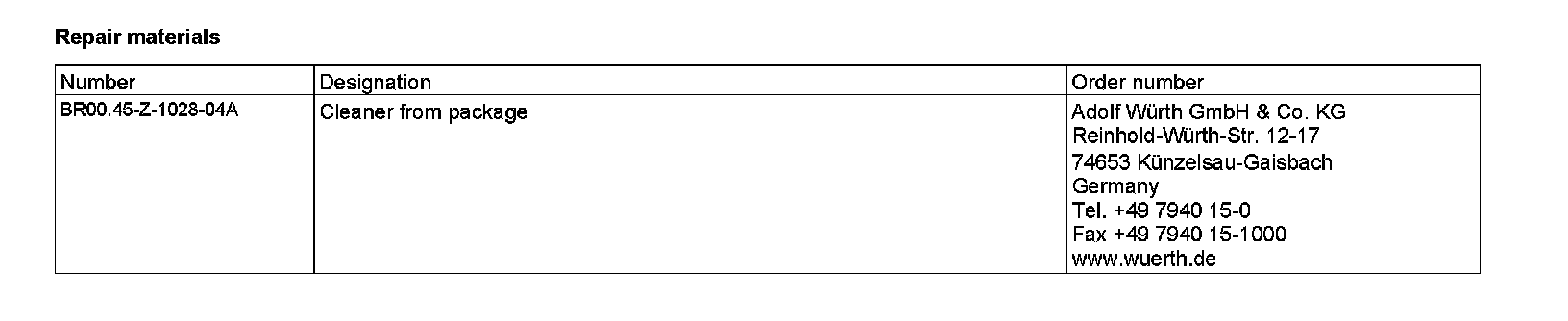

Repair materials:
