AR27.40-P-0700-01CW Remove/Install Shield at Transmission

AR27.40-P-0700-01CW Remove/install shield at transmission
- TRANSMISSION 722.6/9 in MODEL 204.0, 207
- TRANSMISSION 722.9 in MODEL 204.9

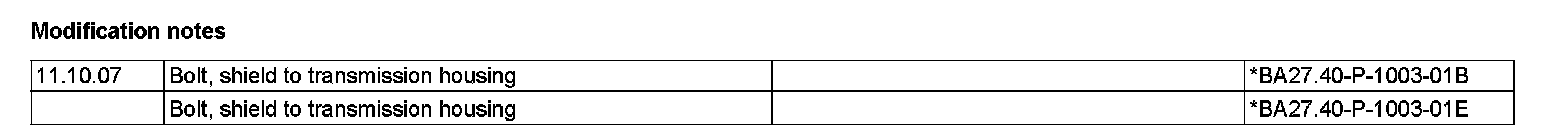

Modification notes:

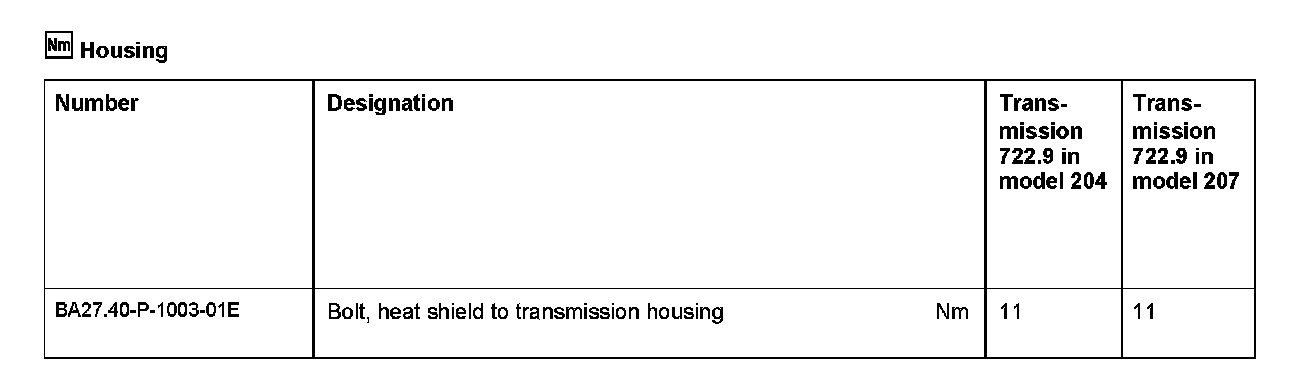

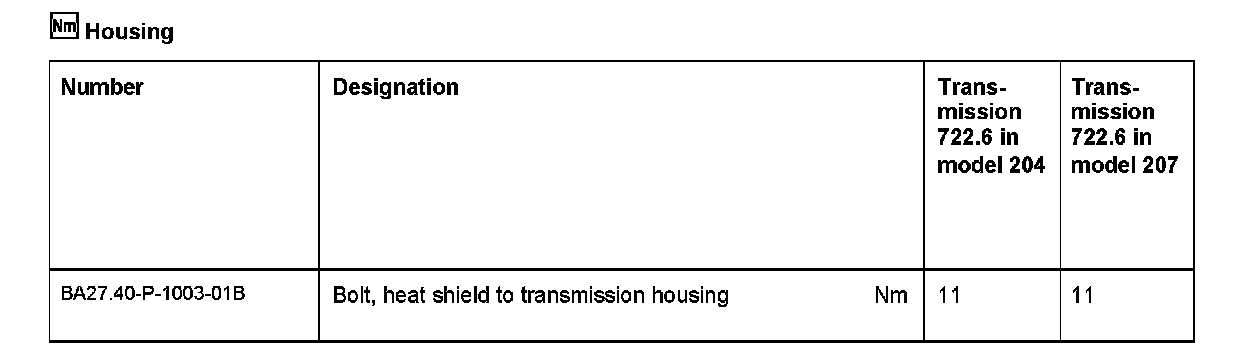

Housing:

Component Identification:

1 Remove bolt (1) and remove shield (2) downwards.
2 Press cable tie (4) out of shield (2) and remove shield (2).
Installation: The shield (2) must be positioned under the leaf spring (3).
The leaf spring (3) must be modified if a new transmission is installed.
