Shift Linkage: Adjustments



AR27.60-P-0980CW Adjusting shift rod
- with TRANSMISSION 722.6/9

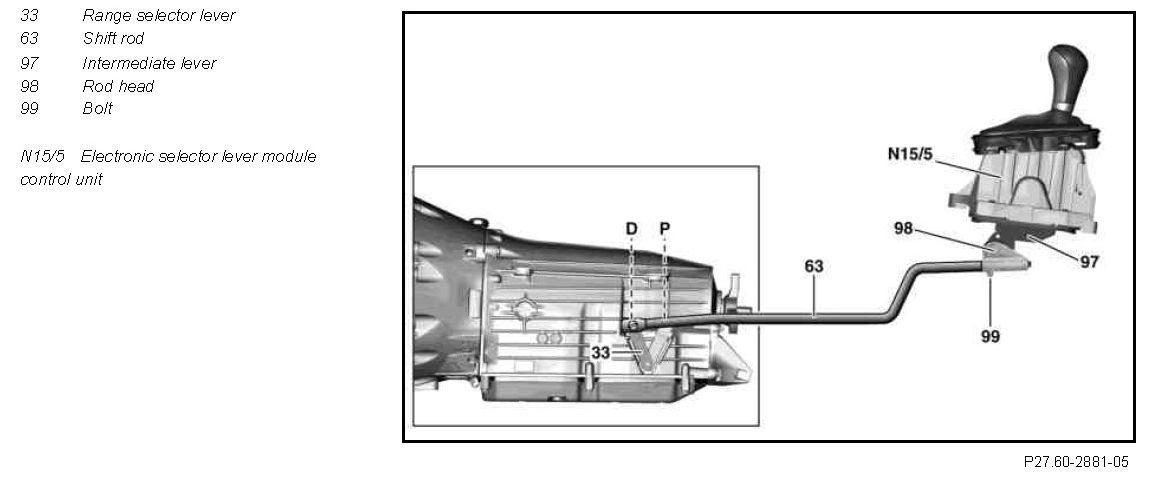

Component Identification:

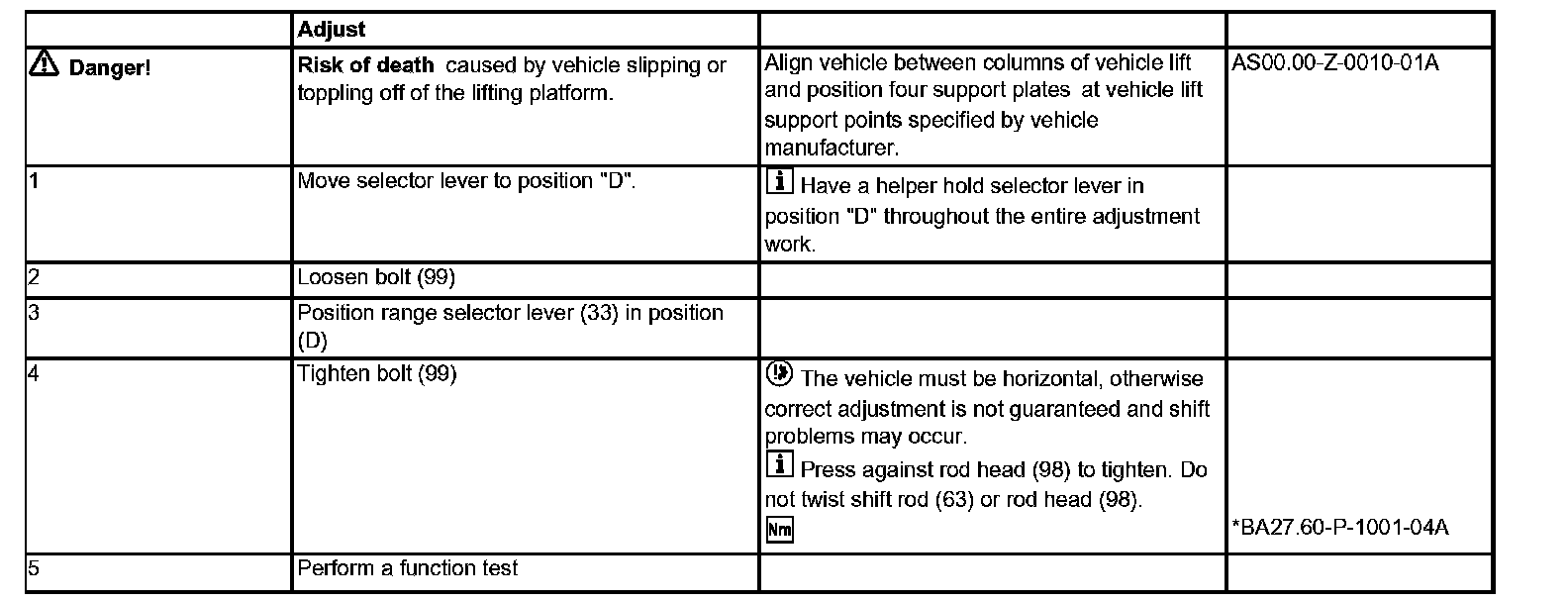

Steps 1-5:




Tightening torques for shift rod:
