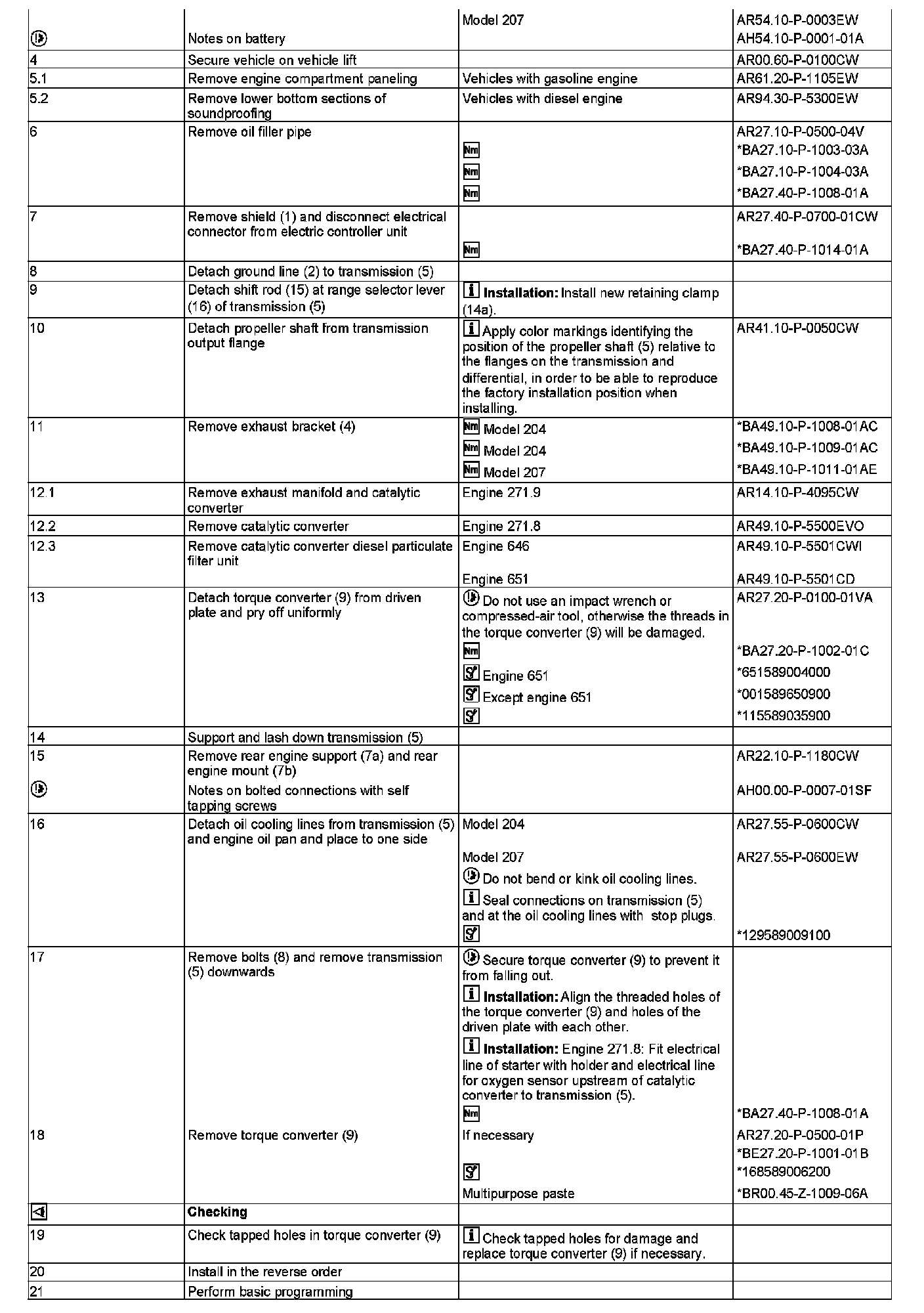

AR27.10-P-0500CW Remove/Install Transmission With Torque Converter

AR27.10-P-0500CW Remove/Install Transmission With Torque Converter
TRANSMISSION 722.6 in MODEL 204.0 /2 /3 up to model year 2012 /AEJ11 (YoM 11)
TRANSMISSION 722.6 in MODEL 207

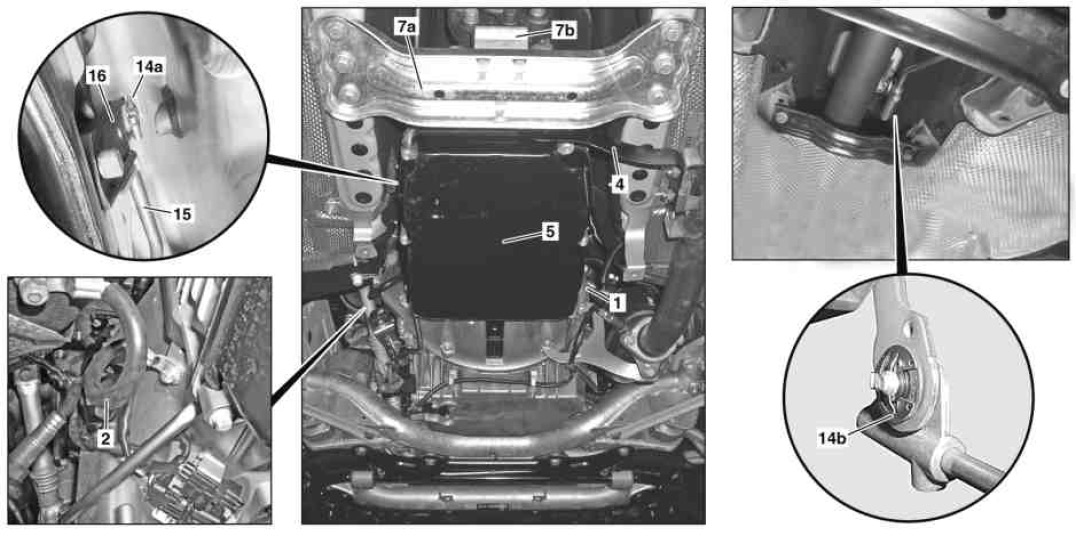

1 Shield
2 Ground cable
4 Exhaust bracket
5 Transmission
7a Rear engine crossmember
7b Rear engine mount
14a Retaining clamp
14b Fuse
15 Shift rod
16 Range selector lever

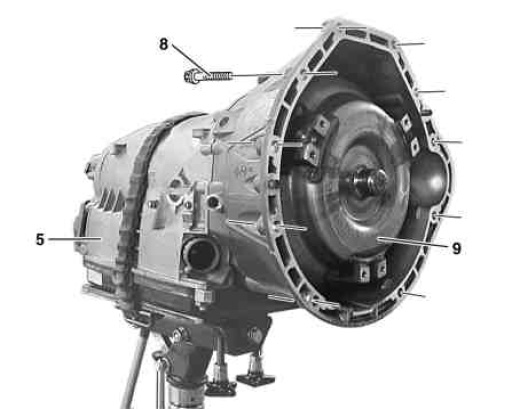

5 Transmission
8 Screw

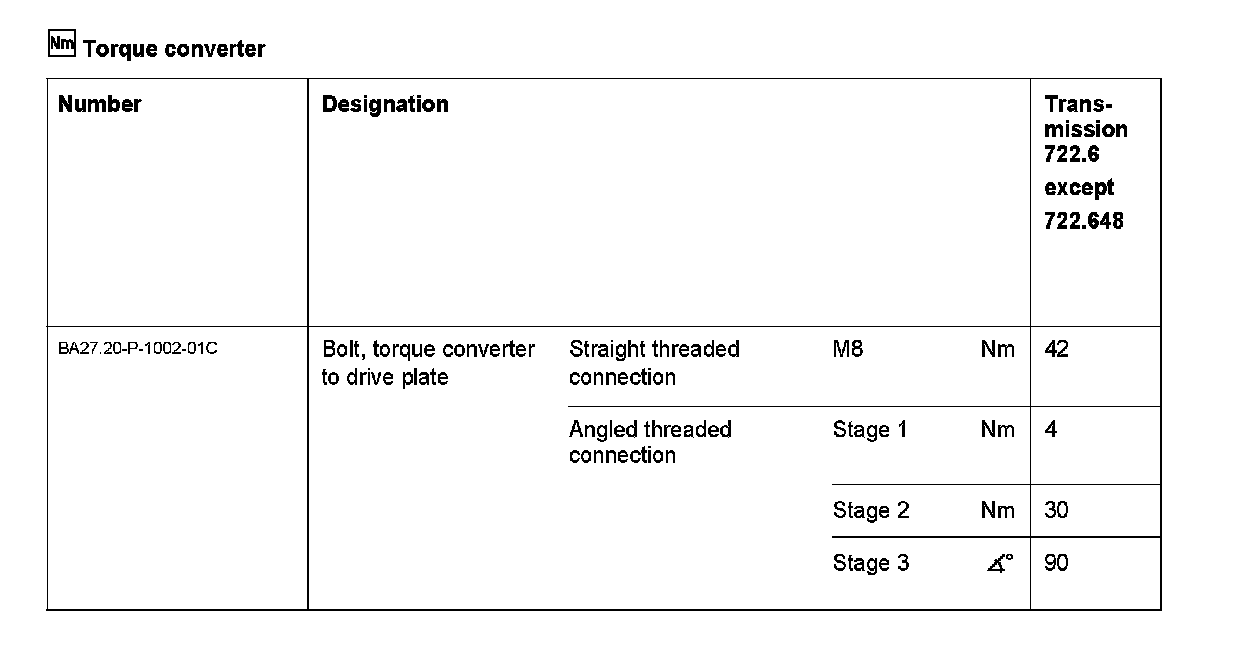

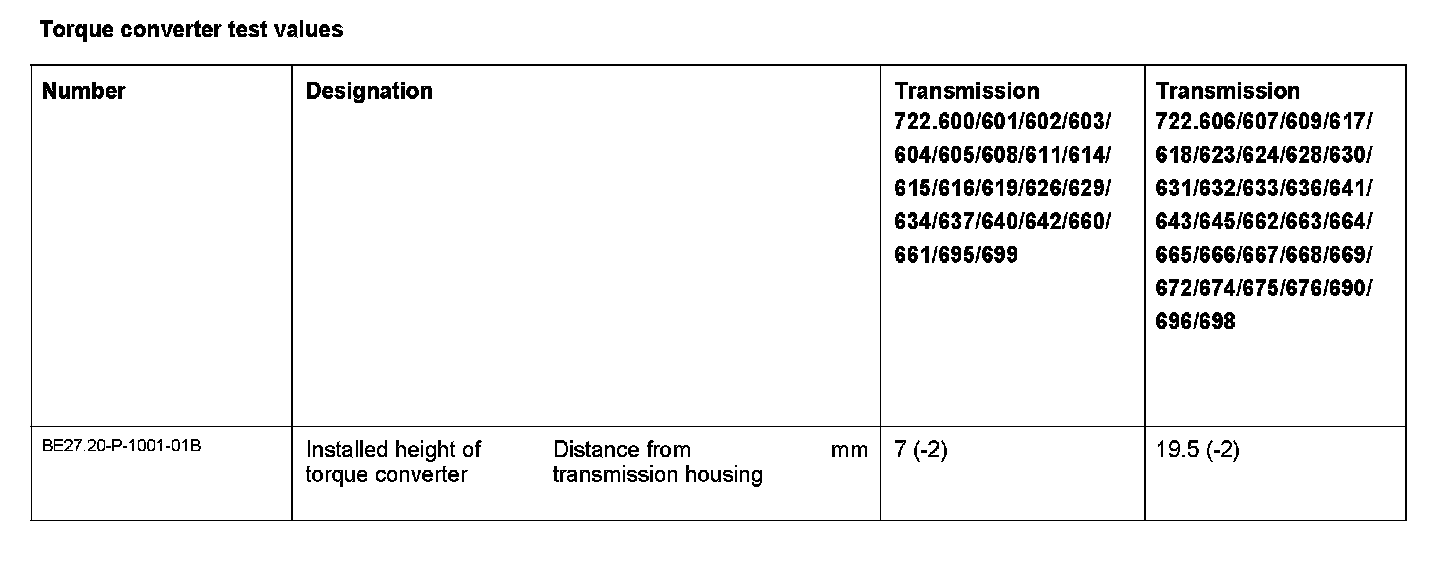

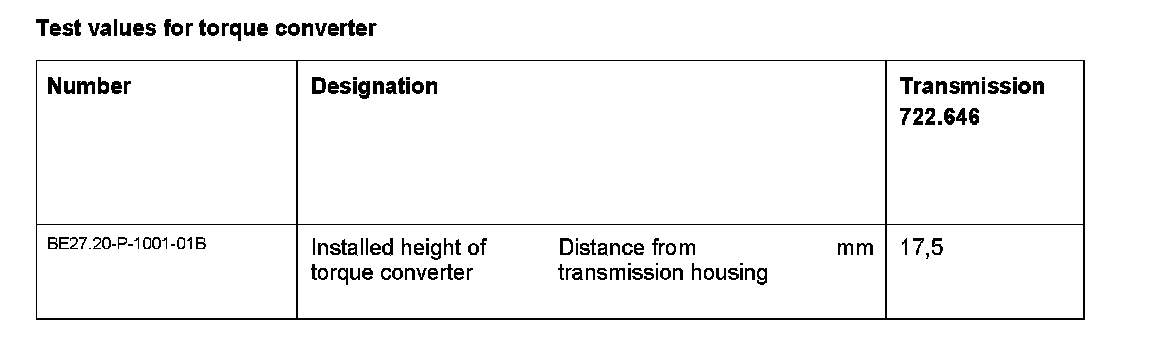

9 Torque converter
































001 589 65 09 00
Wrench socket





129 589 00 91 00
Set of stop plugs





115 589 03 59 00
Long wedge





168 589 00 62 00
Grab handle





651 589 00 40 00
Counterholder
