AR27.10-P-0500CV Remove/Install Transmission With Torque Converter

AR27.10-P-0500CV Remove/Install Transmission With Torque Converter
TRANSMISSION 722.9 /9 in MODEL 204, 207
without 4MATIC

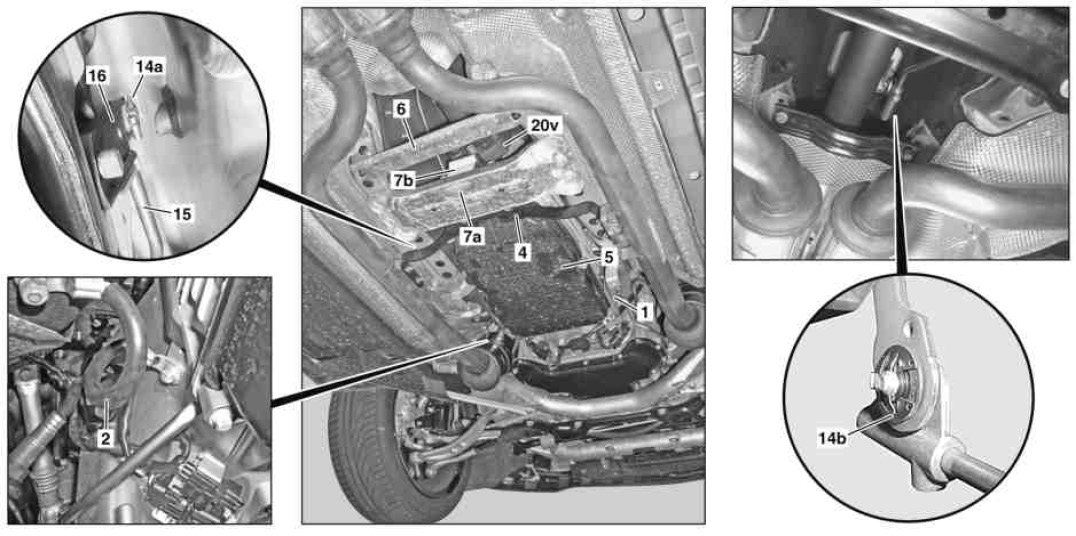

1 Shield
2 Ground cable
4 Exhaust bracket
5 Transmission
7a Rear engine crossmember
7b Rear engine mount
14a Retaining clamp
14b Fuse
15 Shift rod
16 Range selector lever
20v Front flex disk

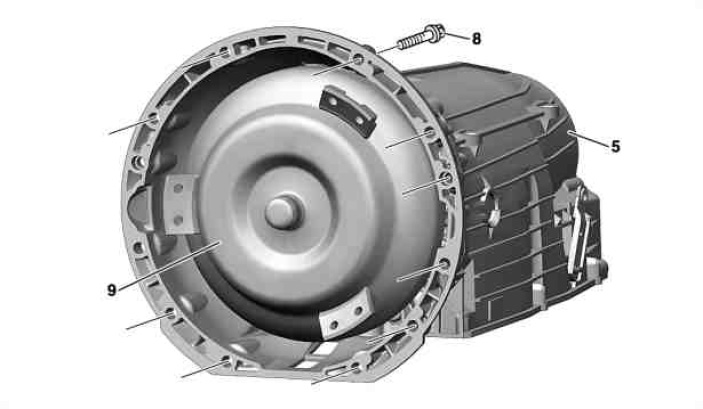

5 Transmission
8 Screw
9 Torque converter






































001 589 65 09 00
Wrench socket





129 589 00 91 00
Set of stop plugs





115 589 03 59 00
Long wedge





168 589 00 62 00
Grab handle





126 589 04 31 00
Parallel support
