Seals and Gaskets: Service and Repair

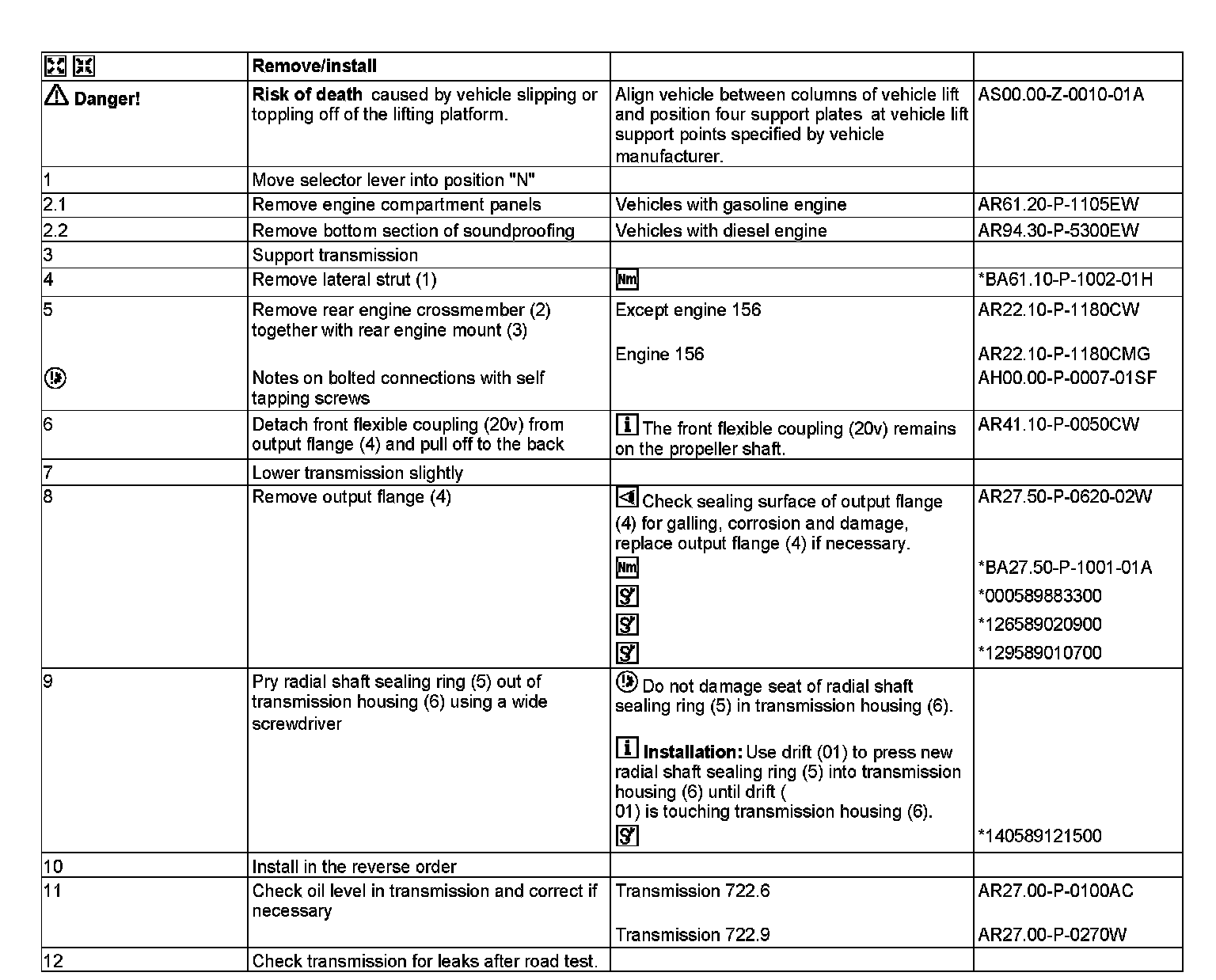

AR27.40-P-0205CW Remove/Install Radial Shaft Sealing Ring At Output Flange
TRANSMISSION 722.6 /902 /906 /907 /998 /999 in MODEL 204.0 /2
TRANSMISSION 722.9 in MODEL 207
TRANSMISSION 722.906 /907 /908 /930 /997 in MODEL 204.3

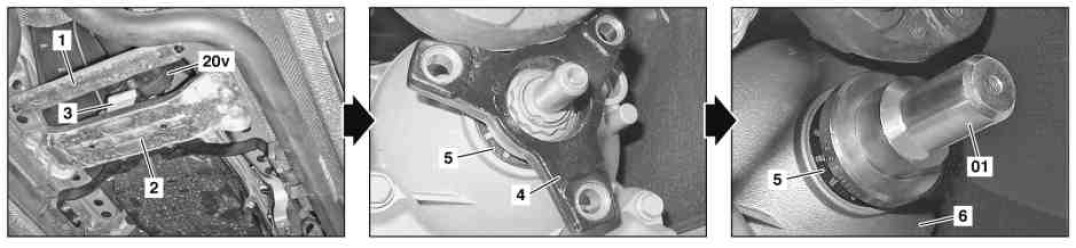

01 Drift
1 Cross strut
2 Rear engine crossmember
3 Rear engine mount
4 Output flange
5 Radial shaft seal
6 Transmission housing
20v Front flex disk














126 589 02 09 00
Wrench socket





129 589 01 07 00
Pin wrench





000 589 88 33 00
Two-armed puller





140 589 12 15 00
Drift
