GF27.10-P-0001-07AHC Automatic Transmission (AT), Location of Mechanical Parts

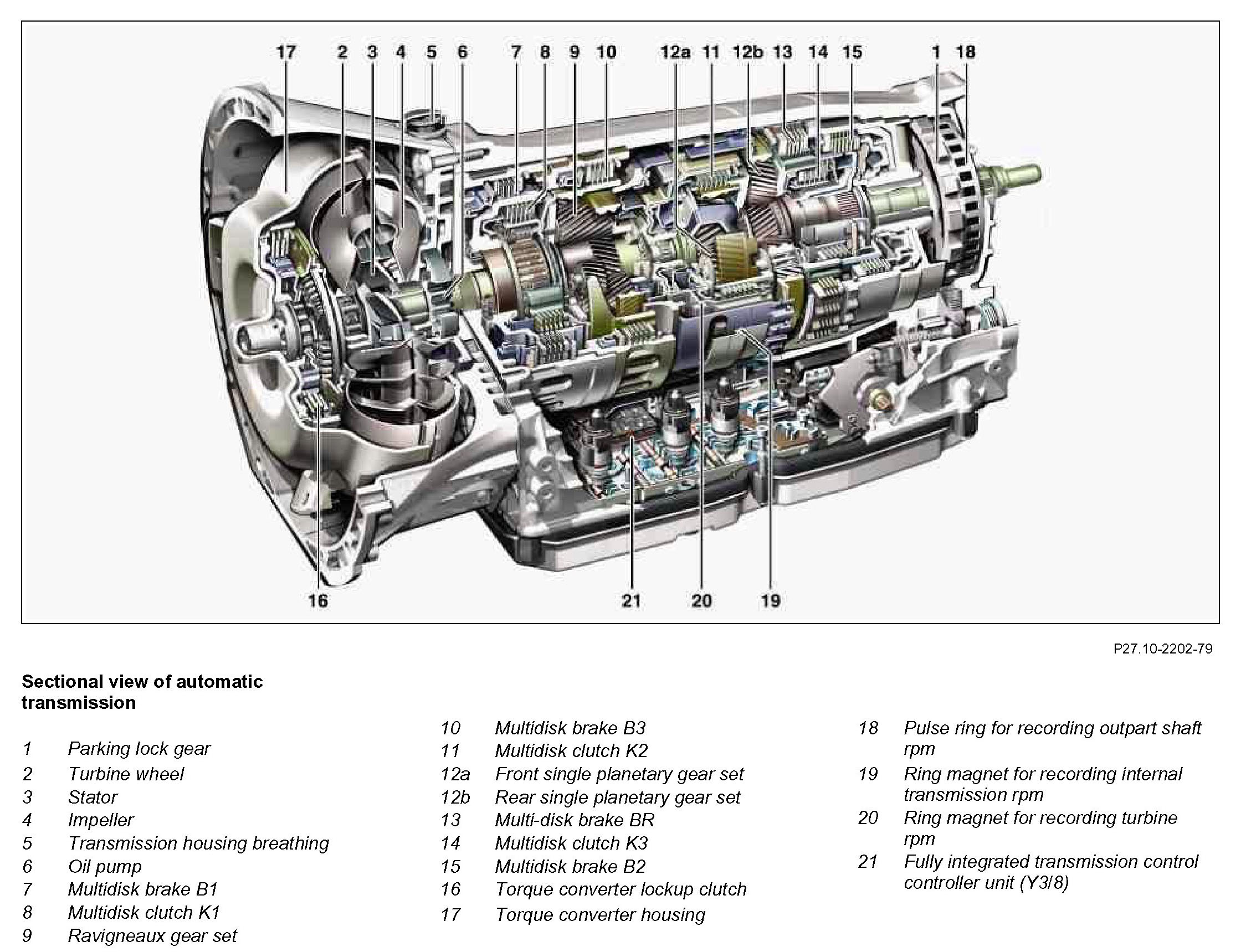

GF27.10-P-0001-07AHC Automatic transmission (AT), location of mechanical parts
- Transmission 722.902/904/906/908

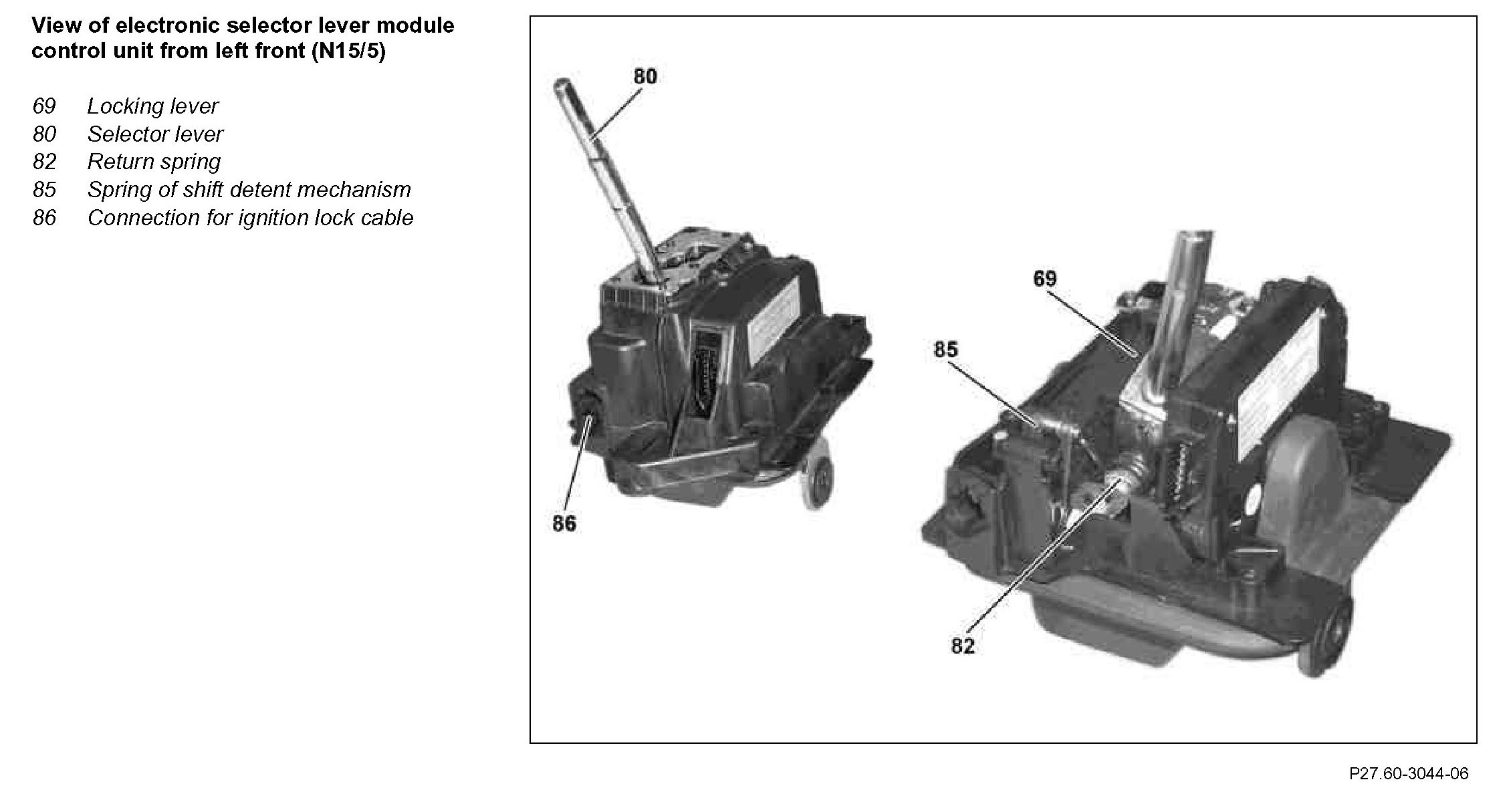

Component Identification:




Component Identification:
