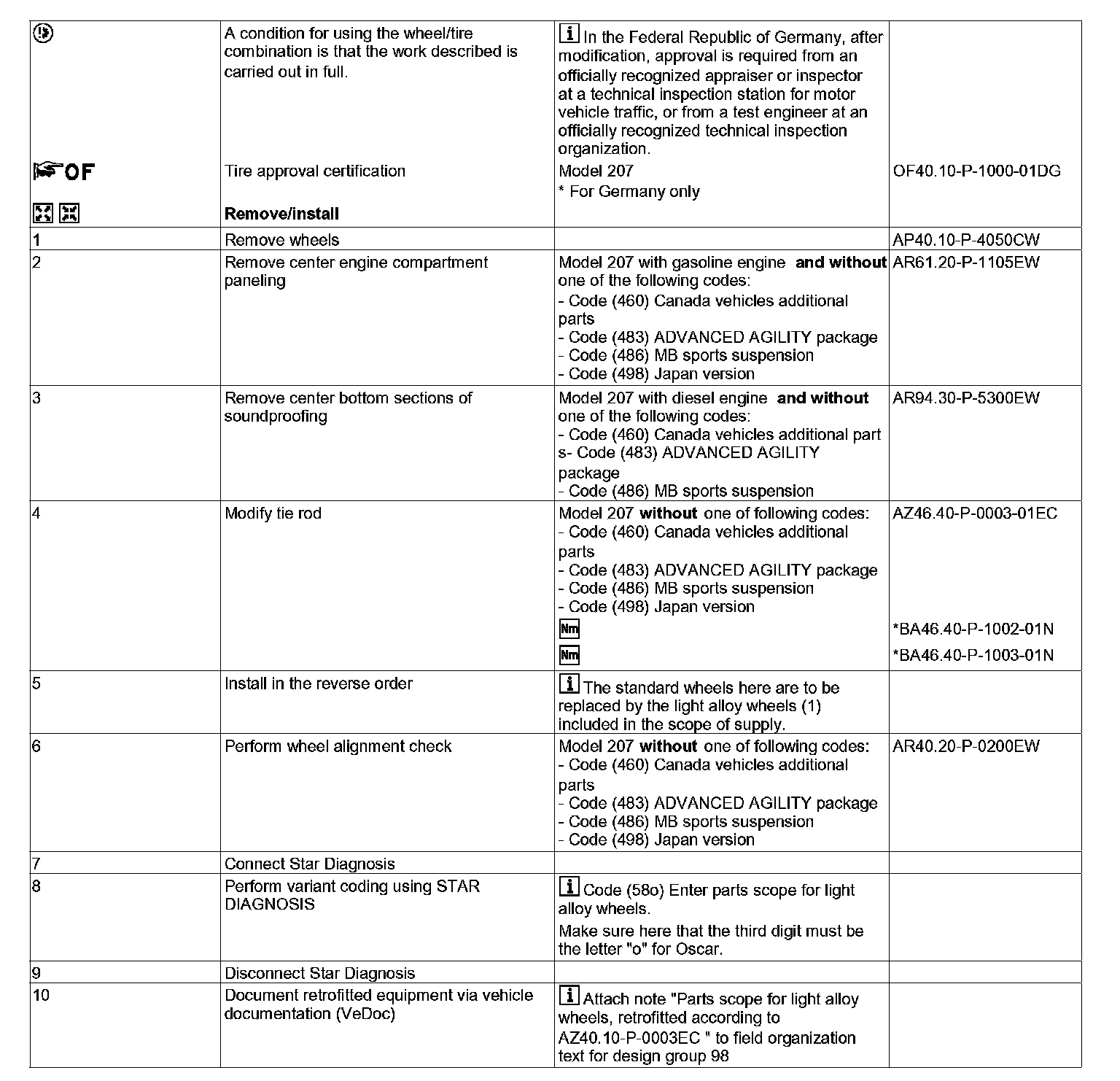

AZ40.10-P-0003EC Retrofit Light Alloy Wheels




AZ40.10-P-0003EC Retrofit Light Alloy Wheels
- MODEL 207
- except CODE (950) AMG sport package retrofitted installation of 457.2 mm (18 inch) wheels

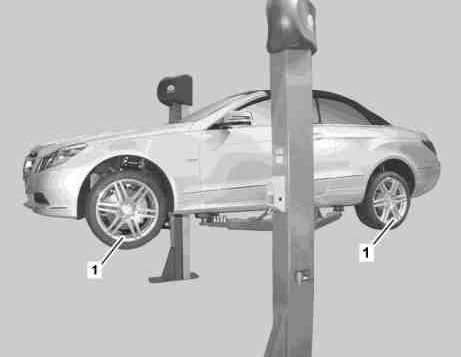

1 Light alloy wheel
