Home >> Mercedes Benz >> 2012 >> E 350 Coupe (207.359) V6-3.5L (276.957) >> Repair and Diagnosis >> Steering and Suspension >> Wheels and Tires >> Wheels >> Application and ID

Wheels: Application and ID

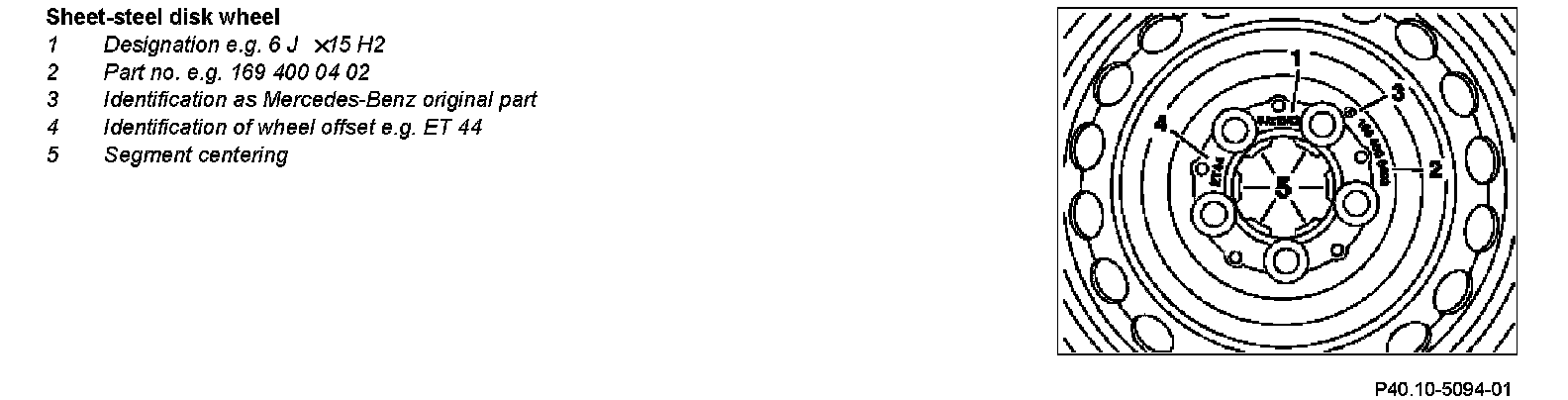

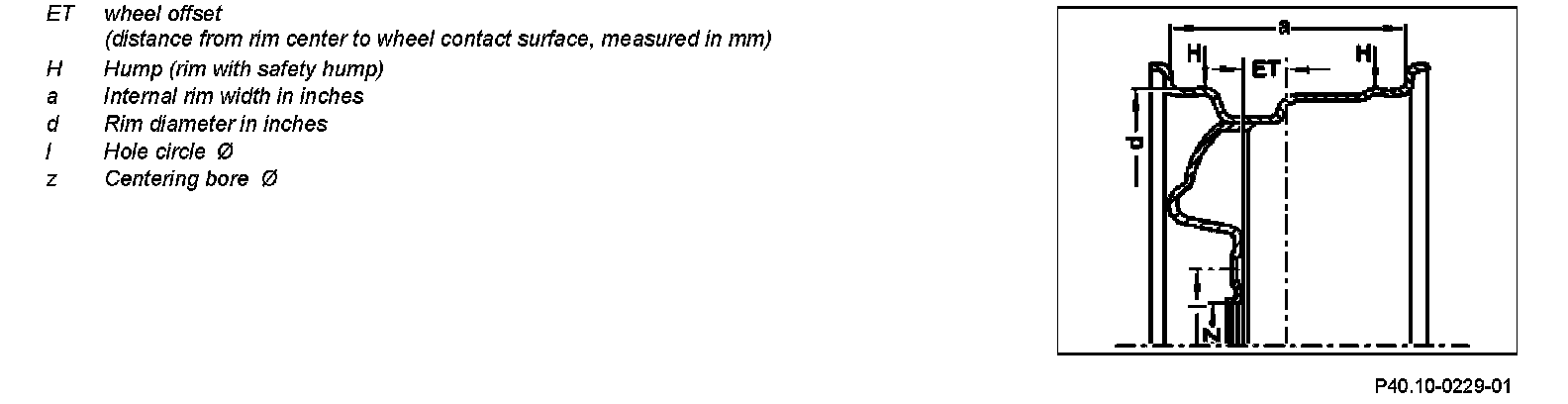

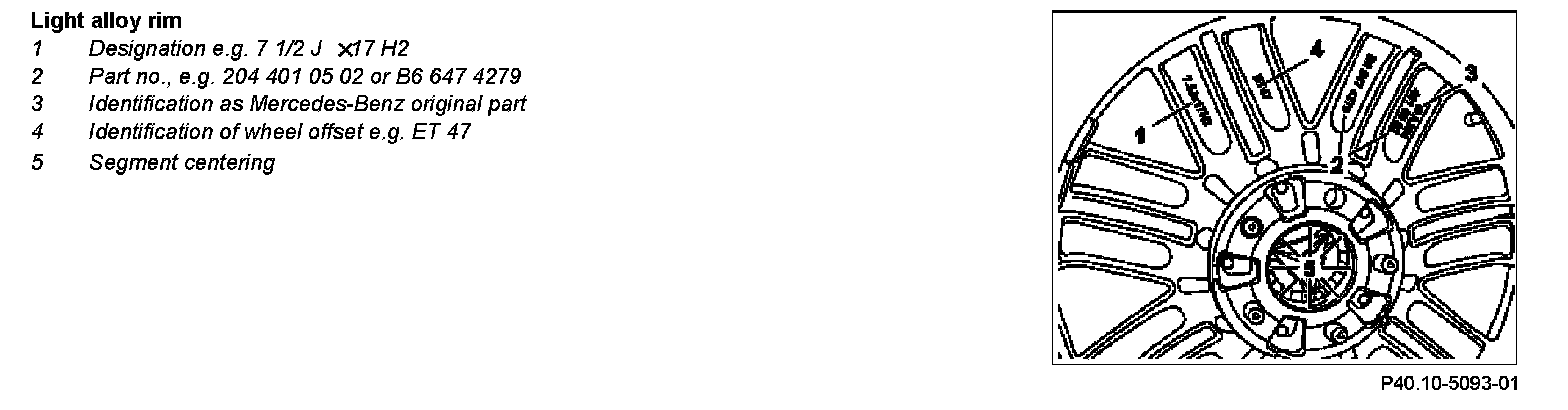

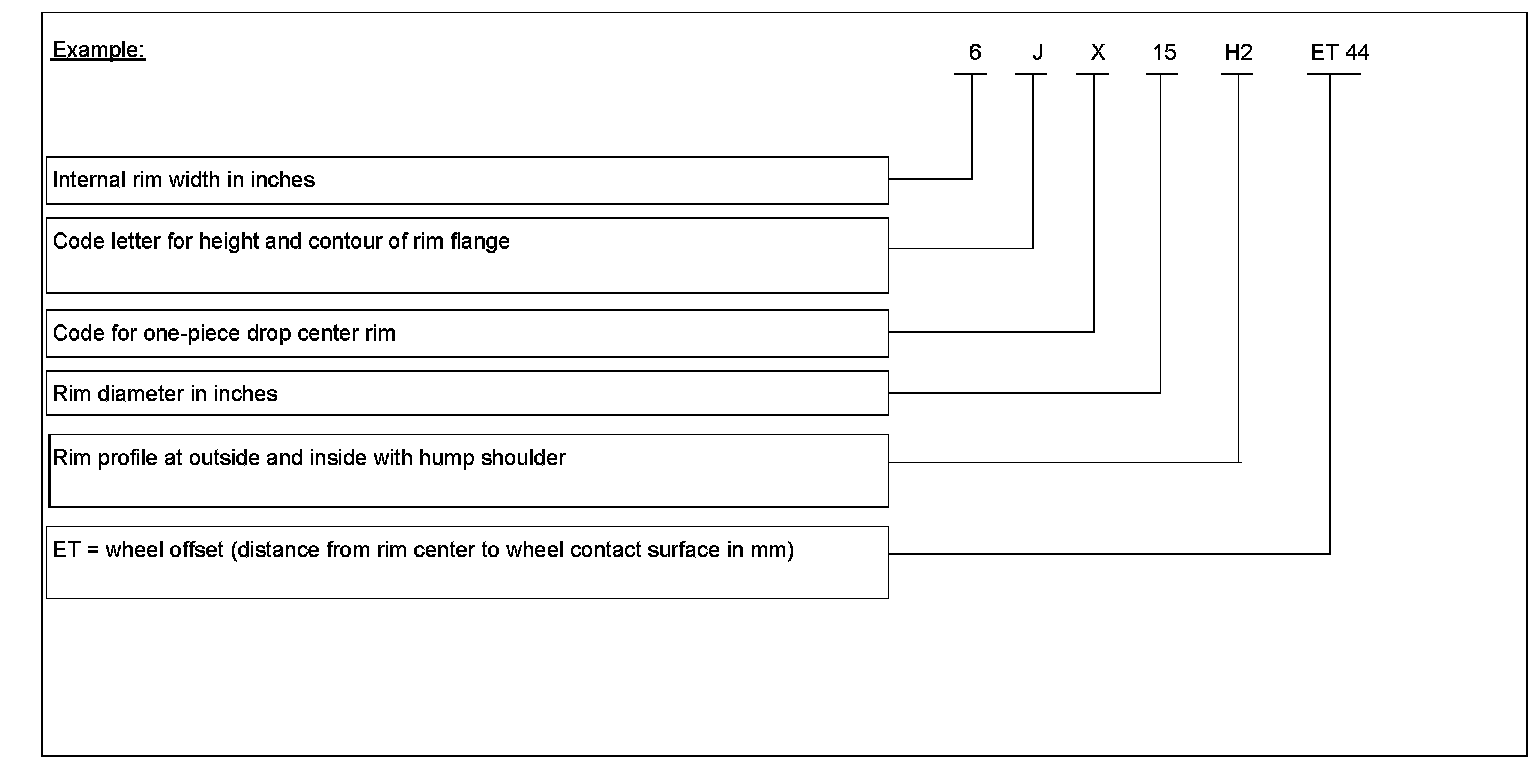

GF40.10-P-1010-01A Rim designation




Component Identification:




Component Identification:




Component Identification:
