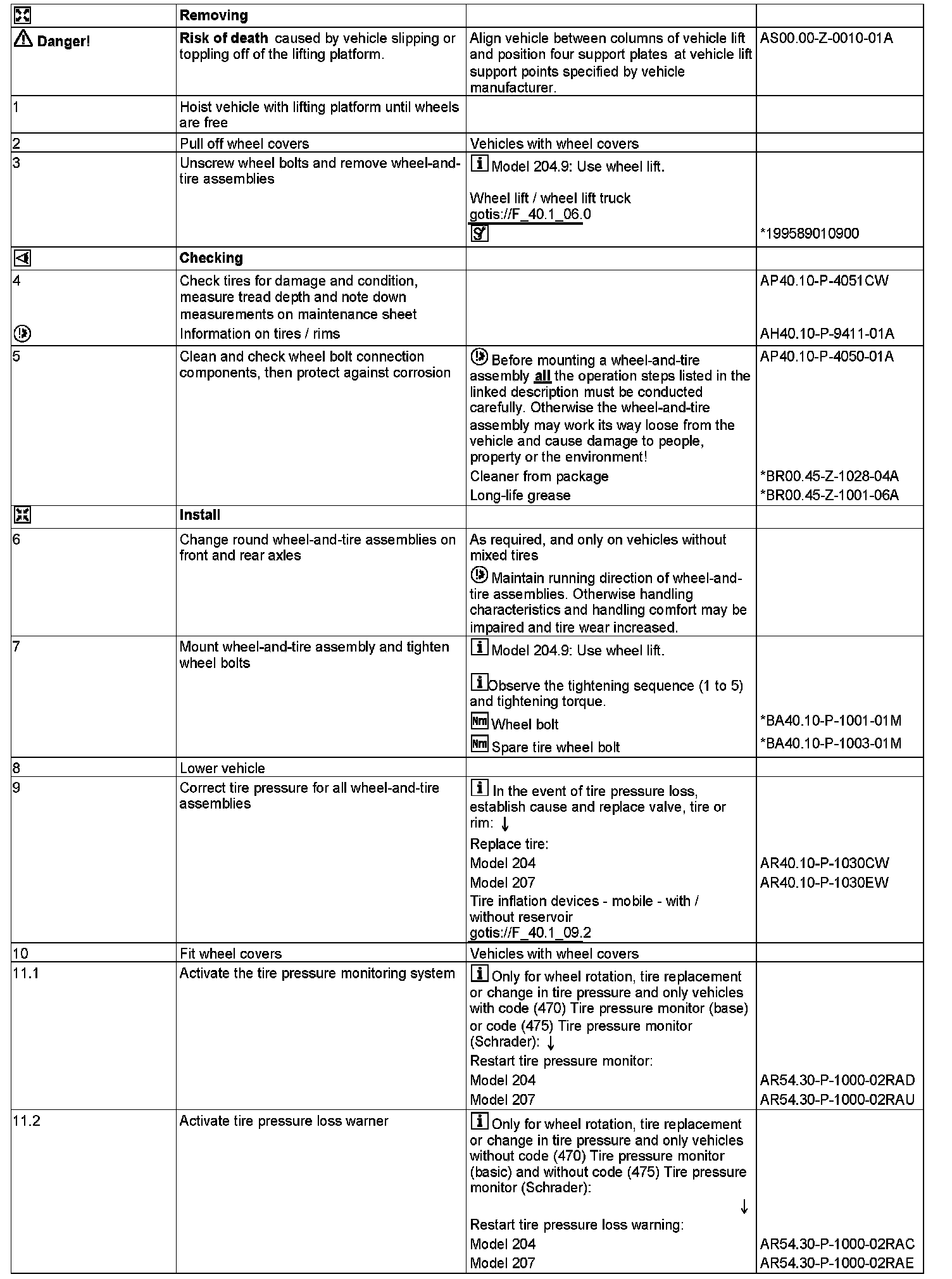

AP40.10-P-4050CW Remove/Install Wheels, Rotate If Necessary

AP40.10-P-4050CW Remove/Install Wheels, Rotate If Necessary
MODEL 204, 207

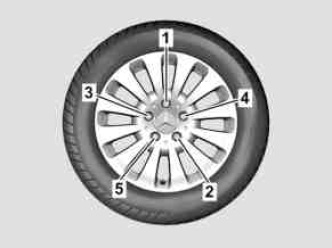

Left illustration

1 to 5 Tightening sequence

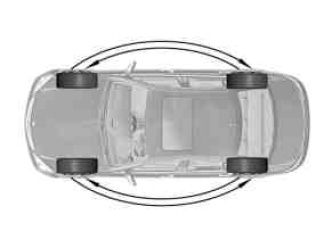

Right figure
Arrows Interchange wheel-and-tire assemblies (vehicles without mixed tires)














199 589 01 09 00
Socket wrench
