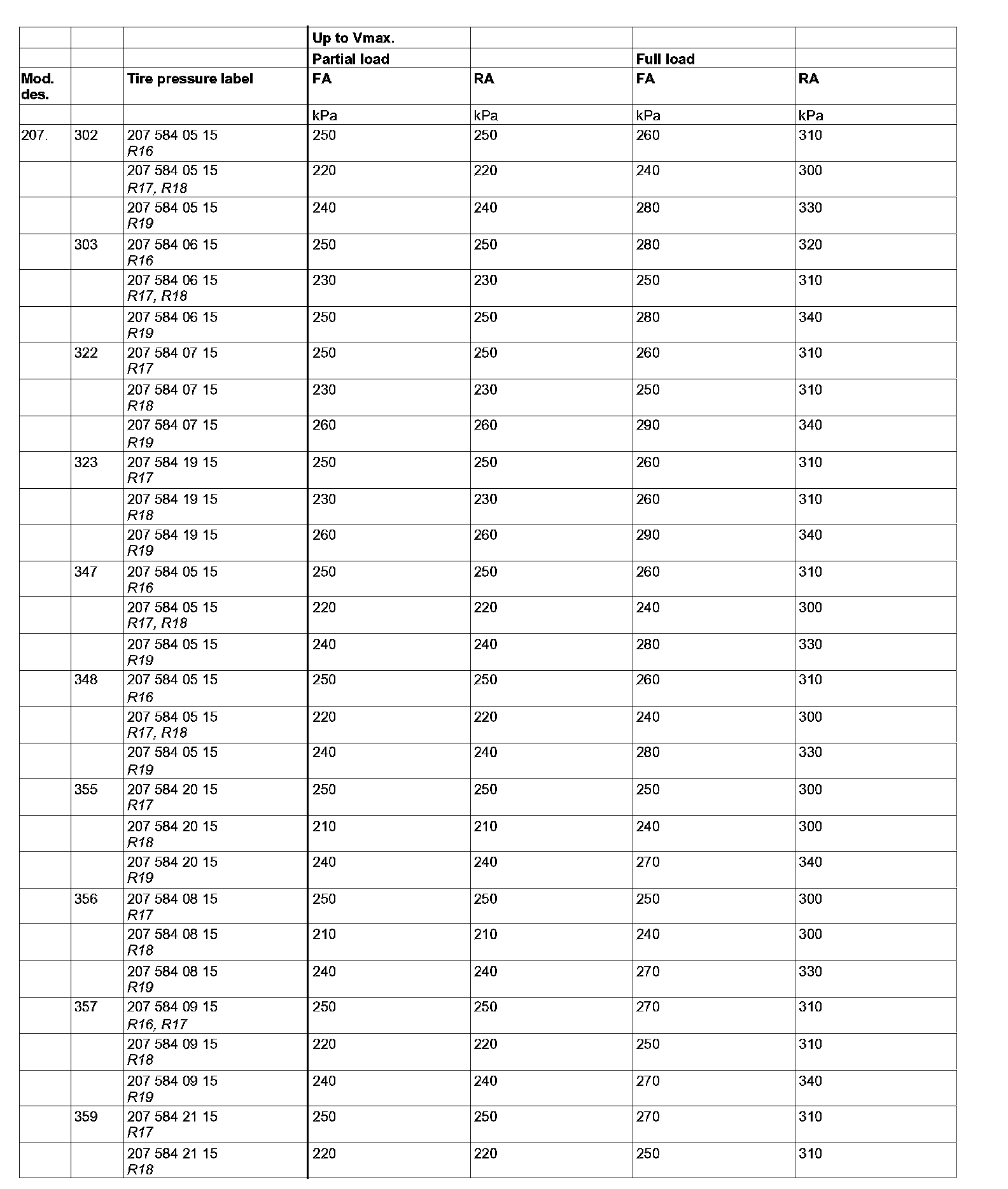

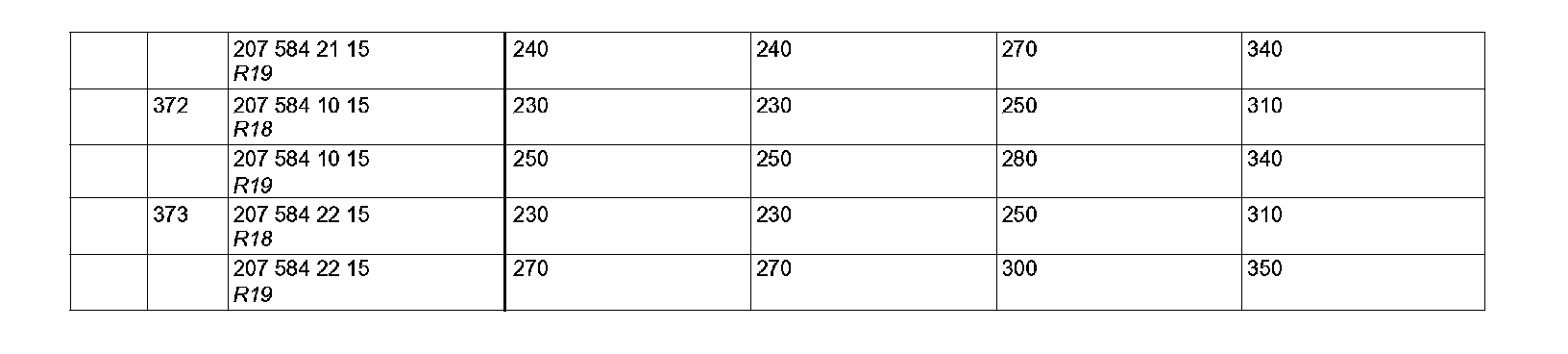

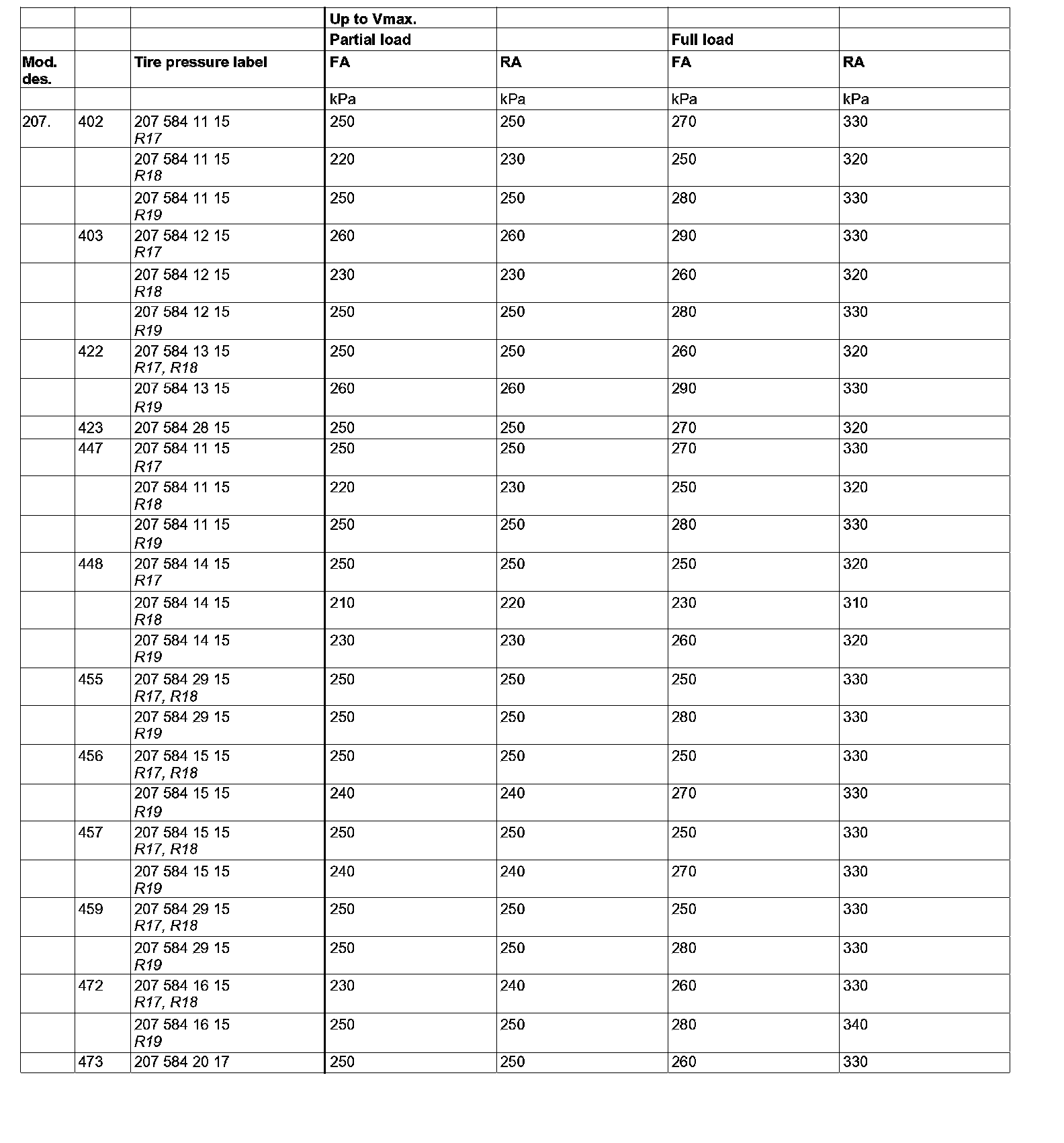

GF40.10-P-1009GA Overview of Tire Air Pressure Labels

GF40.10-P-1009GA Overview of Tire Air Pressure Labels
- MODEL 207
- except CODE (625) Australia version
- except CODE (494) USA version
- except CODE (460) Canada version

Conversion of kilopascal (kPa) into bar (bar):
100 kPa = 1.0 bar
Example: 230 kPa = 2.3 bar
