Torque Rod: Service and Repair
AR35.20-P-0113CW Remove/install thrust arm

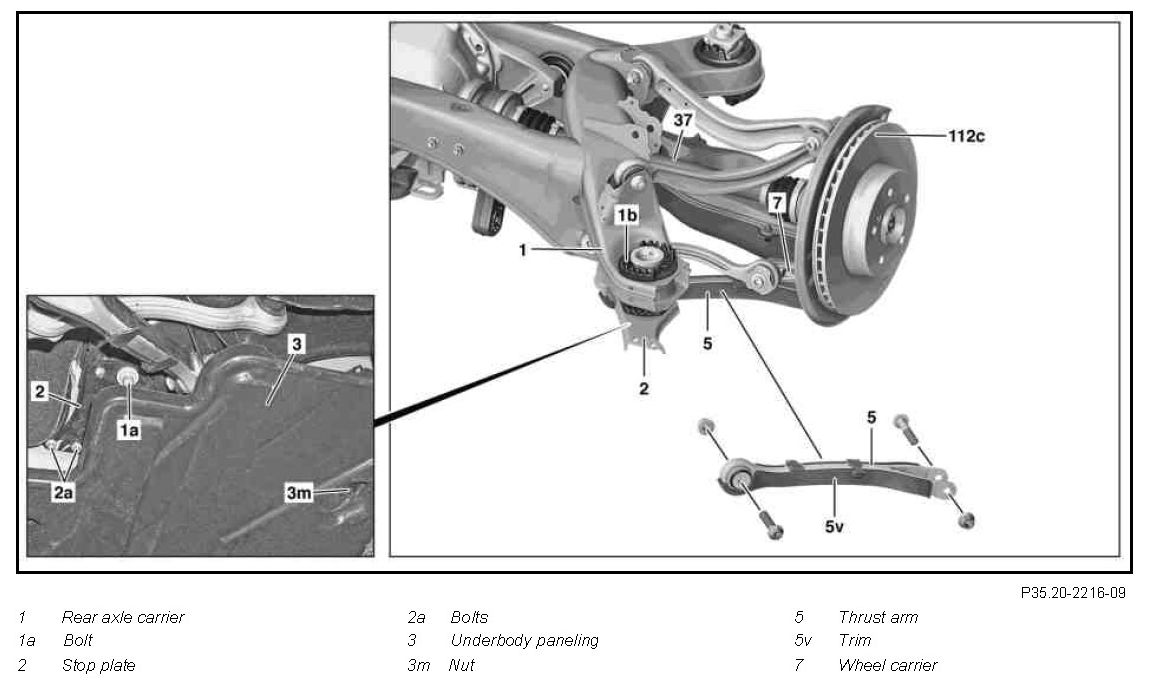

Component Identification:

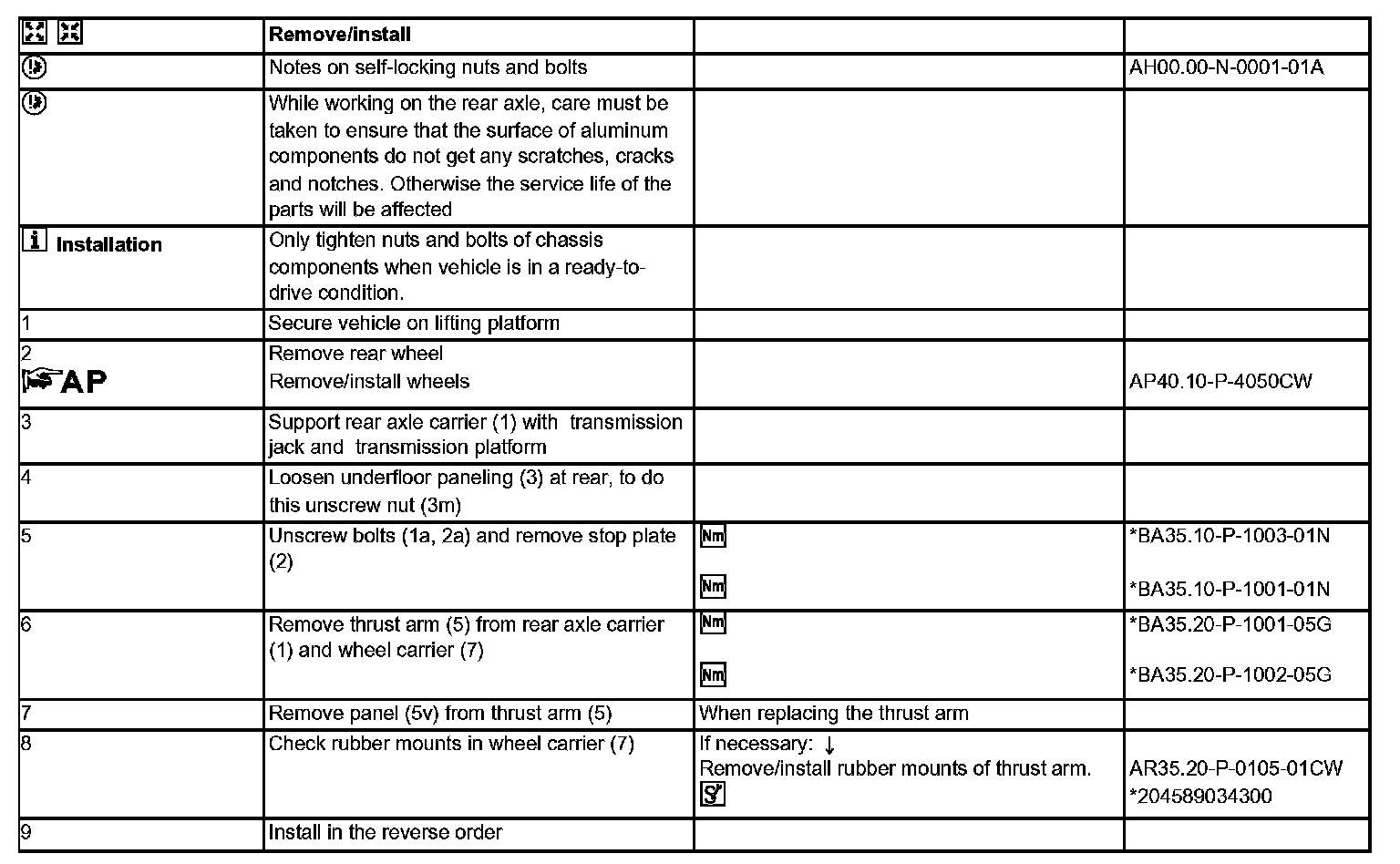

Remove/install Steps 1-9:

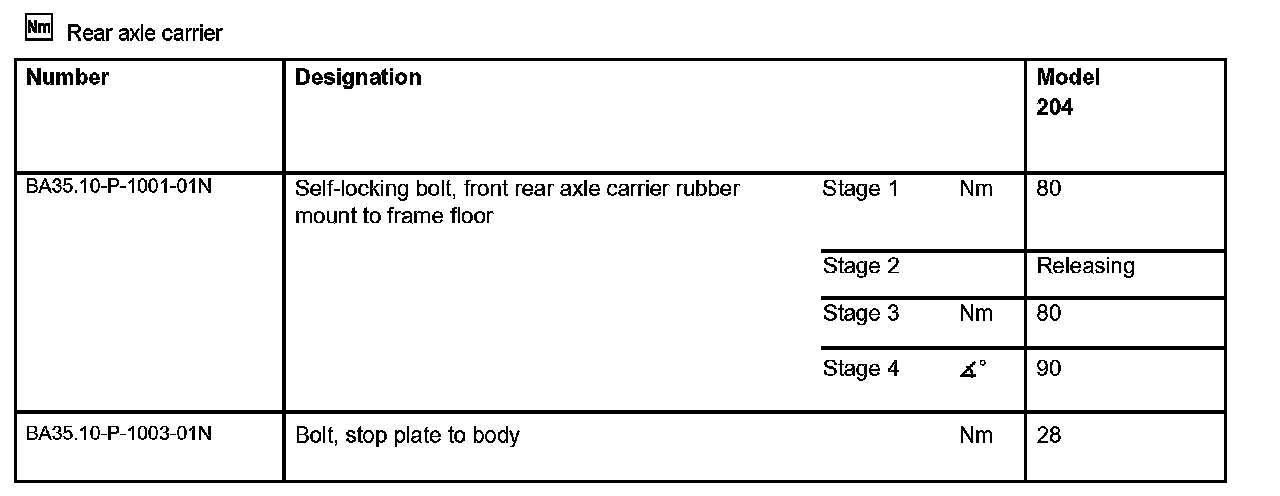

Rear axle carrier:

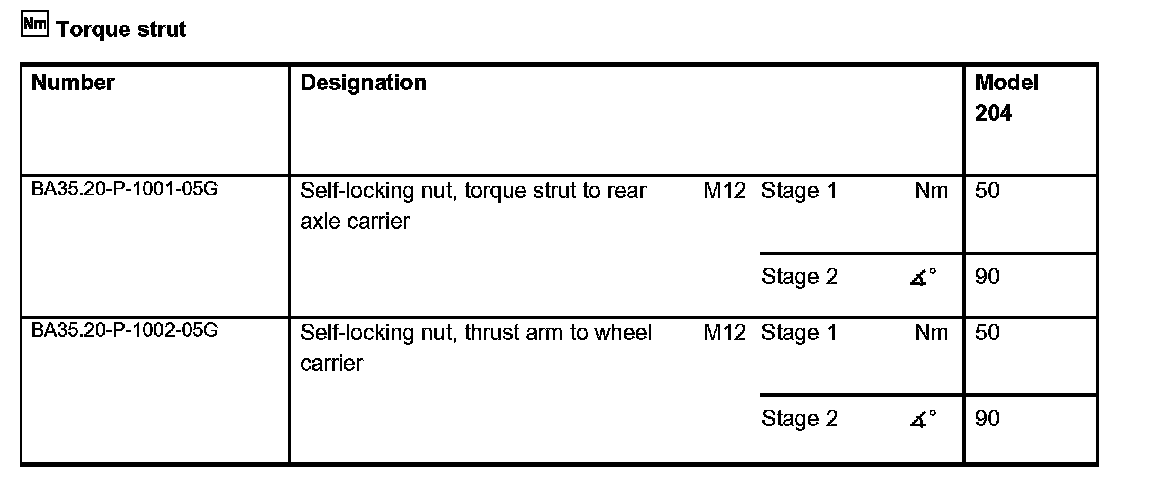

Torque strut:
Special Tools:
