AR32.25-P-1017CW Remove/Install The Suspension Strut

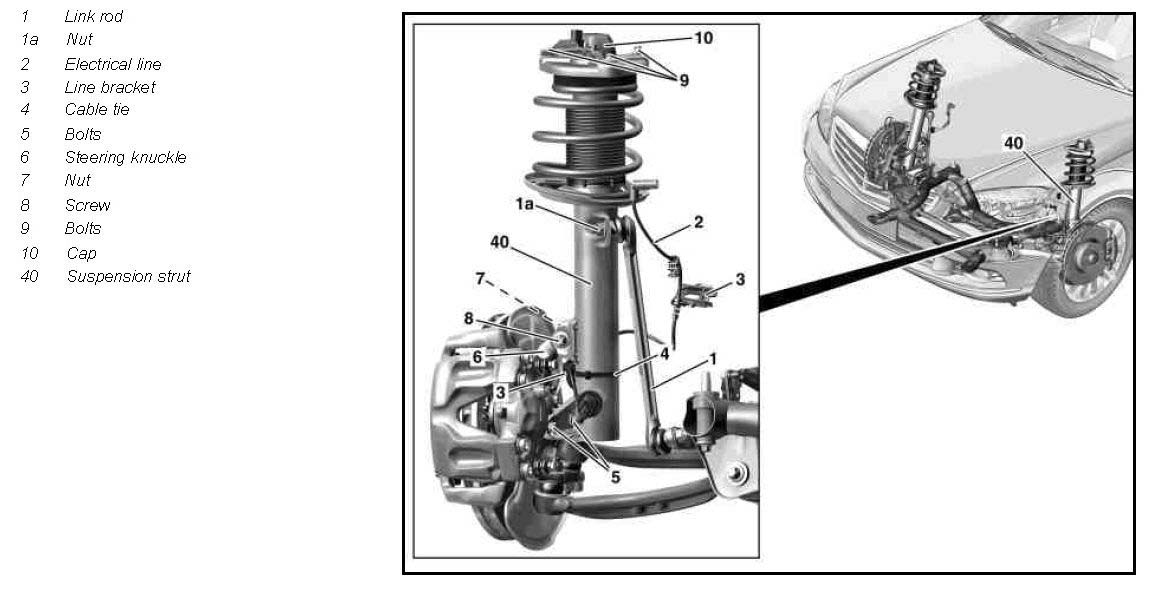

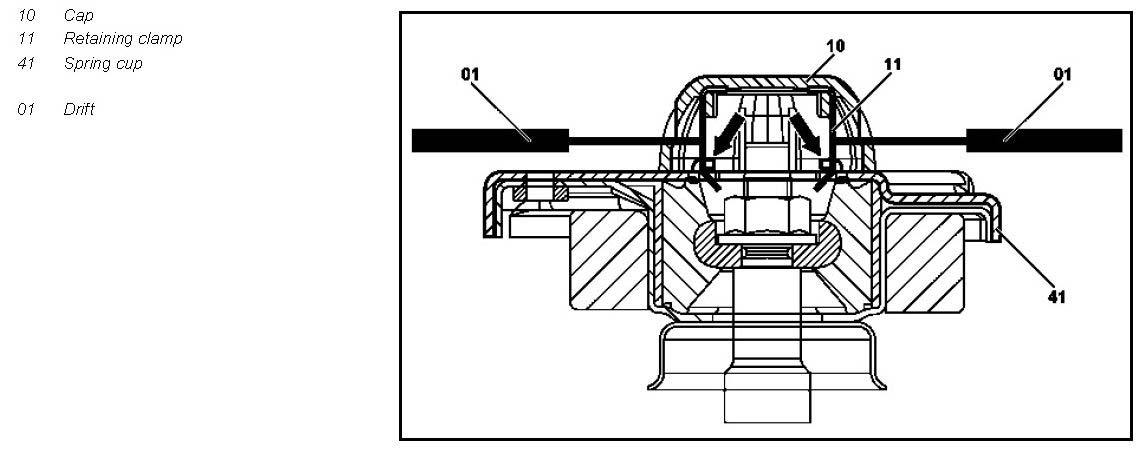

Component Identification:

Component Identification:

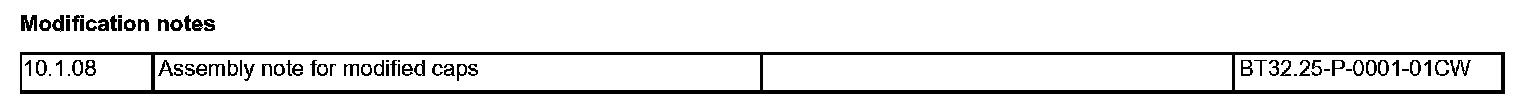

Modification notes:

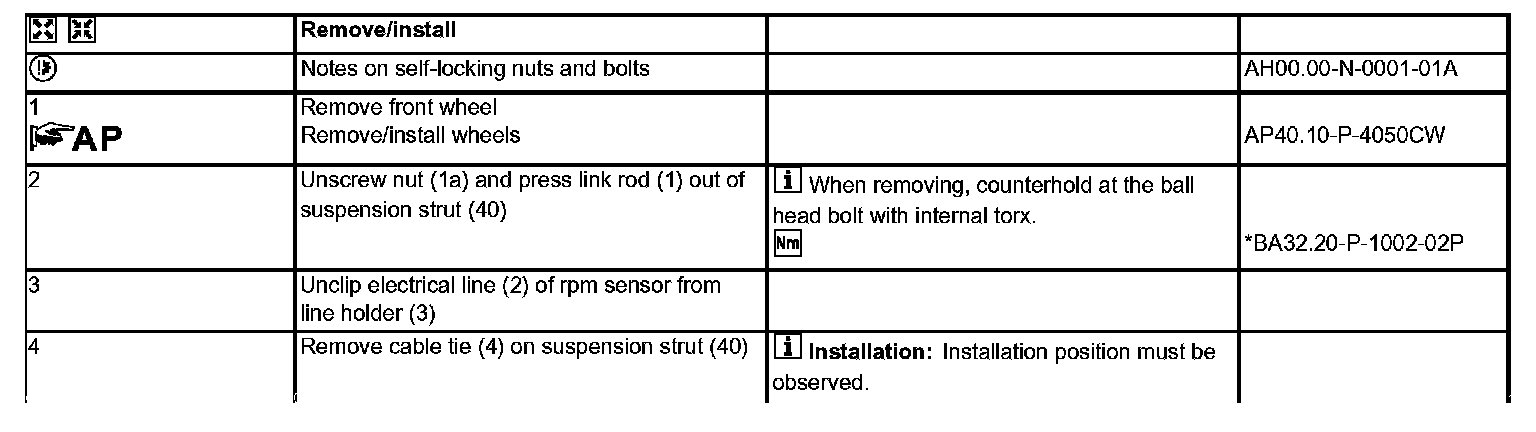

Remove/install Steps 1-4:

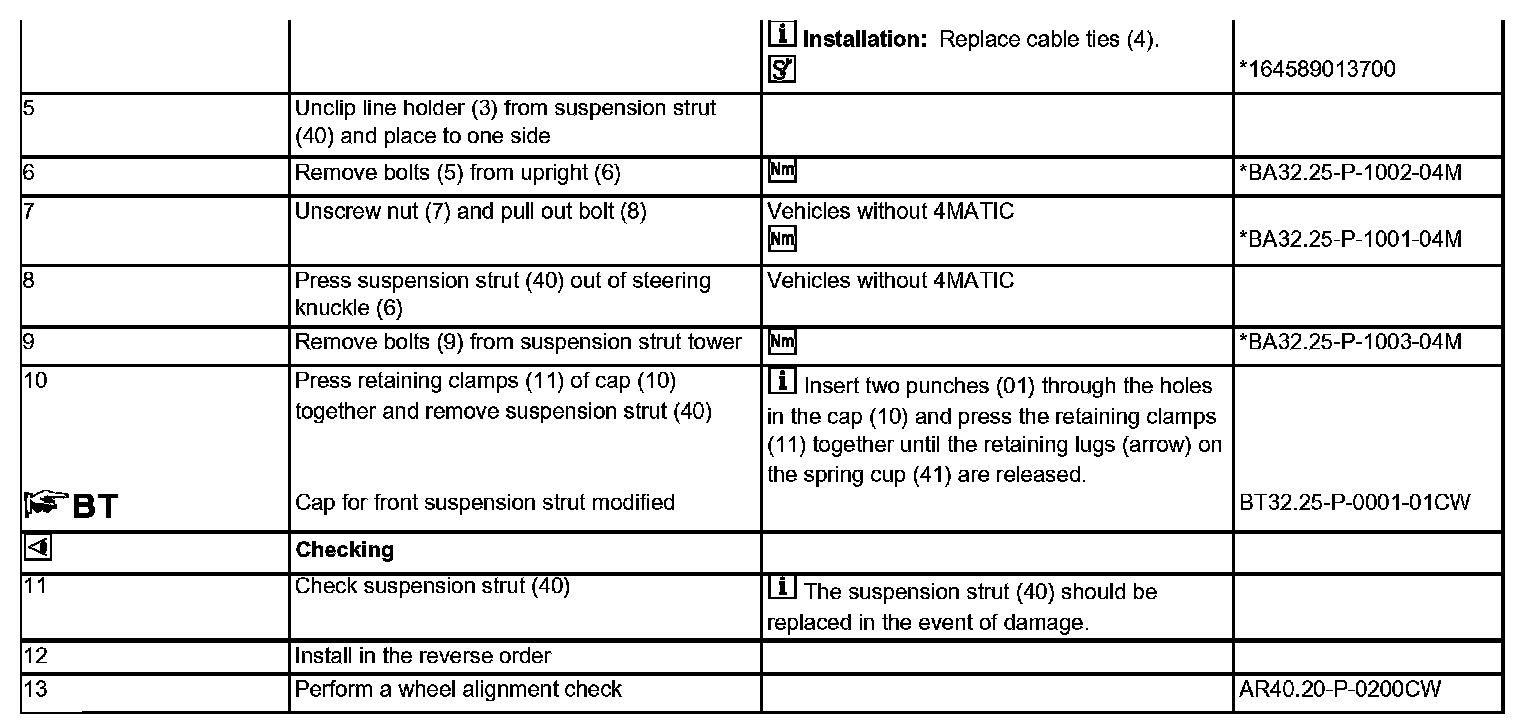

Remove/install Steps 4 (Continued)-13:

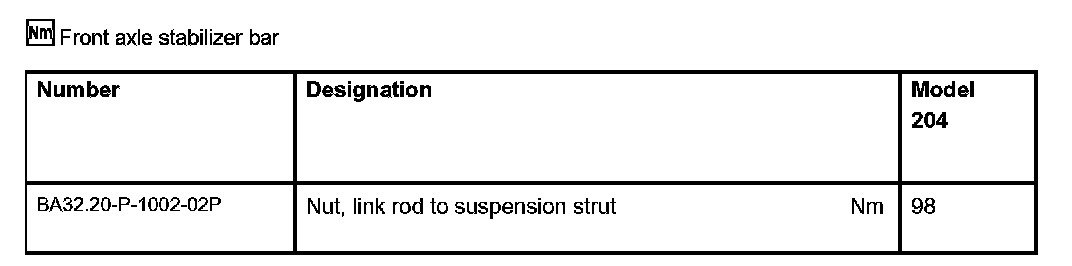

Front axle stabilizer bar:

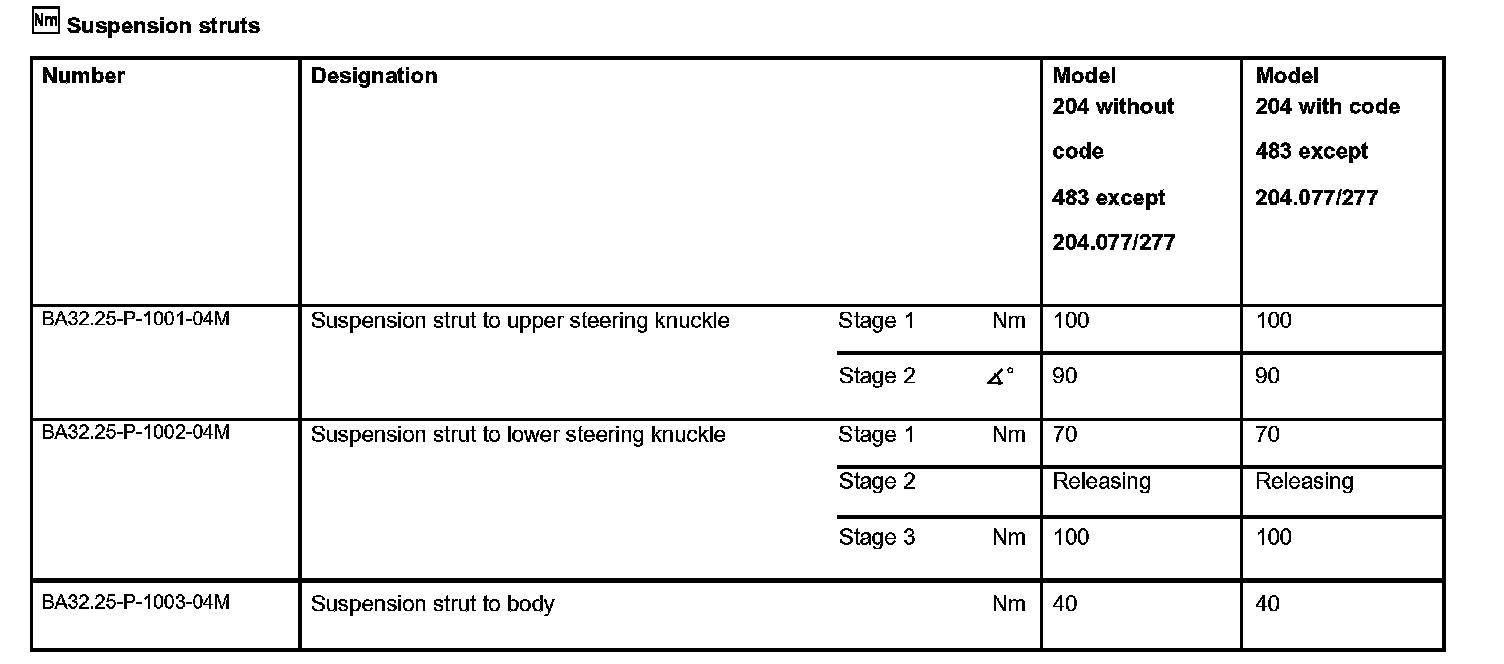

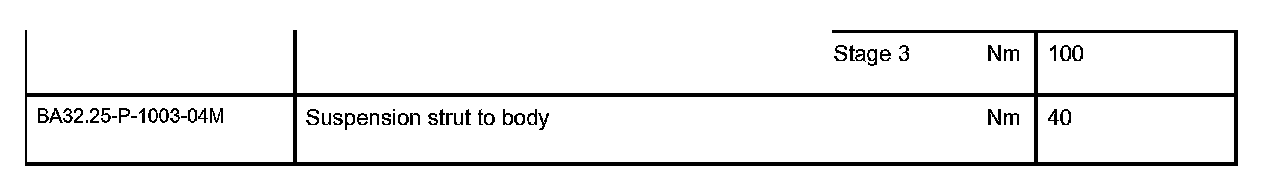

Suspension struts:

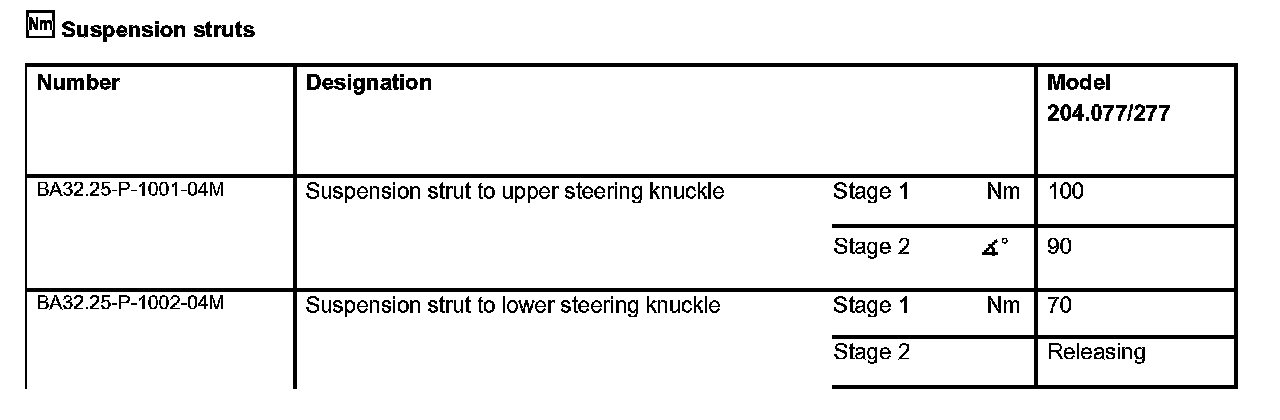

Suspension struts:

Suspension struts:

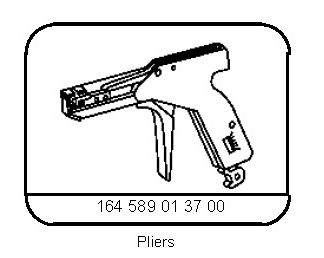

Special Tools:
