Mercedes Benz
>>
2012
>>
E 350 Coupe (207.359) V6-3.5L (276.957)
>>
Repair and Diagnosis
>>
Steering and Suspension
>>
Suspension
>>
Suspension Spring ( Coil / Leaf )
>>
Service and Repair
>>
Removal and Replacement
Removal and Replacement
AR32.20-P-0230CW Remove/install rear spring

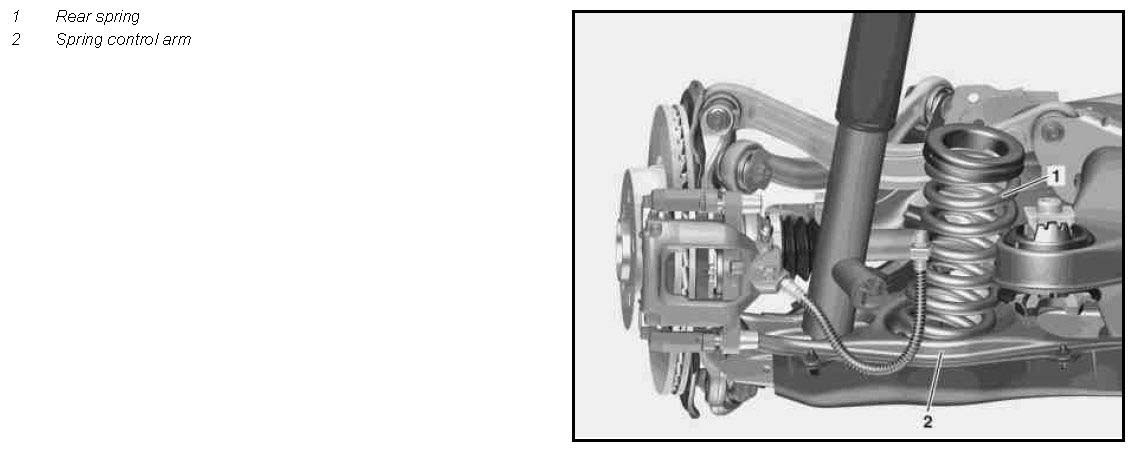

Component Identification:
Component Identification:

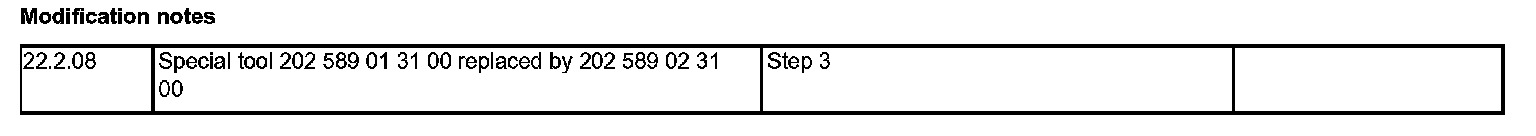

Modification notes:

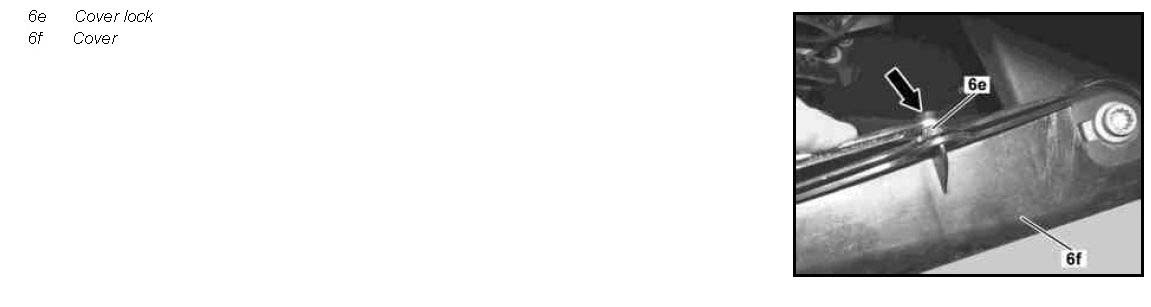

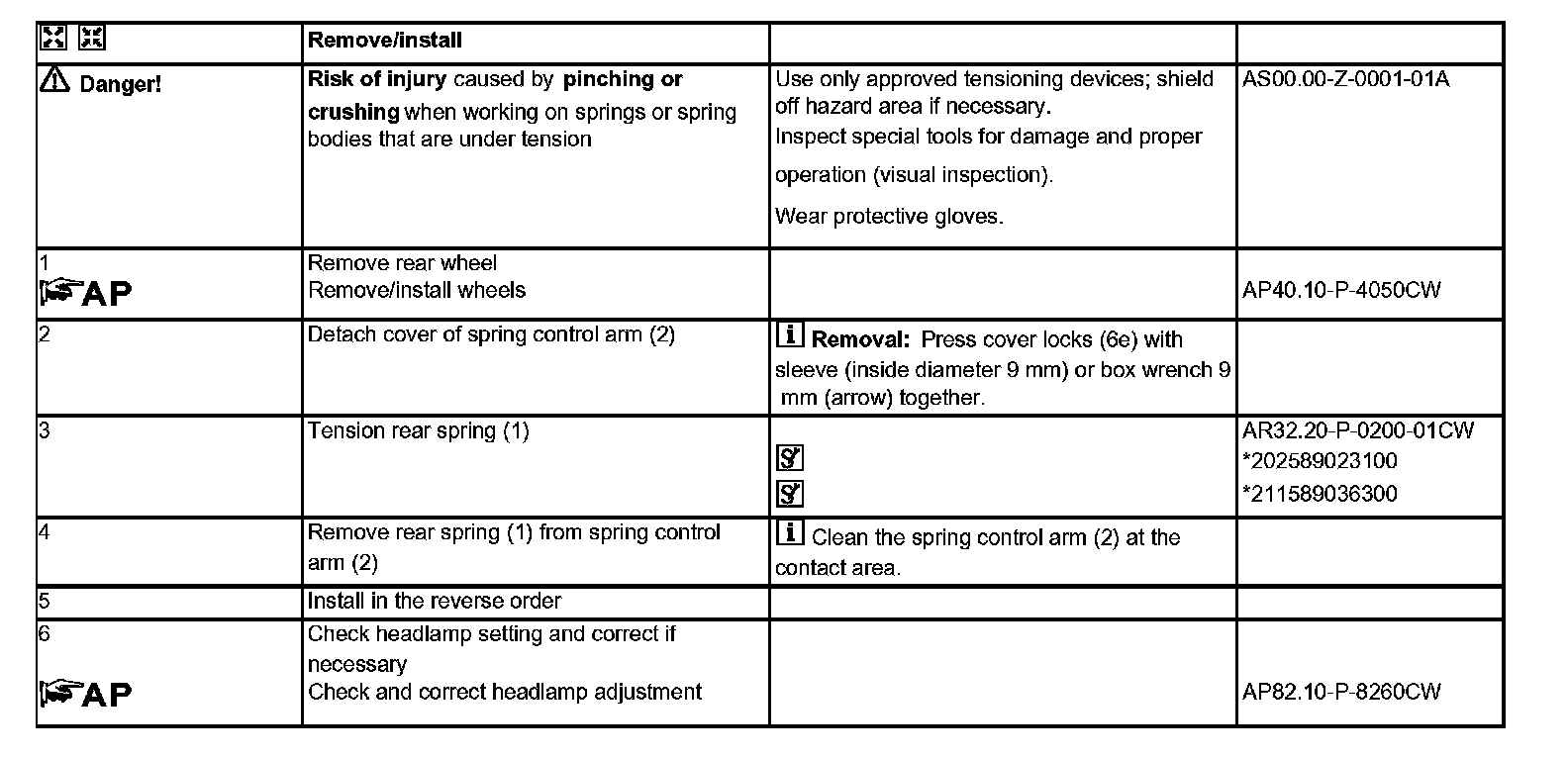

Remove/install Steps 1-6:

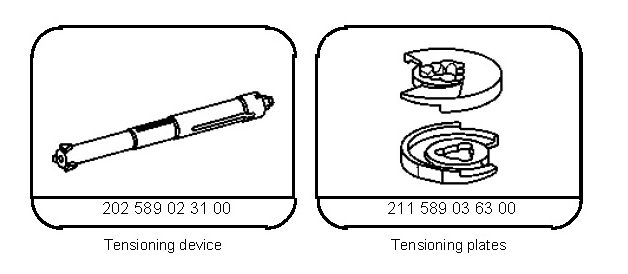

Special Tools:
