AR32.20-P-0200-06CW Clamping Rear Spring

AR32.20-P-0200-06CW Clamping rear spring

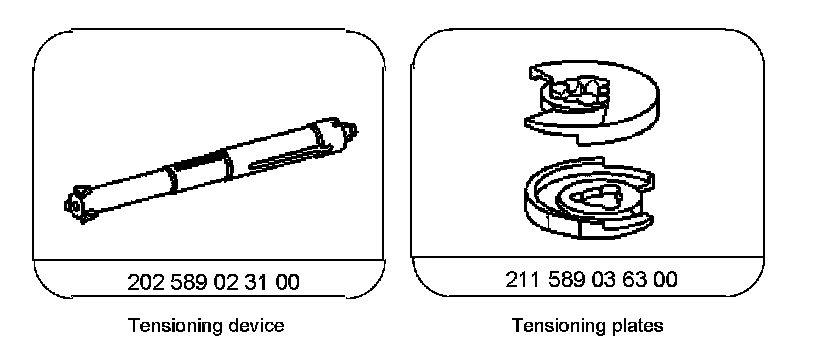

Special Tools:

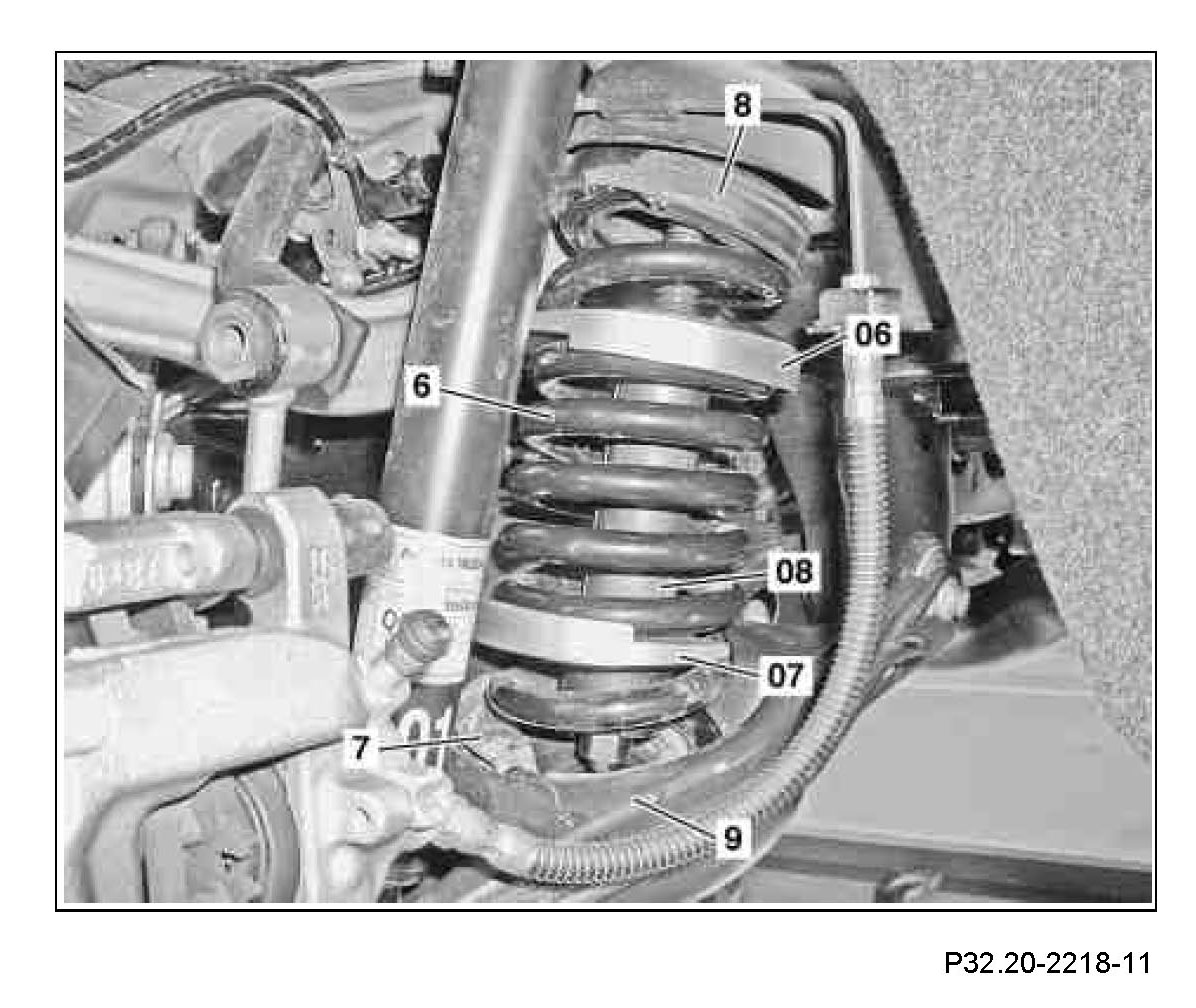

Component Identification:

Clamping rear spring

Installation: When inserting the rear spring (6) ensure that the metal plate (7) and rubber ring (8) seat correctly.
1 Insert upper clamping plate (06) and lower clamping plate (07) in the rear spring (6).
Insert clamping plates (06, 07) so that as many spring coils as possible are pre-compressed.
2 Insert tensioning device (08) from below through the spring control arm (9) into the clamping plates (06, 07) and lock at the upper clamping plate (06).
3 Tension rear spring (6).
Do not use an impact wrench.
4 Unclamp in the reverse order.
