Home >> Mercedes Benz >> 2012 >> E 350 Coupe (207.359) V6-3.5L (276.957) >> Repair and Diagnosis >> Steering and Suspension >> Suspension >> Stabilizer Bar >> Service and Repair >> AR32.20-P-0315CW Remove/Install Stabilizer Bar on Rear Axle

AR32.20-P-0315CW Remove/Install Stabilizer Bar on Rear Axle



AR32.20-P-0315CW Remove/install stabilizer bar on rear axle

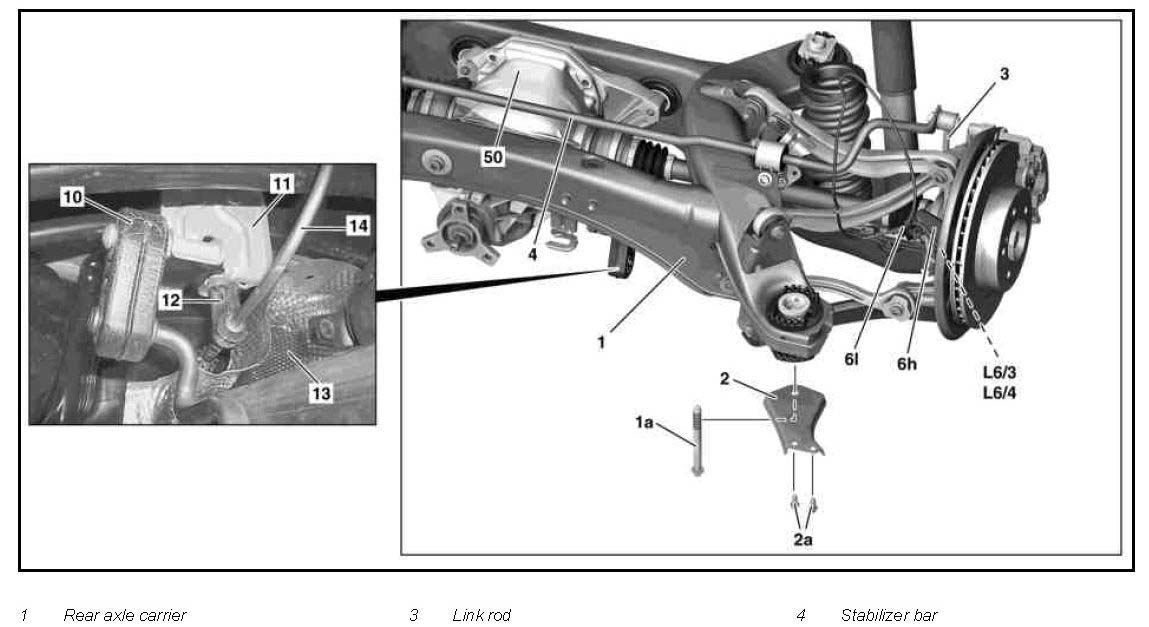

Component Identification:




Modification notes:

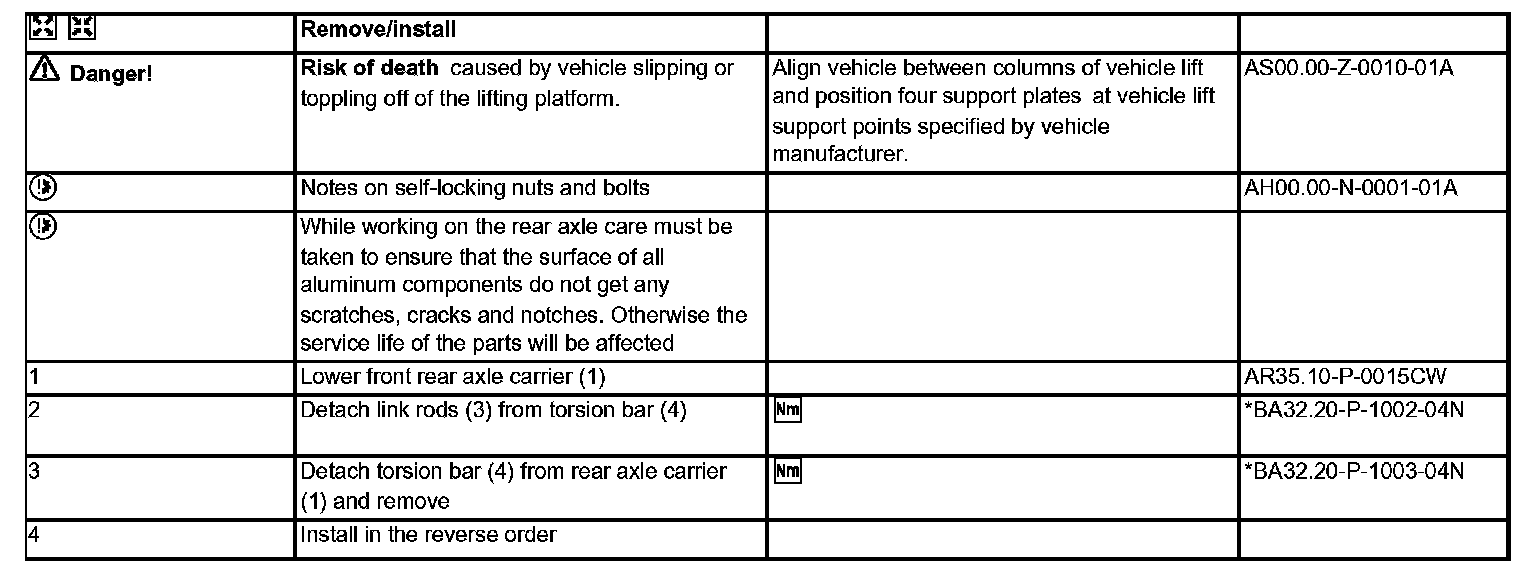

Remove/install Steps 1-4:

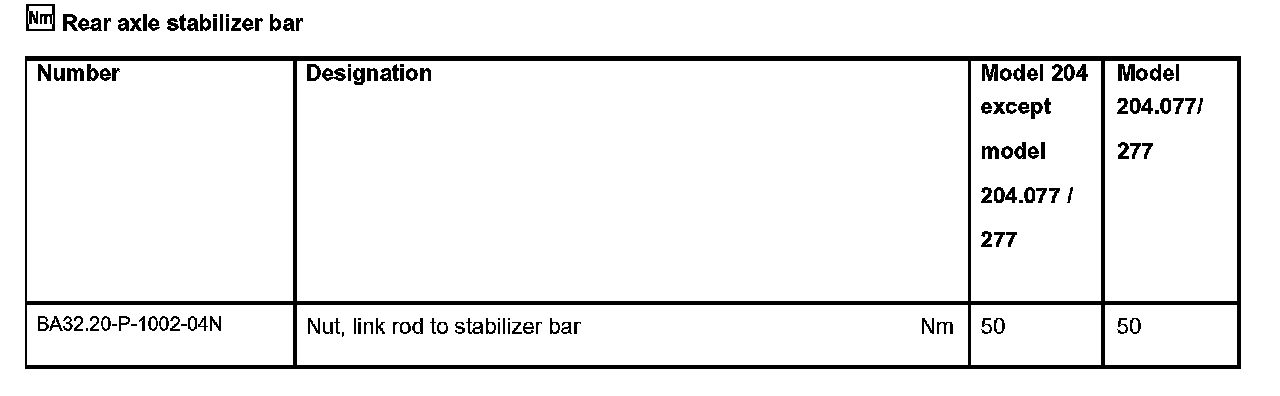

Rear axle stabilizer bar:

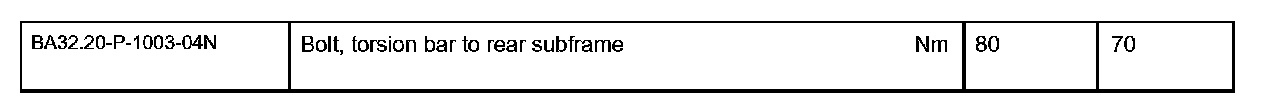

Rear axle stabilizer bar:
