AR35.20-P-0110CW Remove/Install Camber Strut
AR35.20-P-0110CW Remove/Install Camber Strut
AR35.20-P-0110CW Remove/install camber strut

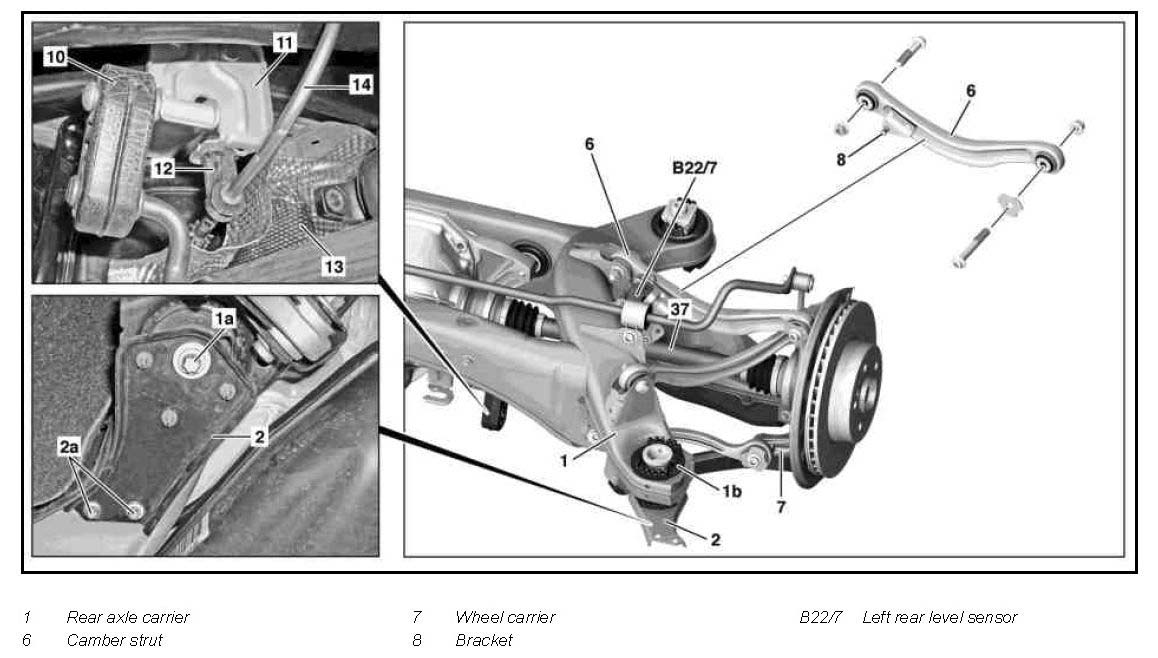

Component Identification:

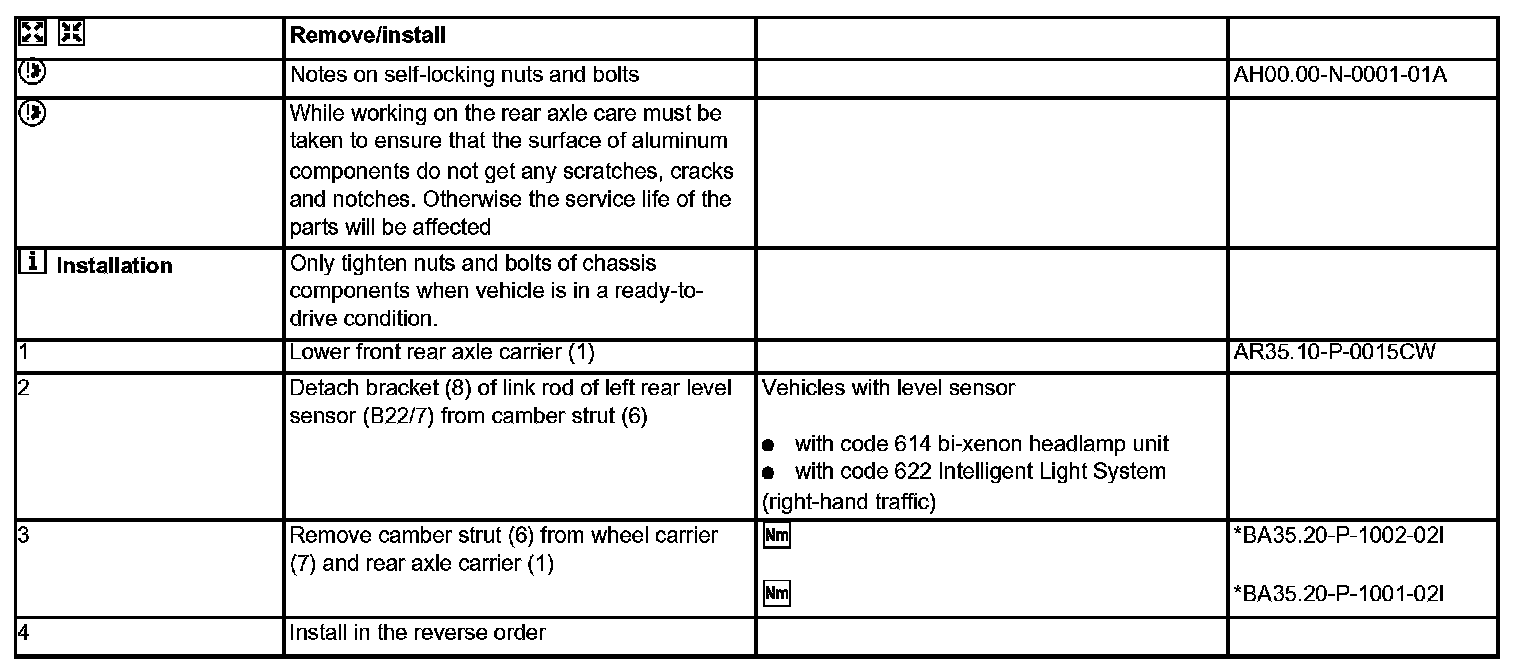

Remove/install Steps 1-4:

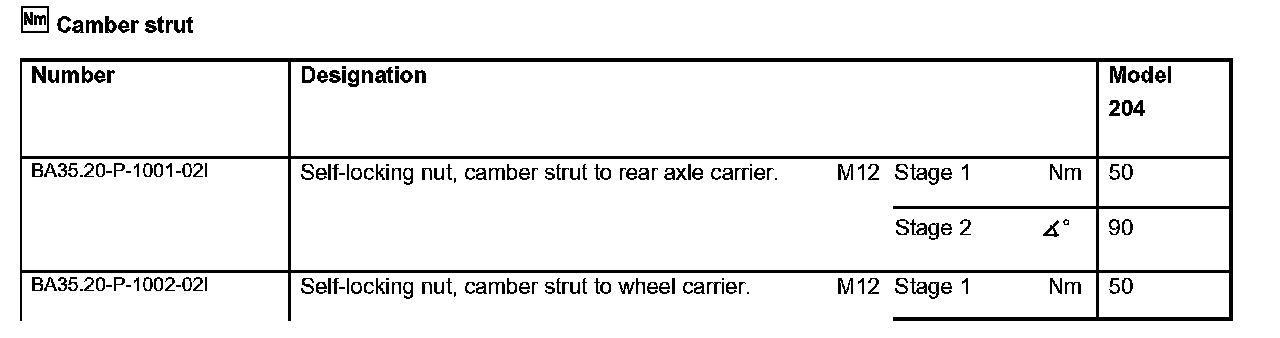

Camber strut:
Camber strut:
