AR33.15-P-0160CW Remove/Install Torque Strut at Front Axle

AR33.15-P-0160CW Remove/Install Torque Strut At Front Axle
MODEL 172, 204, 207

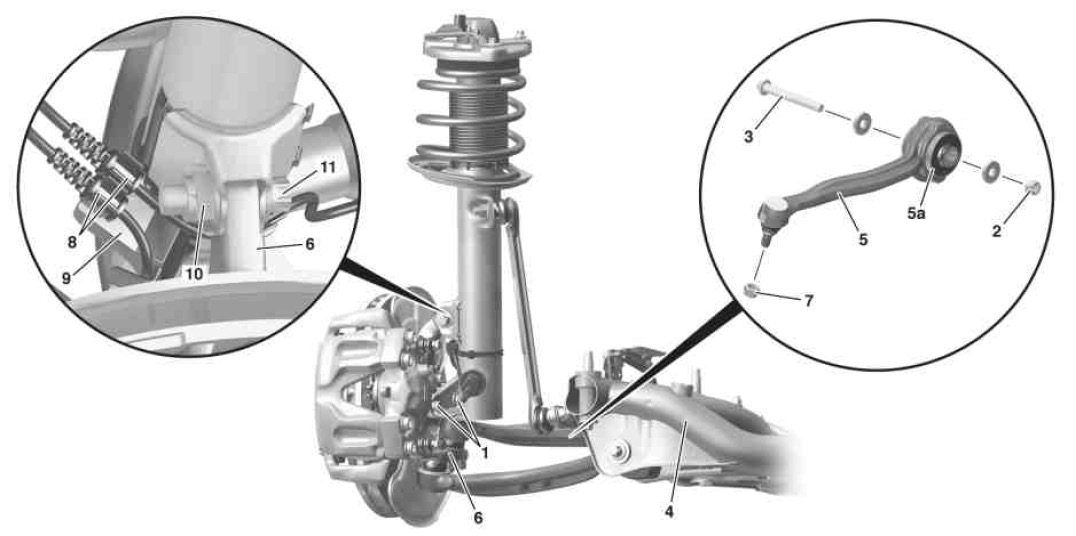

Shown on model 204 without 4MATIC

1 Bolts
2 Nut
3 Screw
4 Front axle carrier
5 Torque strut
5a Rubber bushing
6 Steering knuckle
7 Nut
8 Electrical line
9 Line bracket
10 Nut
11 Screw

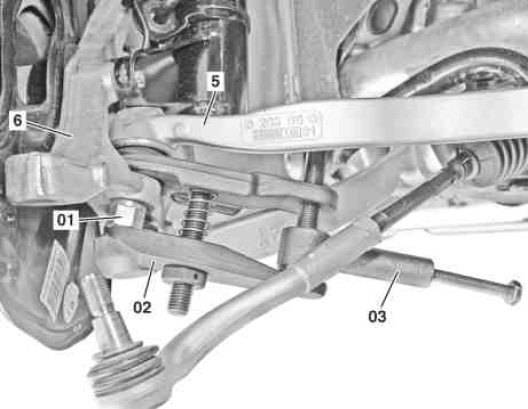

Shown on model 204 without 4MATIC

01 Thrust piece
02 Puller
03 Press
5 Torque strut
6 Steering knuckle





























001 589 51 33 00
Hollow piston cylinder





163 589 03 43 00
Press





171 589 00 34 00
Thrust piece





212 589 00 43 00
Removal and insertion tool





220 589 06 43 00
Press out/in tool





221 589 00 33 00
Puller





221 589 05 33 00
Puller





652 589 00 33 21
Hand pump





652 589 00 33 23
Hydraulic hose (complete)
