Steering Shaft Coupler: Service and Repair
AR46.10-P-8000CW Remove/install
steering
coupling

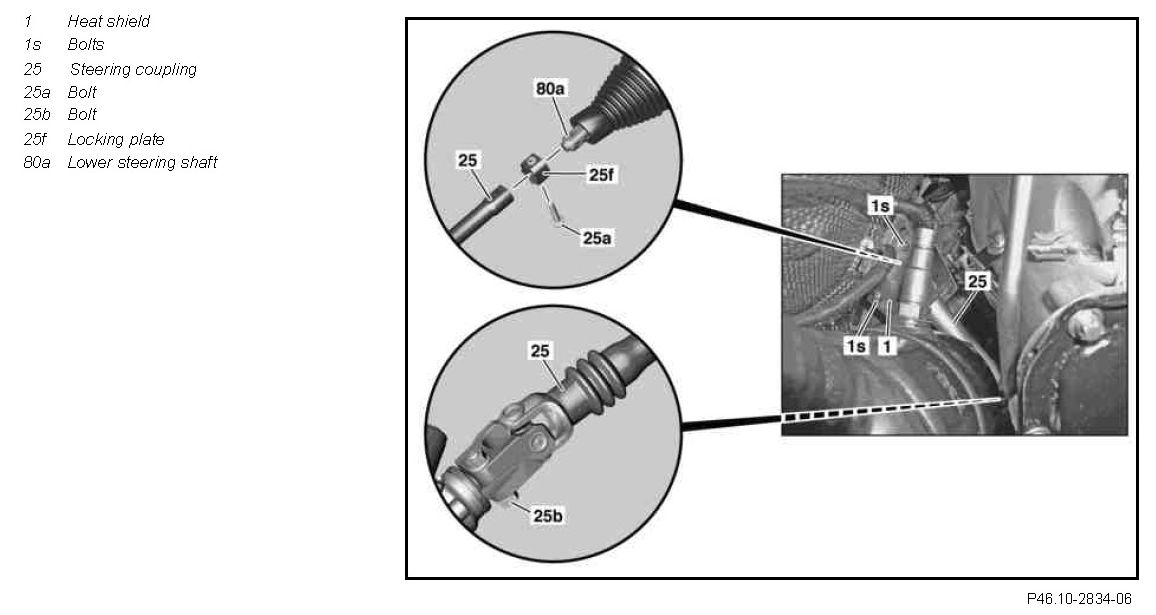

Component Identification:

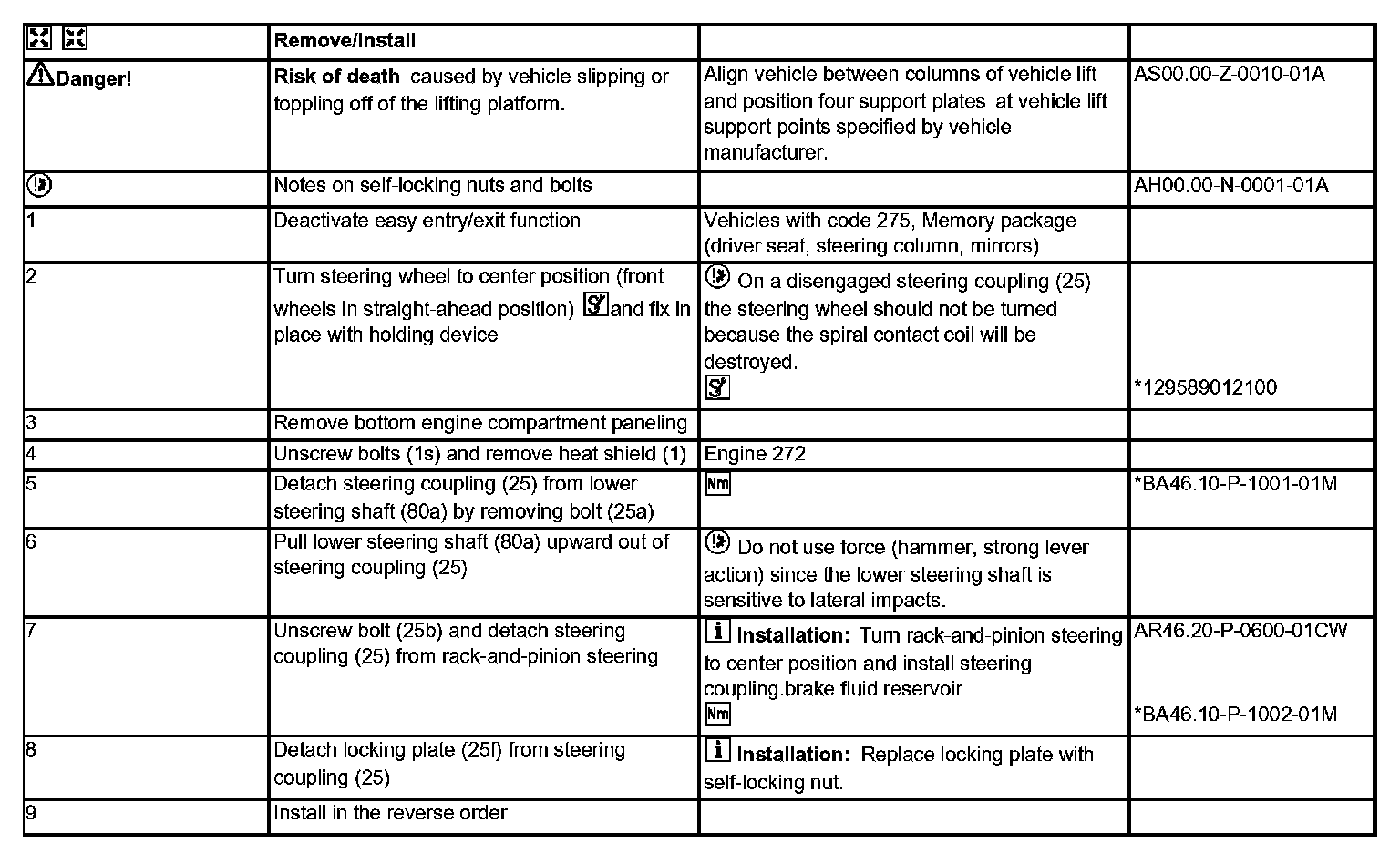

Remove/install Steps 1-9:

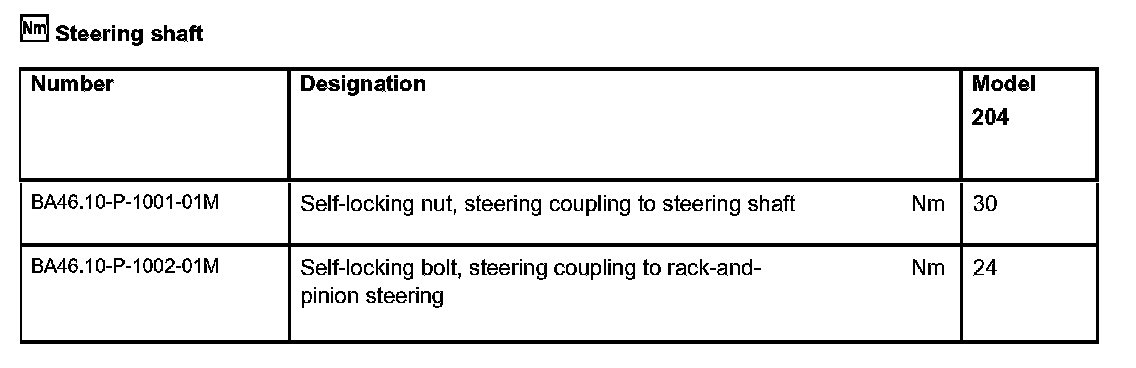

Steering shaft:

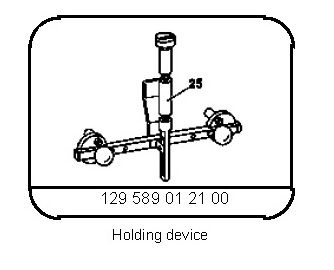

Special Tools:
