AR46.20-P-3501CW Remove/Install Pipeline Between Control Head and Steering Gear Housing



AR46.20-P-3501CW Remove/install pipeline between control head and steering gear housing

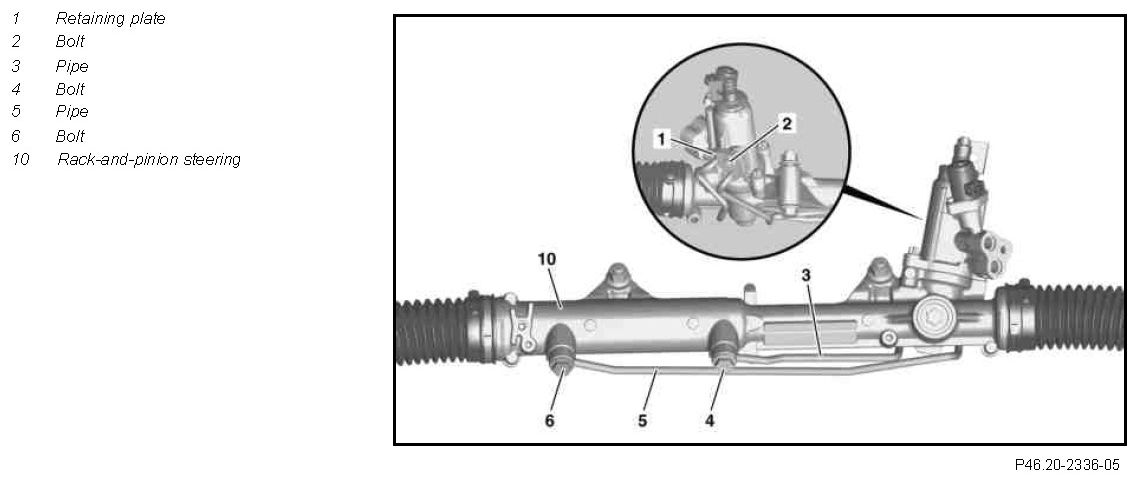

Component Identification:

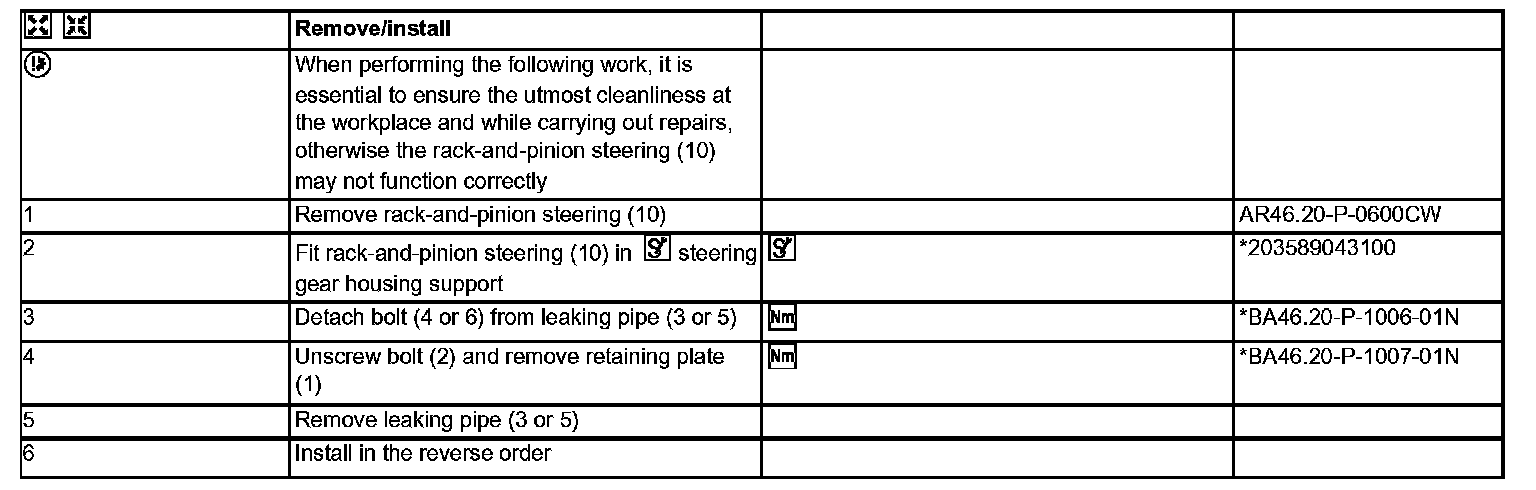

Remove/install Steps 1-6:

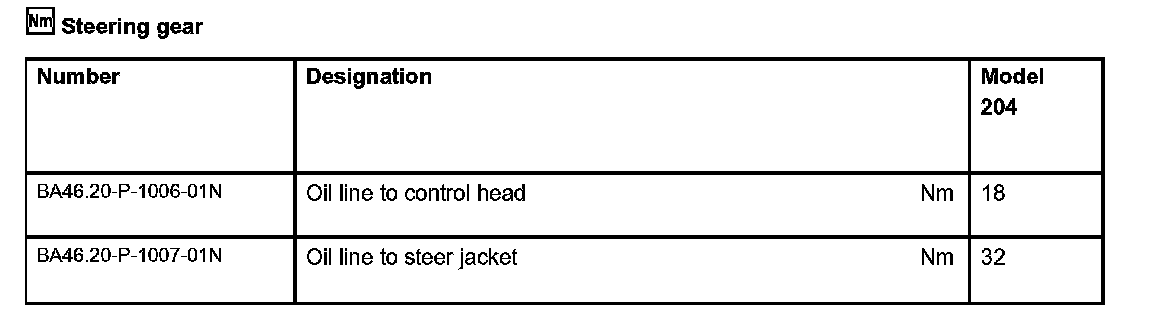

Steering gear:

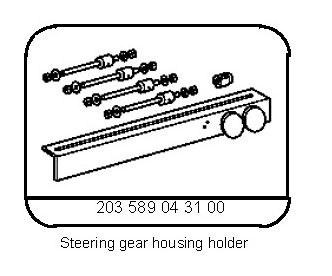

Special Tools:
