E 350 Coupe (207.359) V6-3.5L (276.957)
>>
Repair and Diagnosis
>>
Steering and Suspension
>>
Relays and Modules - Steering and Suspension
>>
Relays and Modules - Steering
>>
Steering Column Control Module
>>
Service and Repair
>>
AR54.25-P-2802CW Remove/Install Steering Column Module
AR54.25-P-2802CW Remove/Install Steering Column Module
AR54.25-P-2802CW Remove/Install Steering Column Module

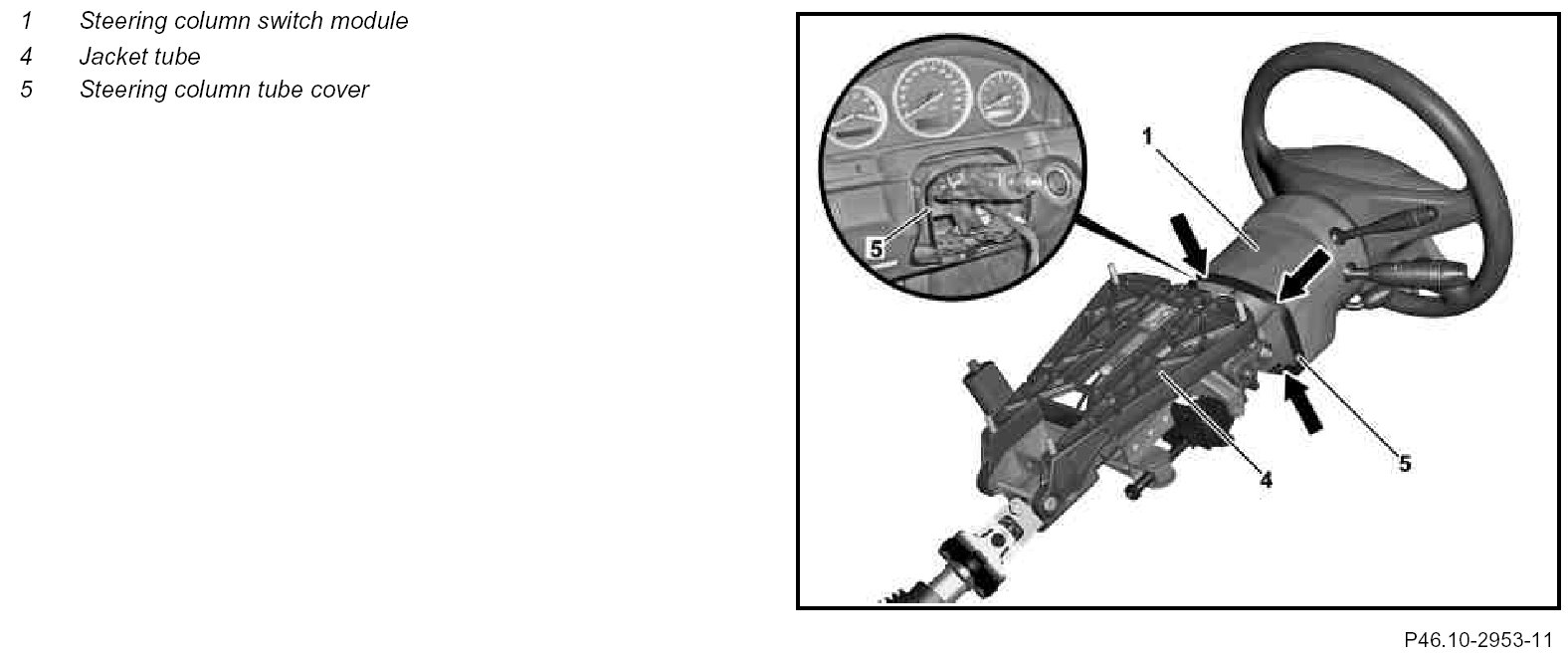

Component Identification:

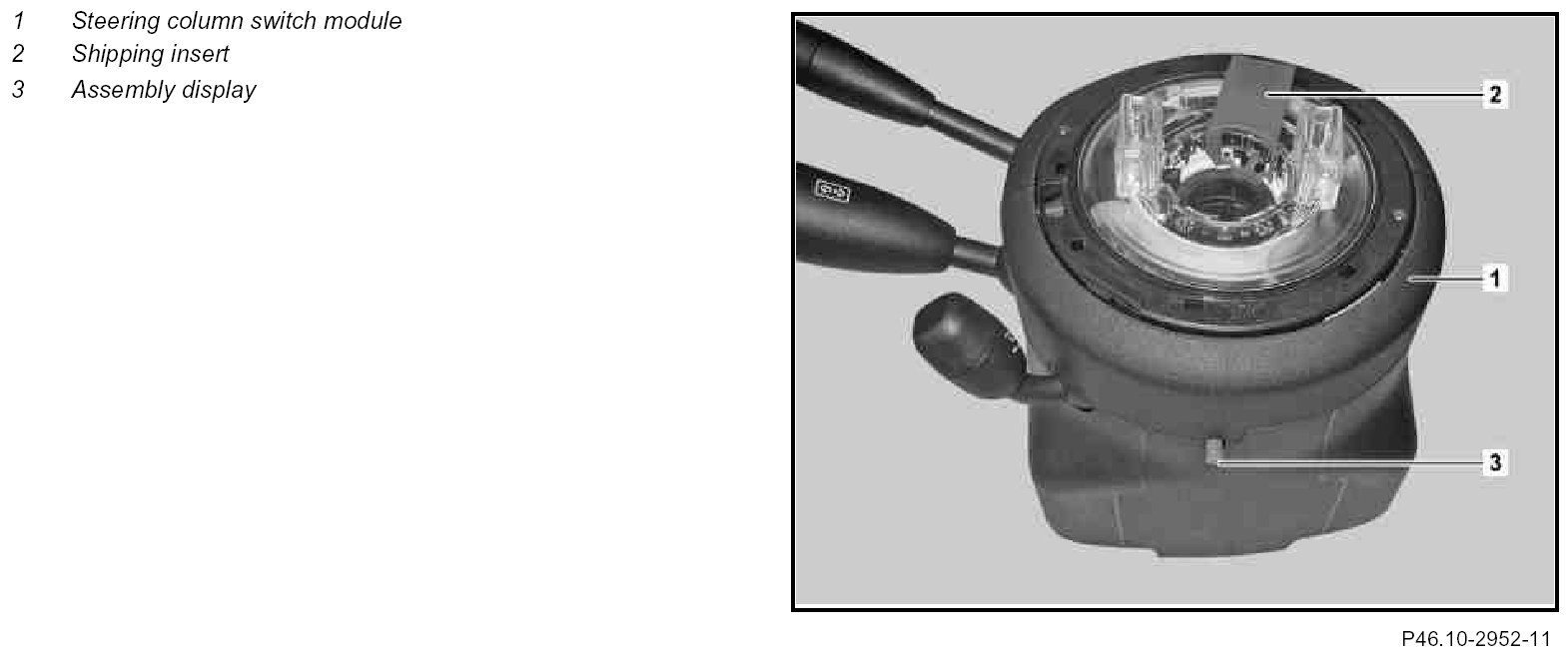

Component Identification:

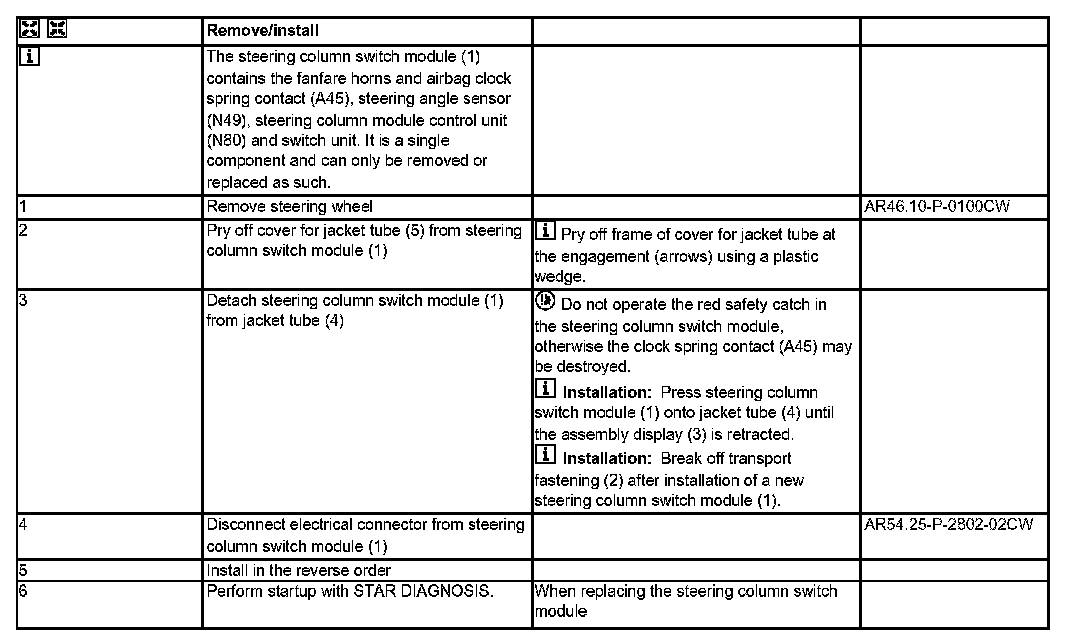

Steps 1 - 6:
