Home >> Mercedes Benz >> 2012 >> E 350 Coupe (207.359) V6-3.5L (276.957) >> Repair and Diagnosis >> Starting and Charging >> Starting System >> Starter Motor >> Specifications

Starter Motor: Specifications

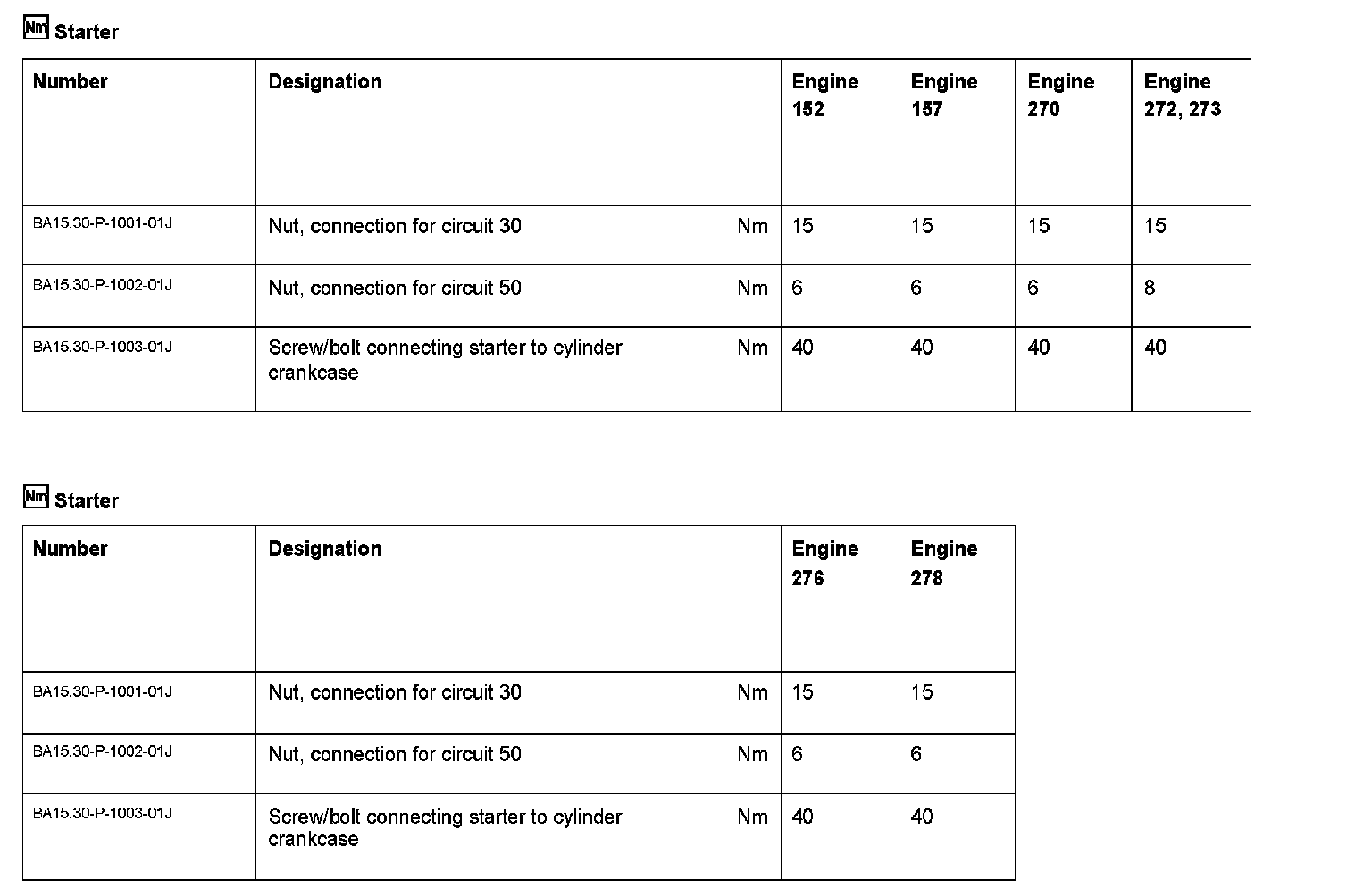

BA15.30-P-1000-01J Starter
Engine 152, 157, 270, 272, 273, 276, 278
