Starter Motor: Service and Repair

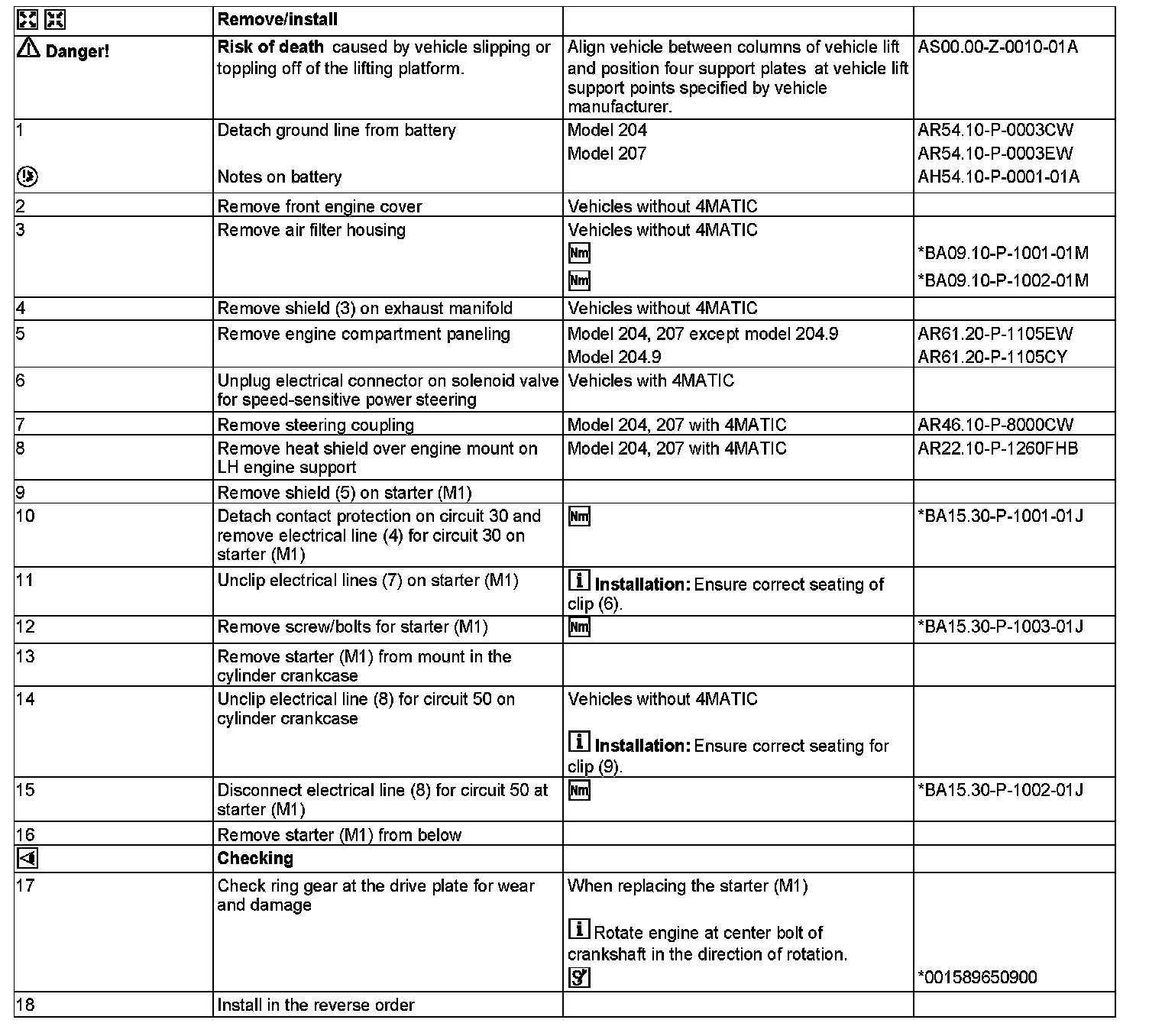

AR15.30-P-7100FH Remove/Install Starter
ENGINES 276 in MODEL 204, 207

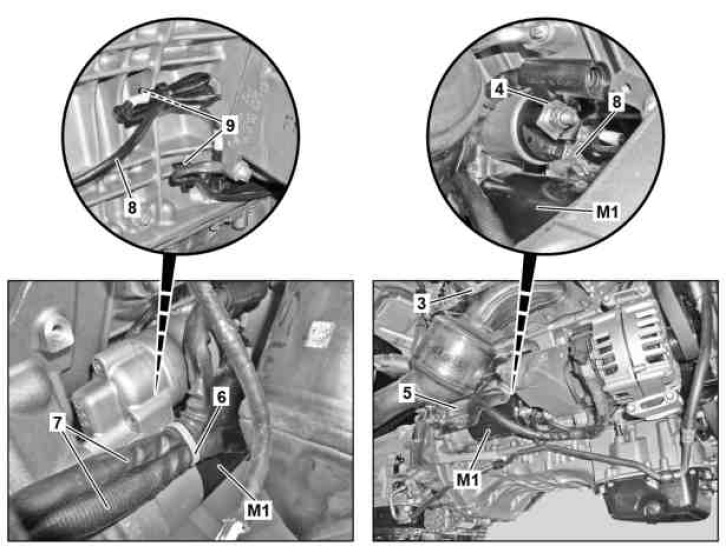

Shows model 204.057

3 Shield
4 Electrical line
5 Shield
6 Clip
7 Electrical line
8 Electrical line
9 Clip

M1 Starter














001 589 65 09 00
Wrench socket
