GF54.15-P-0800CA Fuse and Relay Box, As-Built Configuration

GF54.15-P-0800CA Fuse and Relay Box, As-Built Configuration

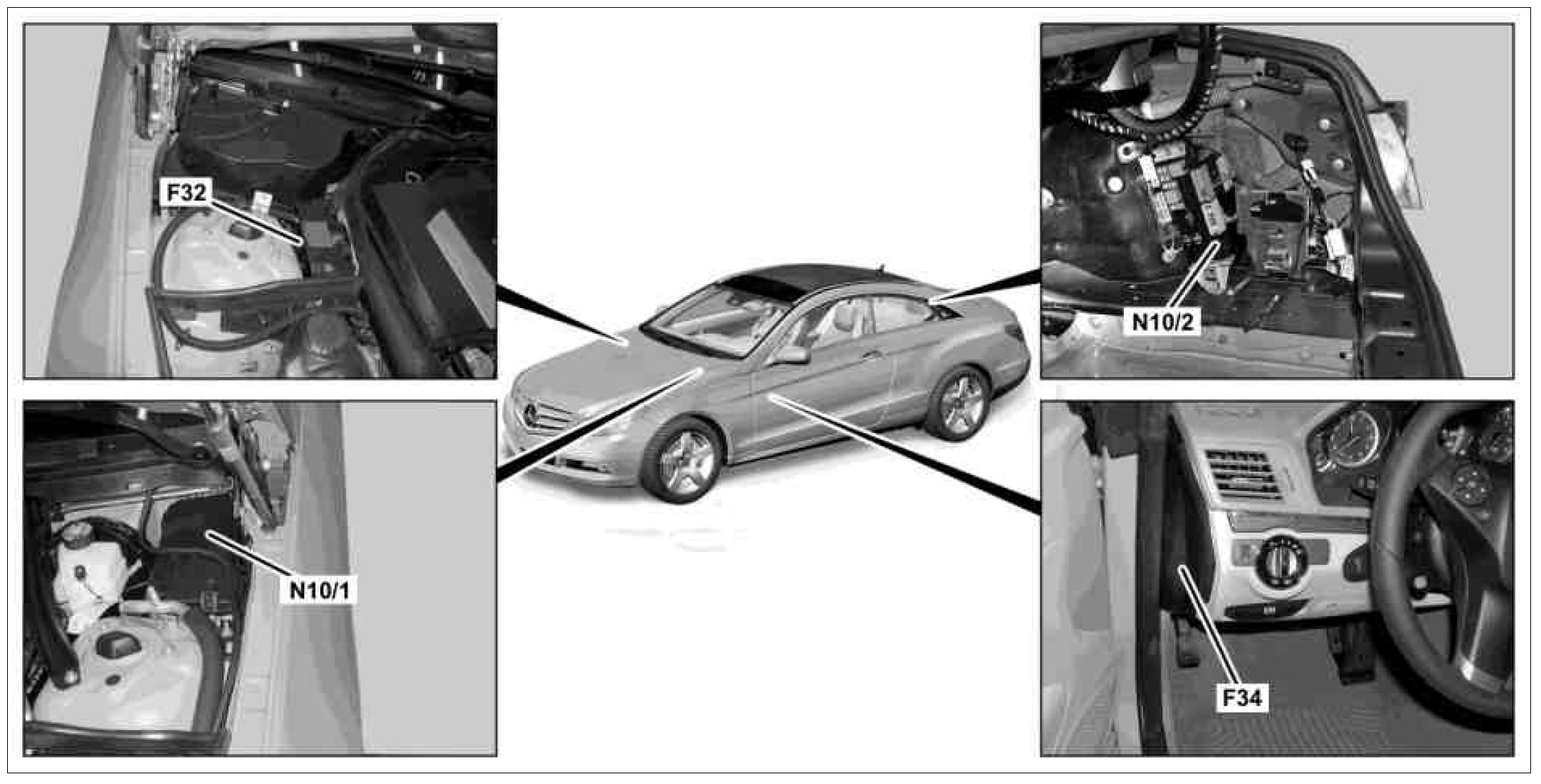

Illustrated on model 207.3
F32 Front electrical prefuse box
F32 Interior fuse box
N10/1 Front SAM control unit with fuse and relay module
N10/2 Rear SAM control unit with fuse and relay module
