AR54.15-P-1310EC Remove/Install Driver's Side Interior Fuse Box
AR54.15-P-1310EC Remove/Install Driver's Side Interior Fuse Box
AR54.15-P-1310EC Remove/install Driver's Side Interior Fuse Box

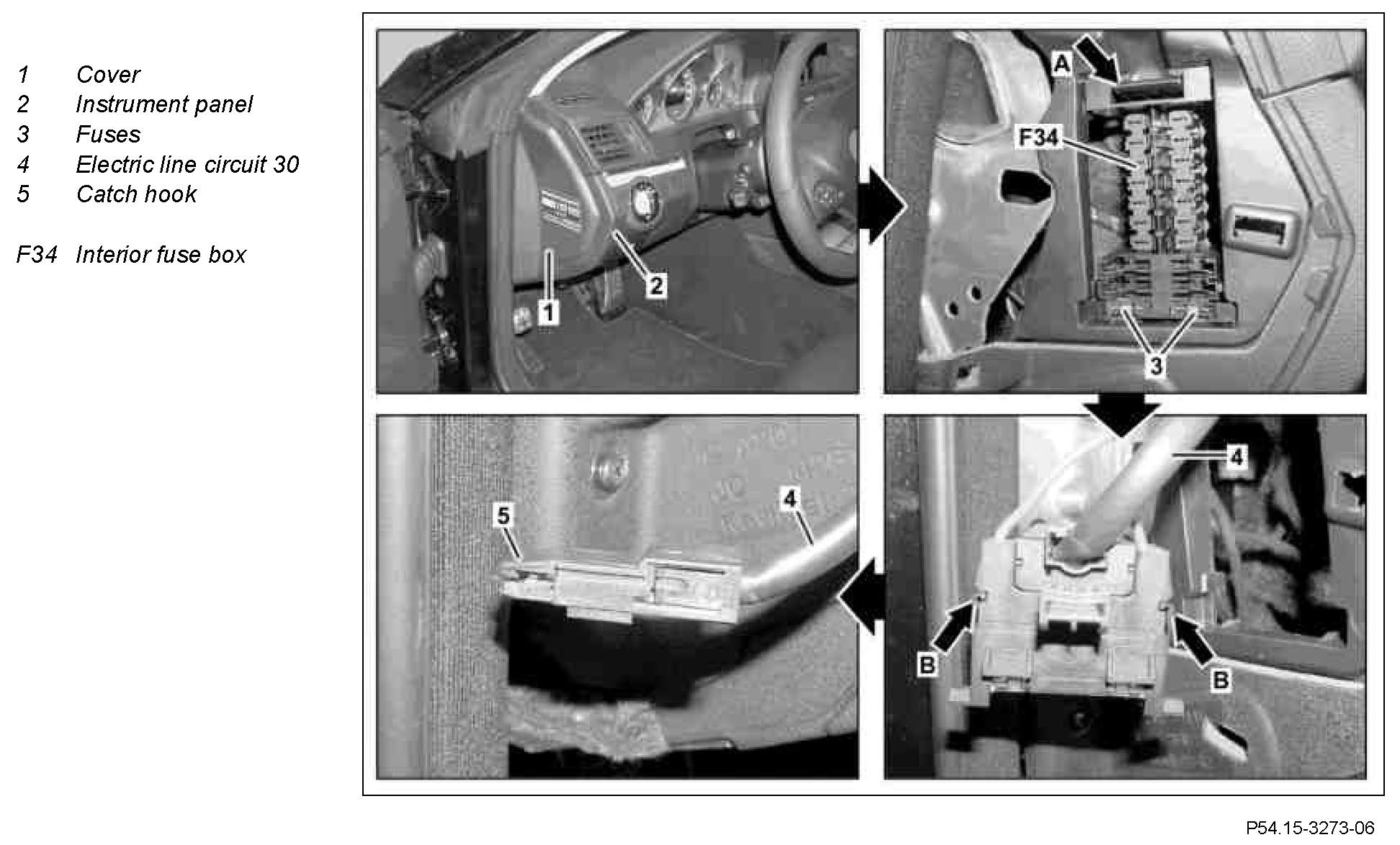

Component Identification:

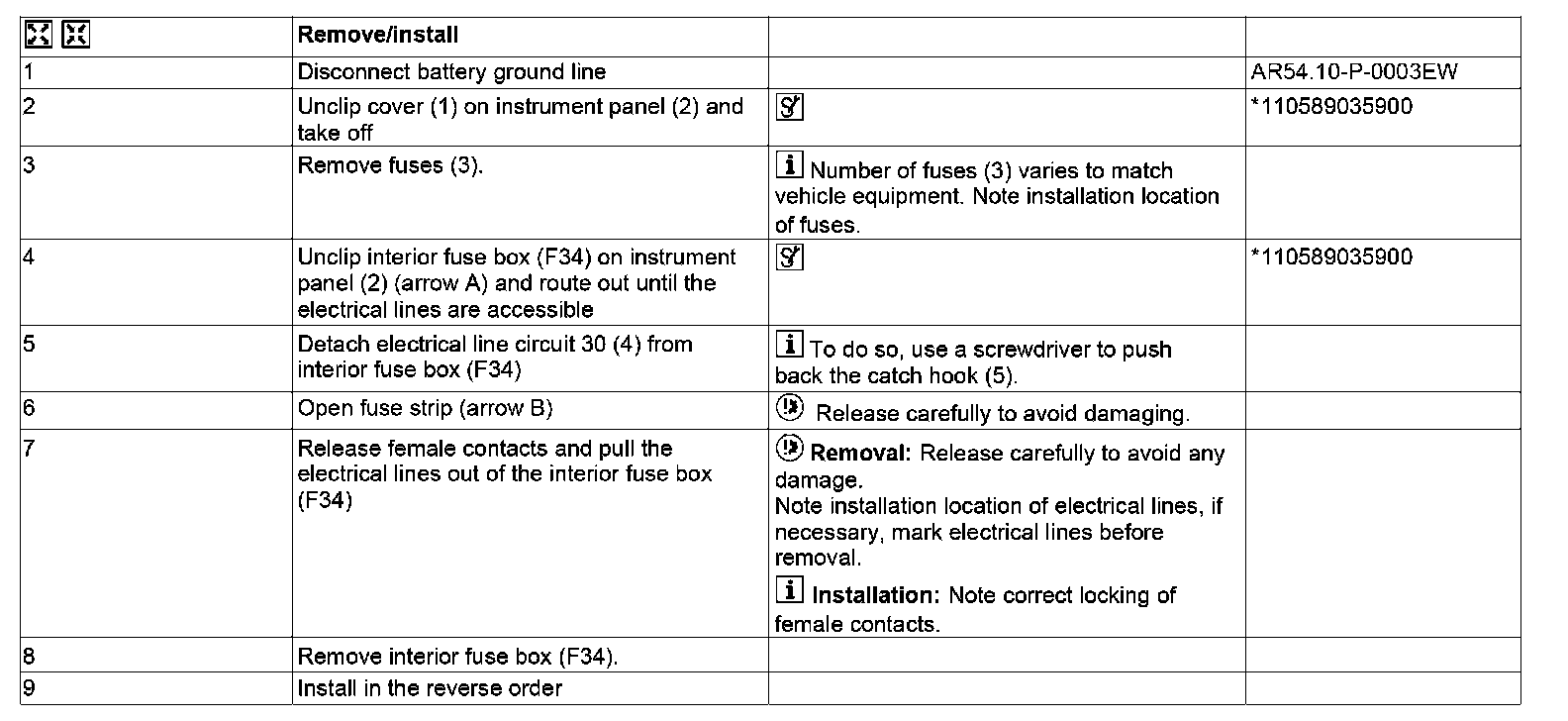

Steps 1-9:

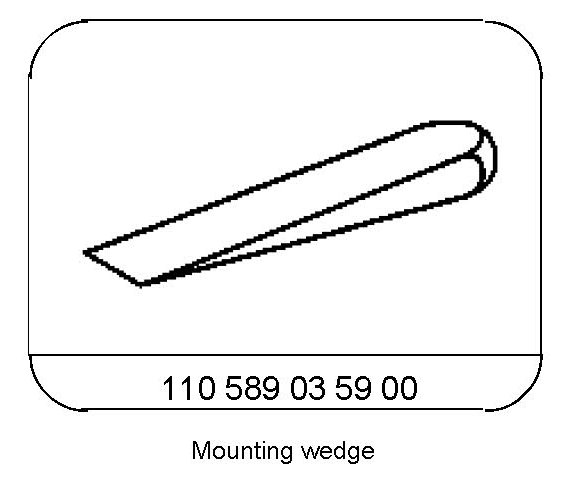

Special Tools:
