Alternator Pulley / Clutch: Service and Repair

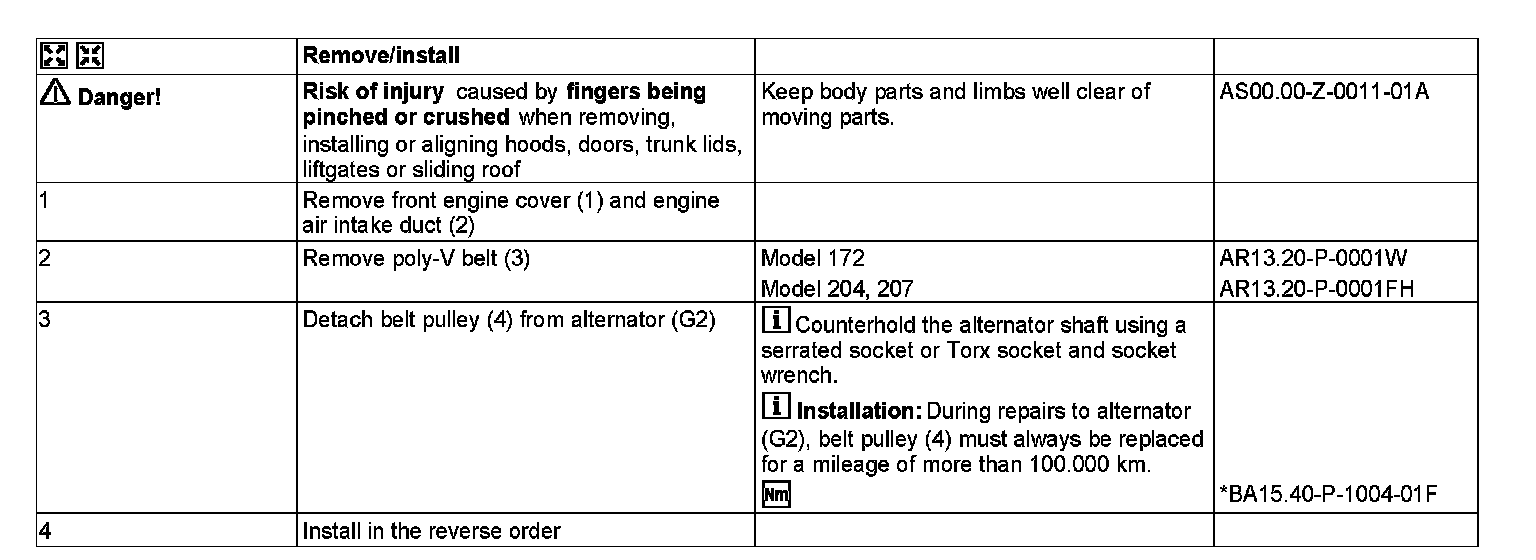

AR15.40-P-5710W Remove/Install Alternator Belt Pulley
ENGINES 276 in MODELS 172, 204, 207

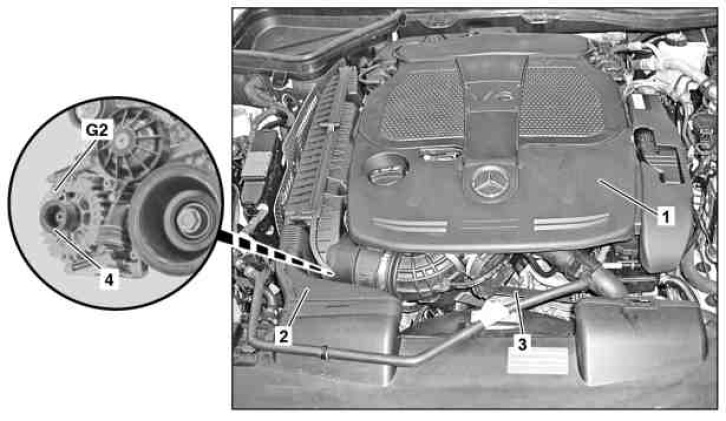

Shown on model 172

1 Front engine cover
2 Engine air intake duct
3 Poly-V belt
4 Belt pulley

G2 Generator
