Clutch Switch: Service and Repair



AR25.20-P-0095CW Remove/install clutch pedal switch
- with TRANSMISSION 716.6/711.6

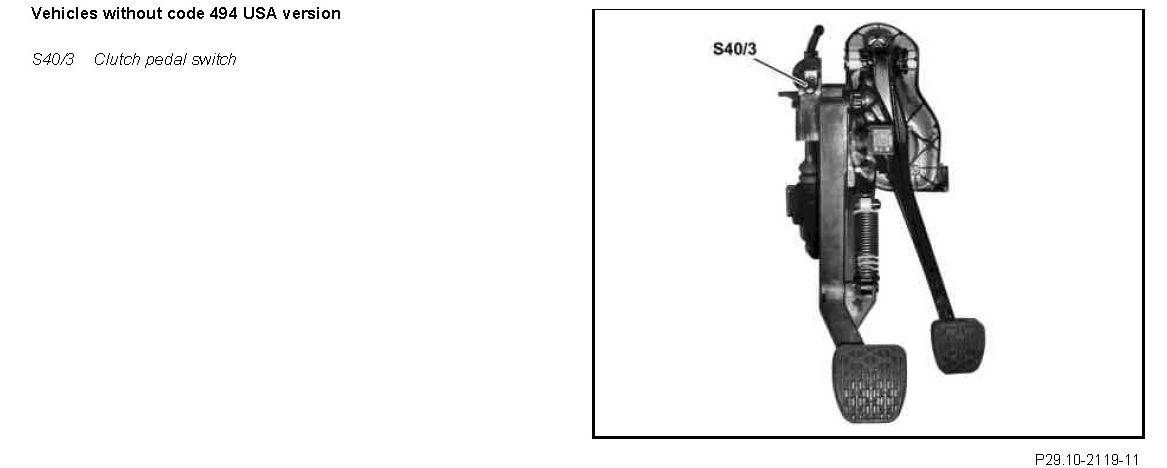

Component Identification:

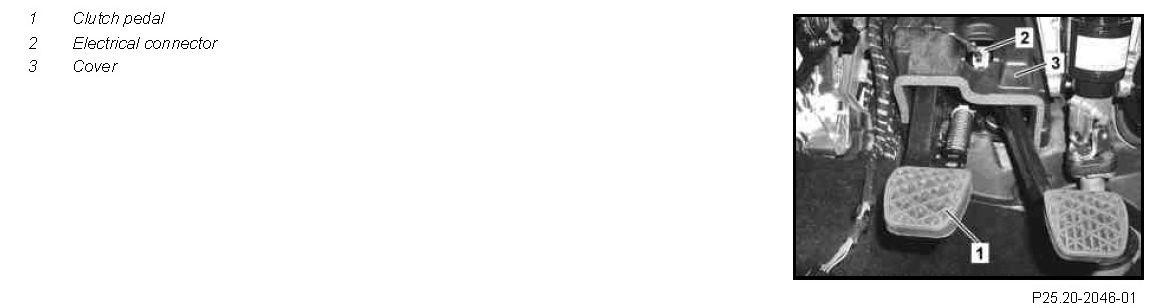

Component Identification:

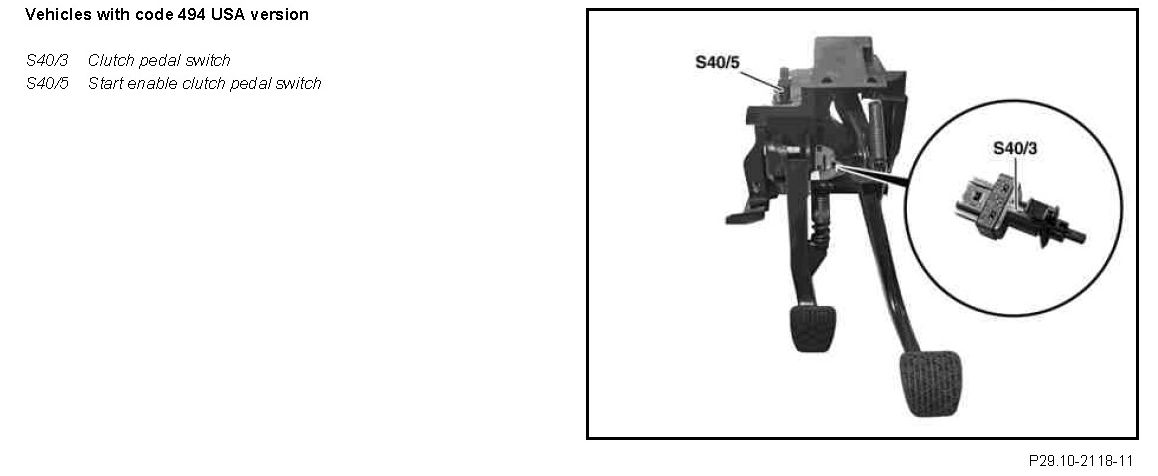

Component Identification:

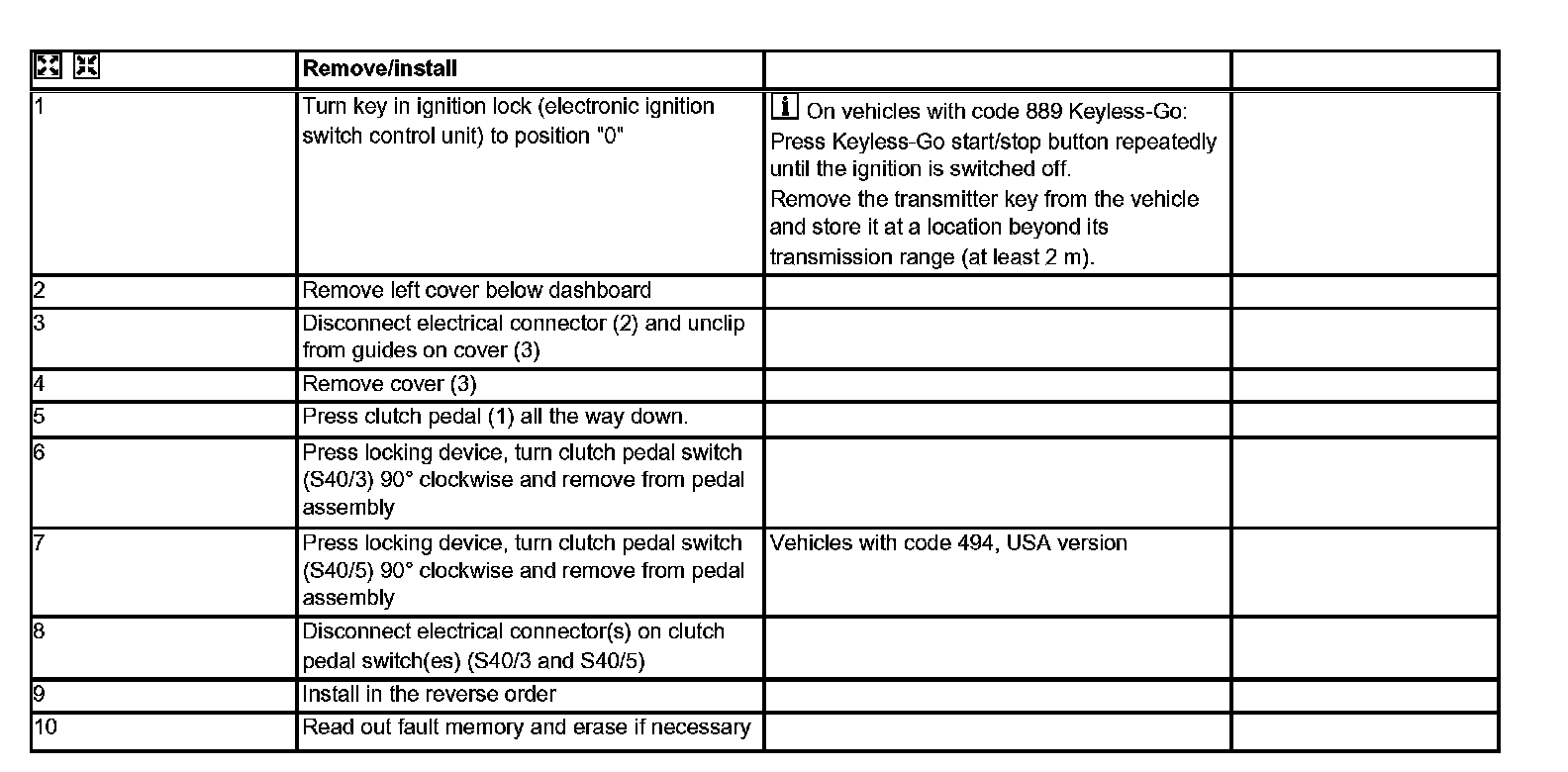

Remove/install Steps 1-10:
