Mercedes Benz
>>
2012
>>
E 350 Coupe (207.359) V6-3.5L (276.957)
>>
Repair and Diagnosis
>>
Sensors and Switches
>>
Sensors and Switches - Restraints and Safety Systems
>>
Impact Sensor
>>
Service and Repair
>>
AR91.60-P-0760EC Remove/Install Side Deployment Pressure Sensor
AR91.60-P-0760EC Remove/Install Side Deployment Pressure Sensor
AR91.60-P-0760EC Remove/Install Side Deployment Pressure Sensor

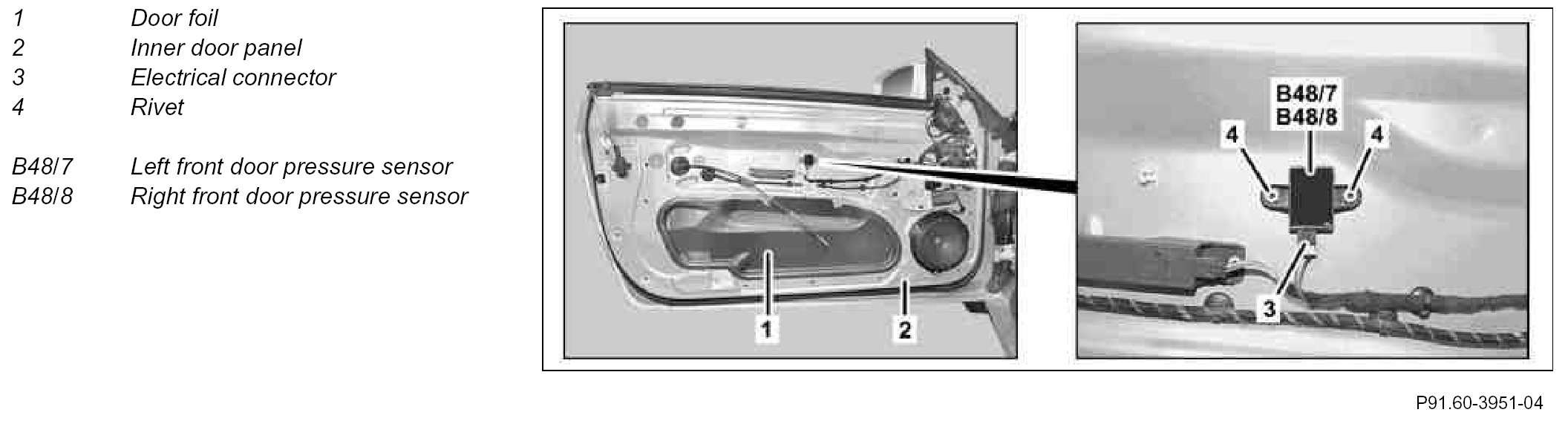

Component Identification:

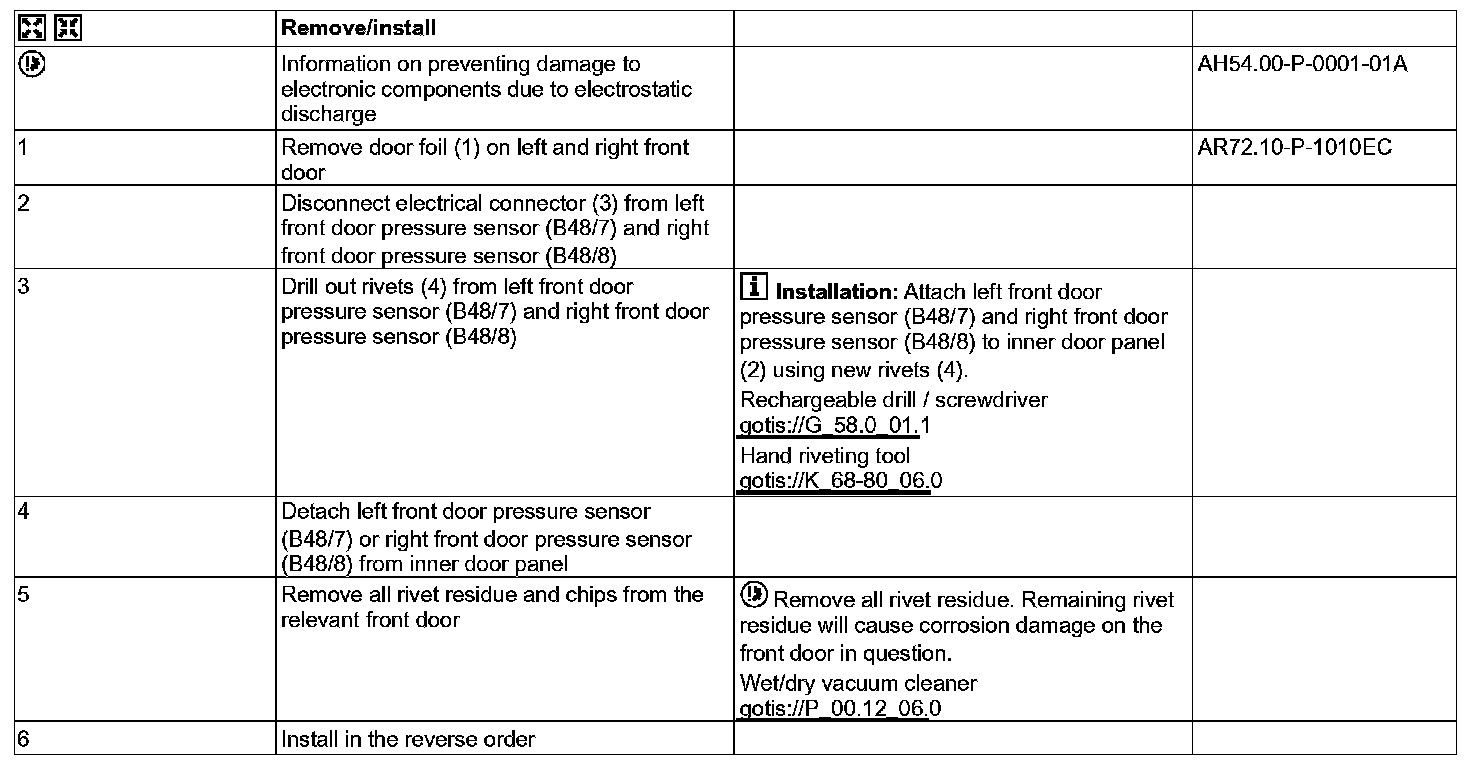

Steps 1 - 6:
