Cabin Temperature Sensor / Switch: Service and Repair
AR83.30-P-8091EC Remove/install Interior Temperature Sensor

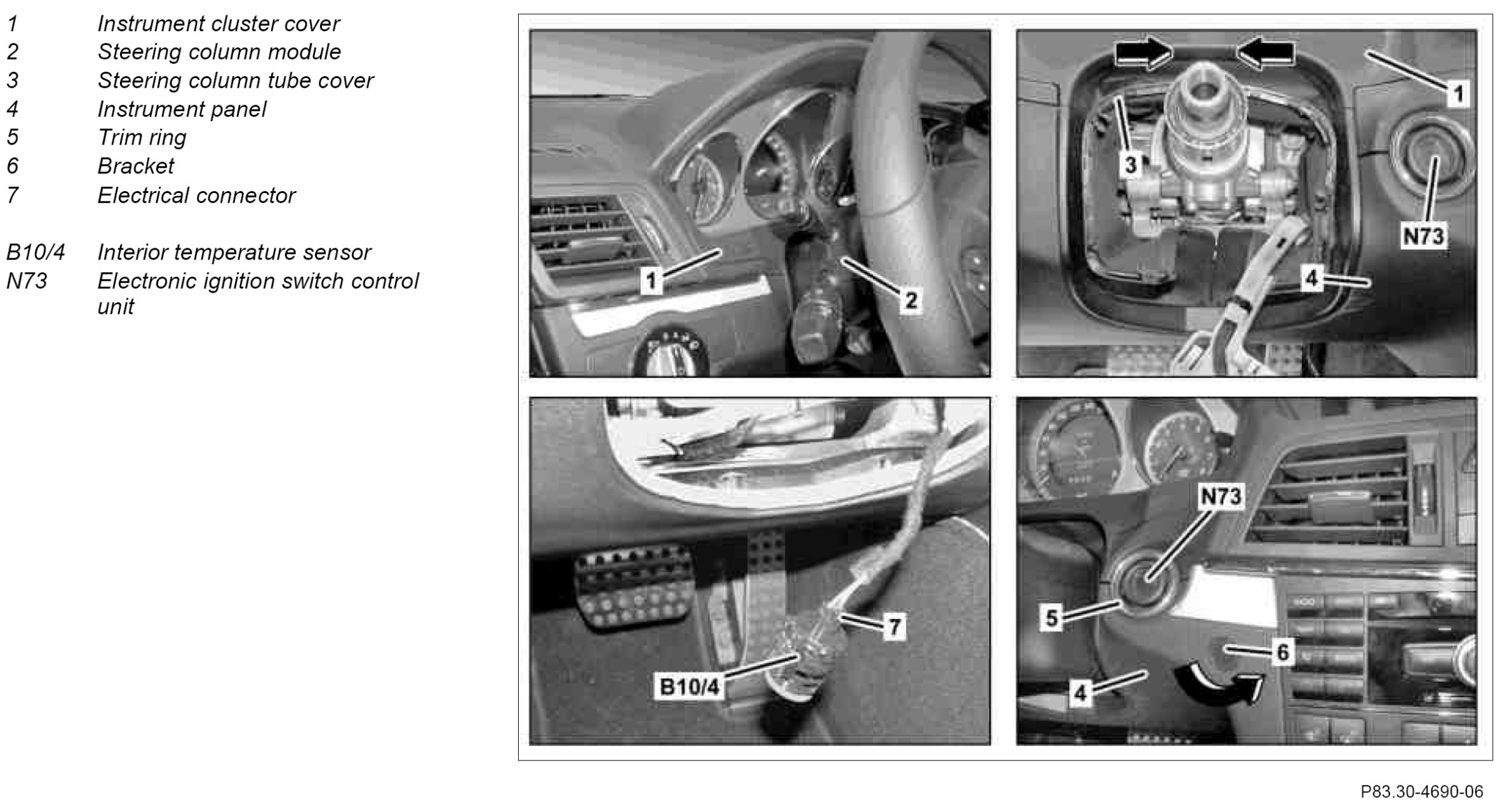

Component Identification:

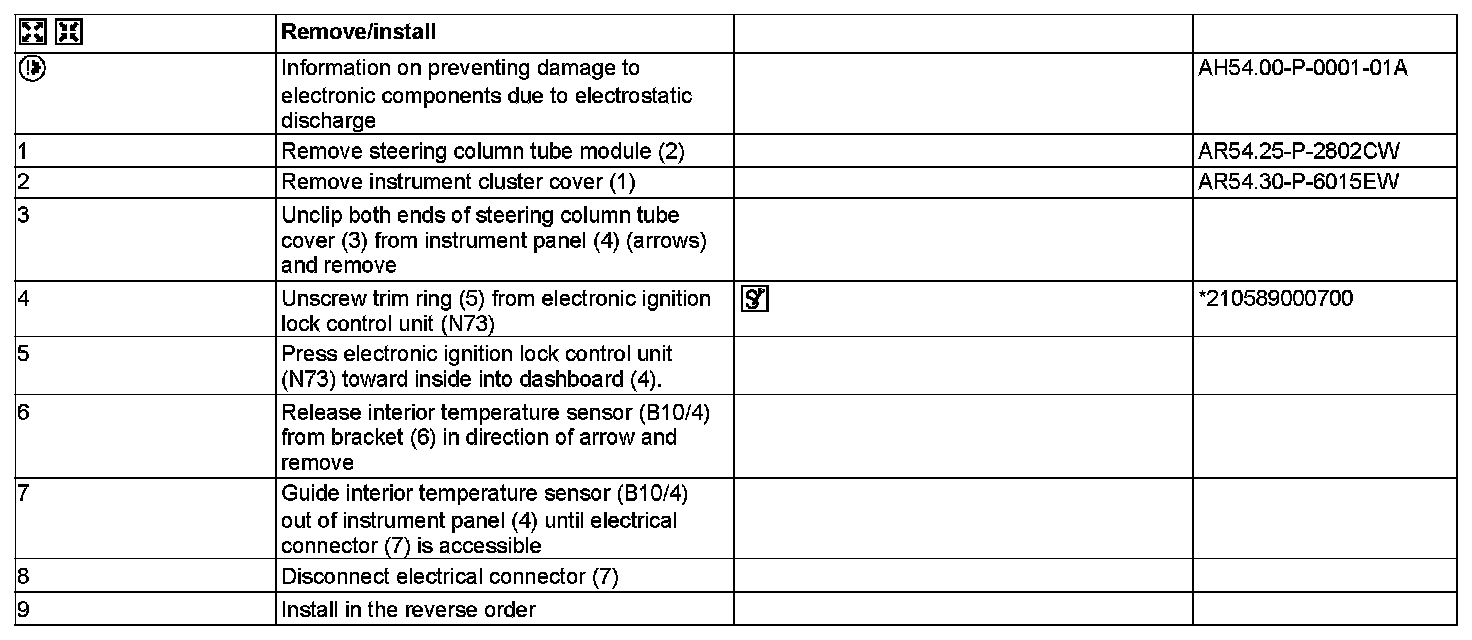

Steps 1-9:

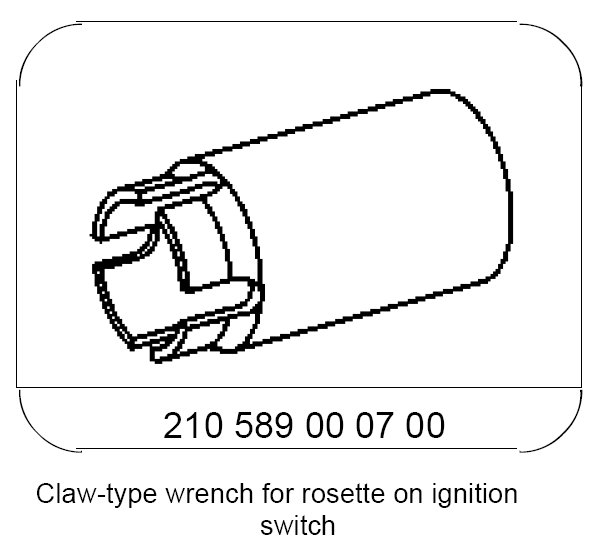

Special Tools:
