Mercedes Benz
>>
2012
>>
E 350 Coupe (207.359) V6-3.5L (276.957)
>>
Repair and Diagnosis
>>
Sensors and Switches
>>
Sensors and Switches - Brakes and Traction Control
>>
Lateral Accelerometer
>>
Service and Repair
Lateral Accelerometer: Service and Repair
AR42.45-P-0841CW Remove/install yaw rate and lateral acceleration sensor

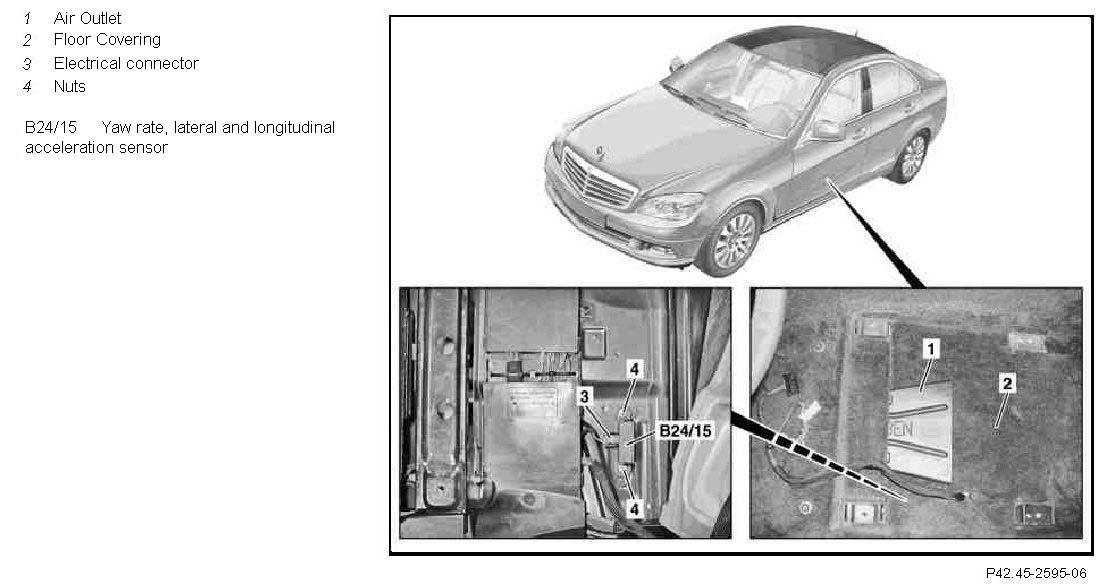

Component Identification:

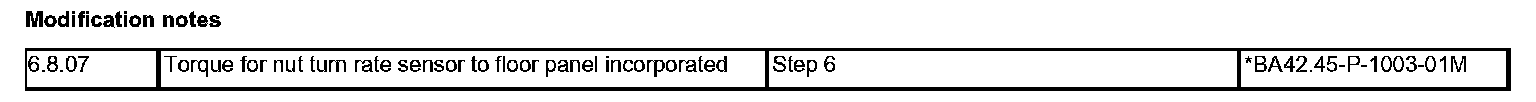

Modification notes:

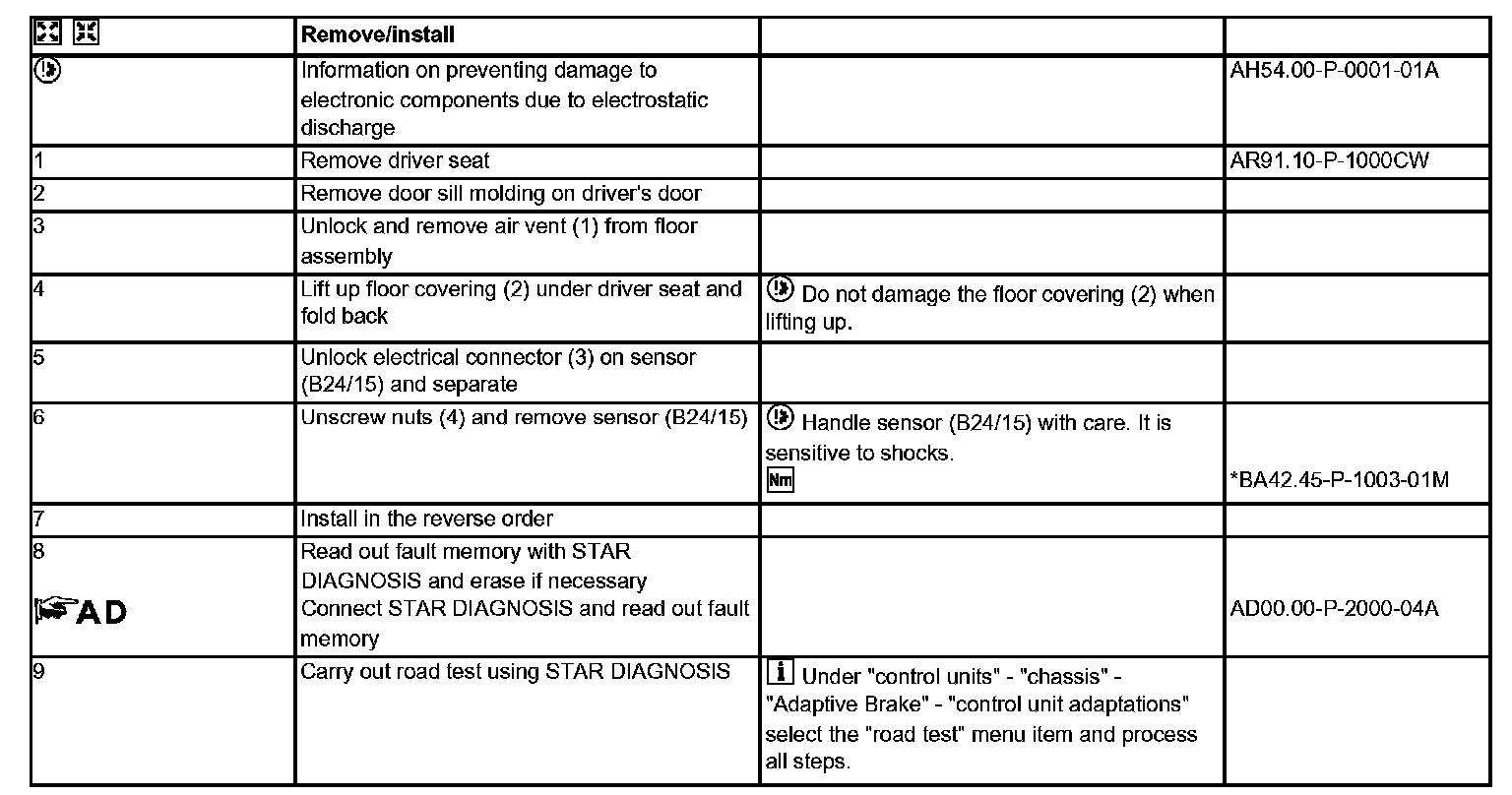

Remove/install Steps 1-9:

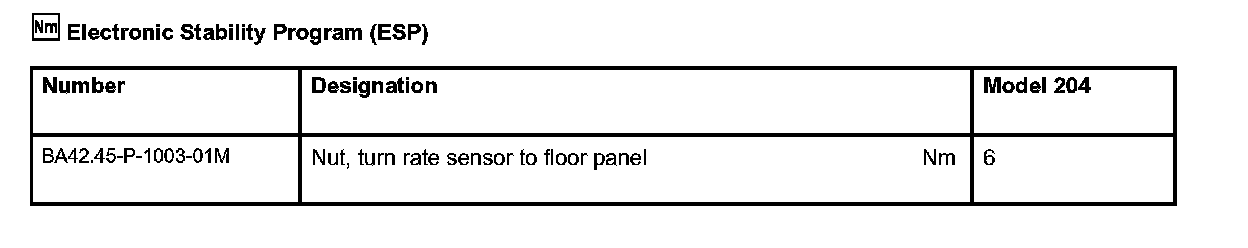

Electronic Stability Program (ESP):
