Home >> Mercedes Benz >> 2012 >> E 350 Coupe (207.359) V6-3.5L (276.957) >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Accessories and Optional Equipment >> Parking Assist Distance Sensor >> Service and Repair >> AR54.65-P-0001EC Remove/Install Parktronic System (PTS) Sensors In Front Bumper

AR54.65-P-0001EC Remove/Install Parktronic System (PTS) Sensors In Front Bumper



AR54.65-P-0001EC Remove/install Parktronic System (PTS) Sensors In Front Bumper
- with CODE (220) PARKTRONIC
- with CODE (230) Advanced Parking Guidance

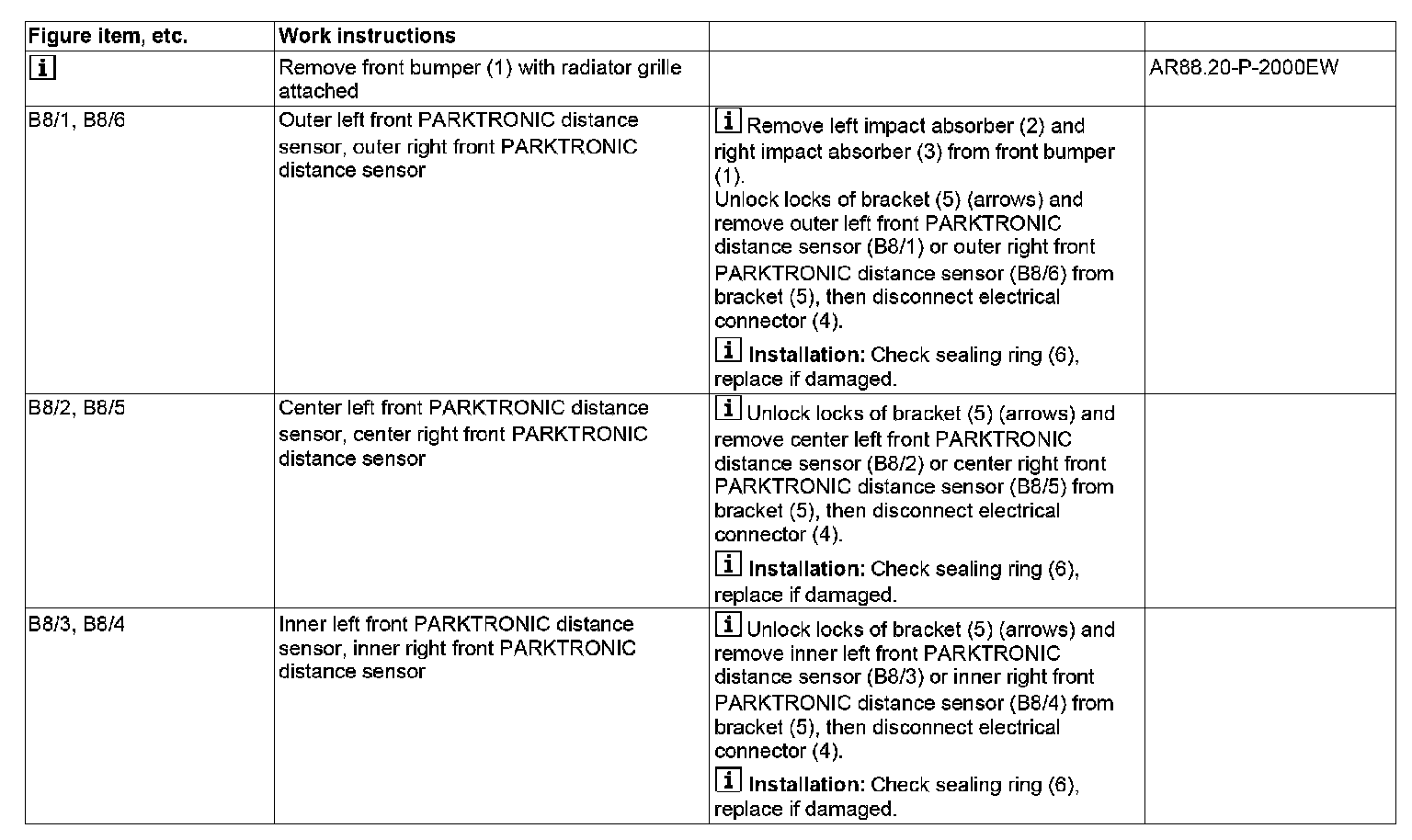

Component Identification:

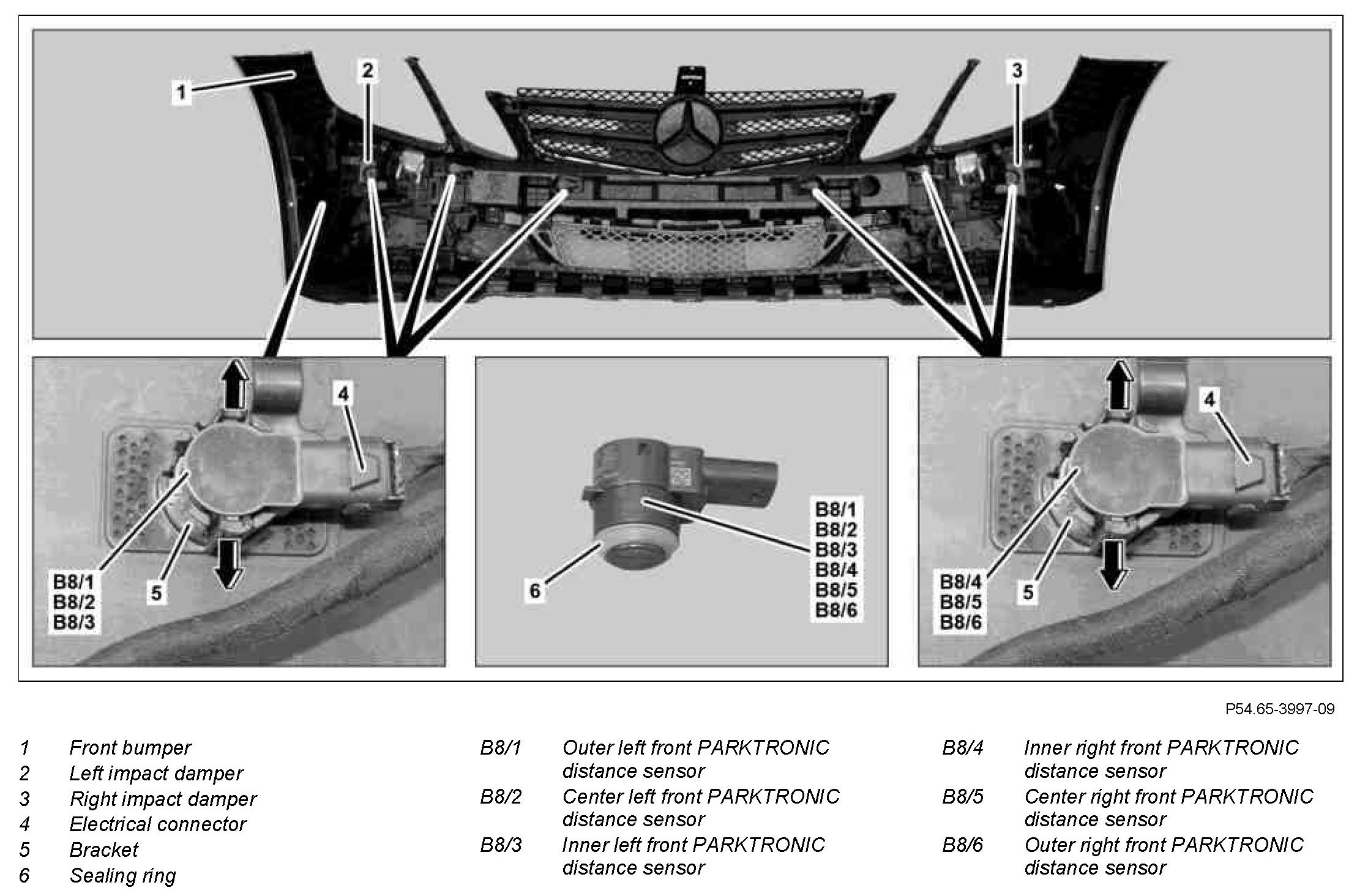

B8/1,B8/6 - B8/3,B8/4:
