AR91.60-P-0710EC Remove/Install Sidebag Sensor

AR91.60-P-0710EC Remove/Install Sidebag Sensor
MODEL 204.3, 207.3 /4

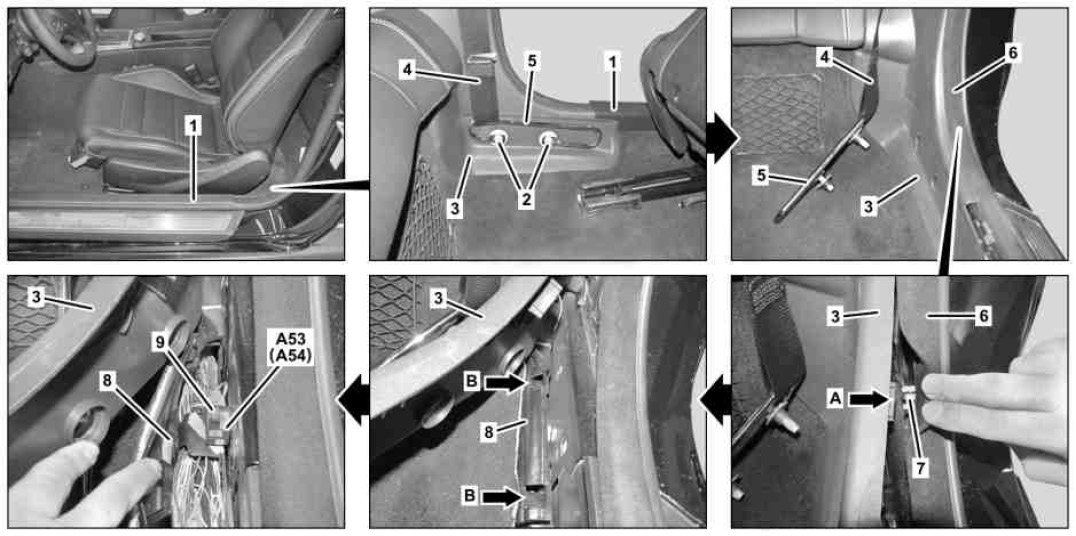

Illustrated on model 207.3

1 Door sill
2 Bolts
3 Cover
4 Seat belt
5 Belt end fitting
6 Weather strip
7 Clamp
8 Flap
9 Screw

A53 Left sidebag sensor
A54 Right sidebag sensor














115 589 03 59 00
Long wedge
