AR91.40-P-0681EC Remove/Install Rear Seat Belts
AR91.40-P-0681EC Remove/Install Rear Seat Belts
AR91.40-P-0681EC Remove/Install Rear
Seat Belts

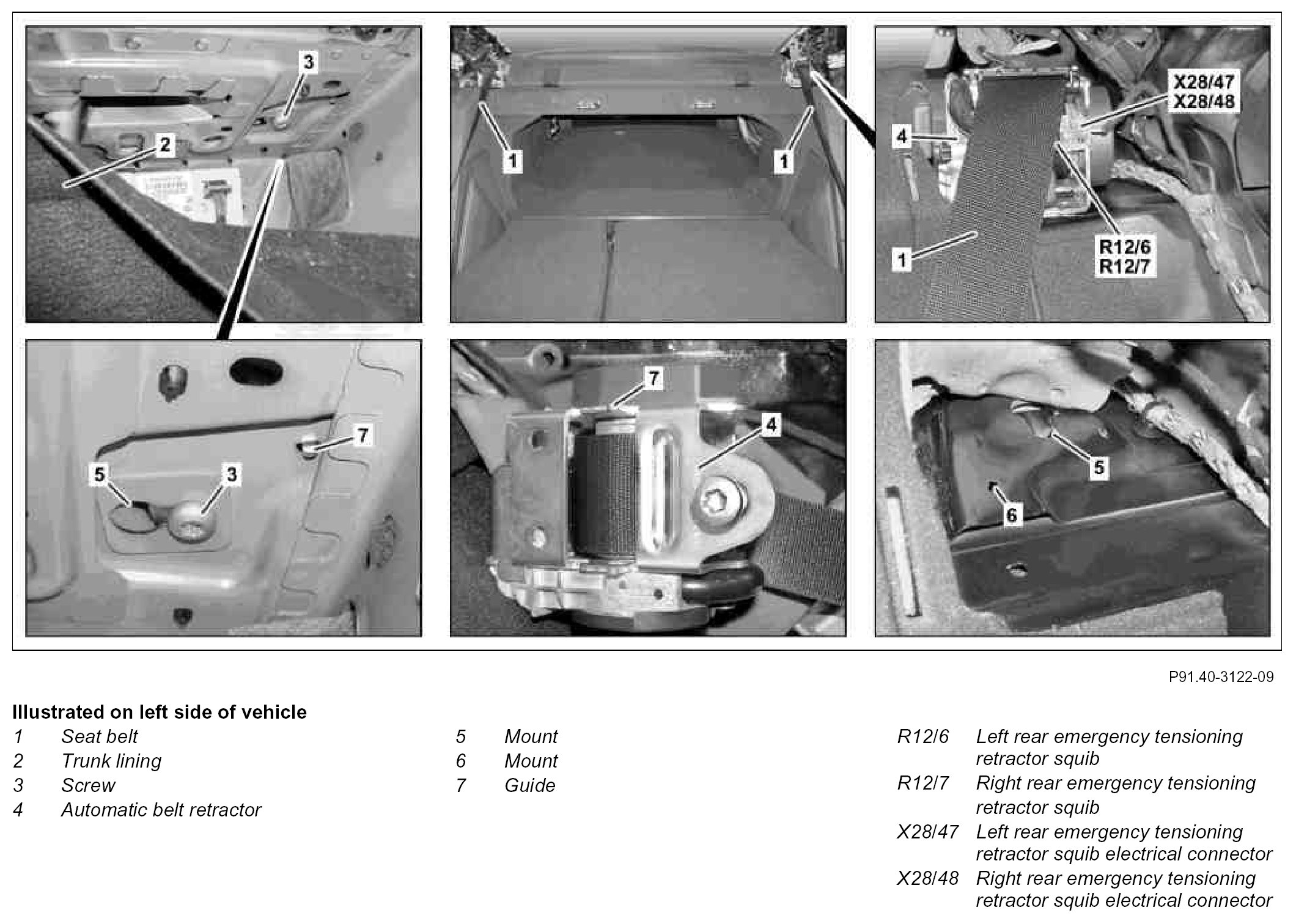

Component Identification:

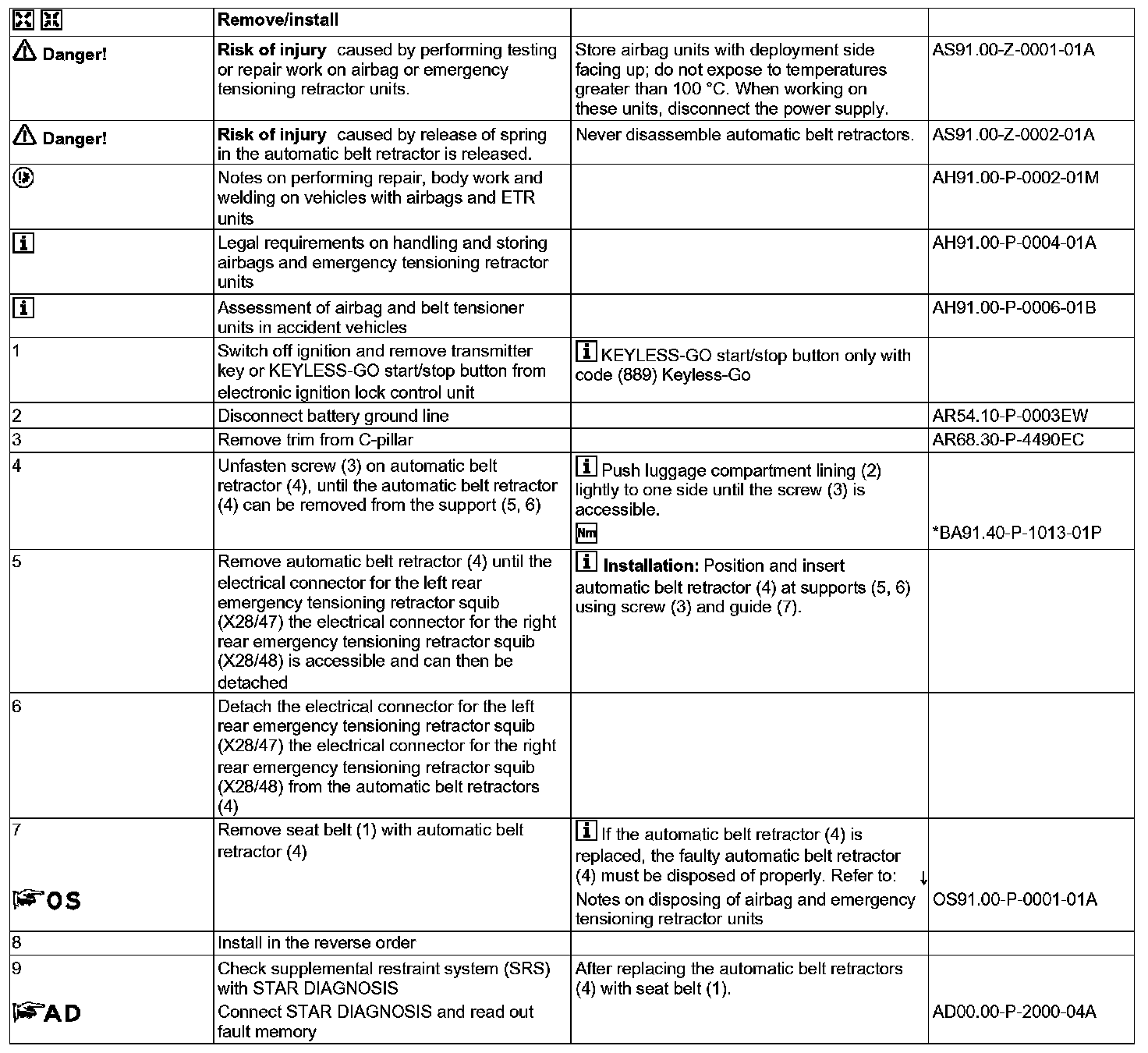

Steps 1 - 9:

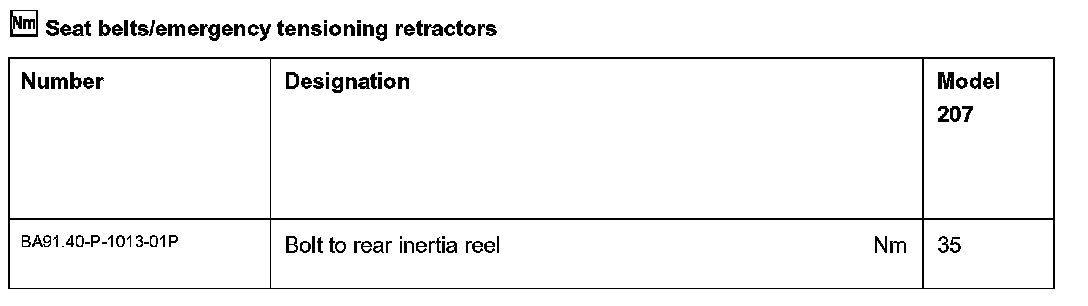

Seat Belts/Emergency Tensioning Retractors:
