Seat Belt Buckle: Service and Repair
AR91.40-P-1516EC Remove/Install Rear
Seat Belt Buckle

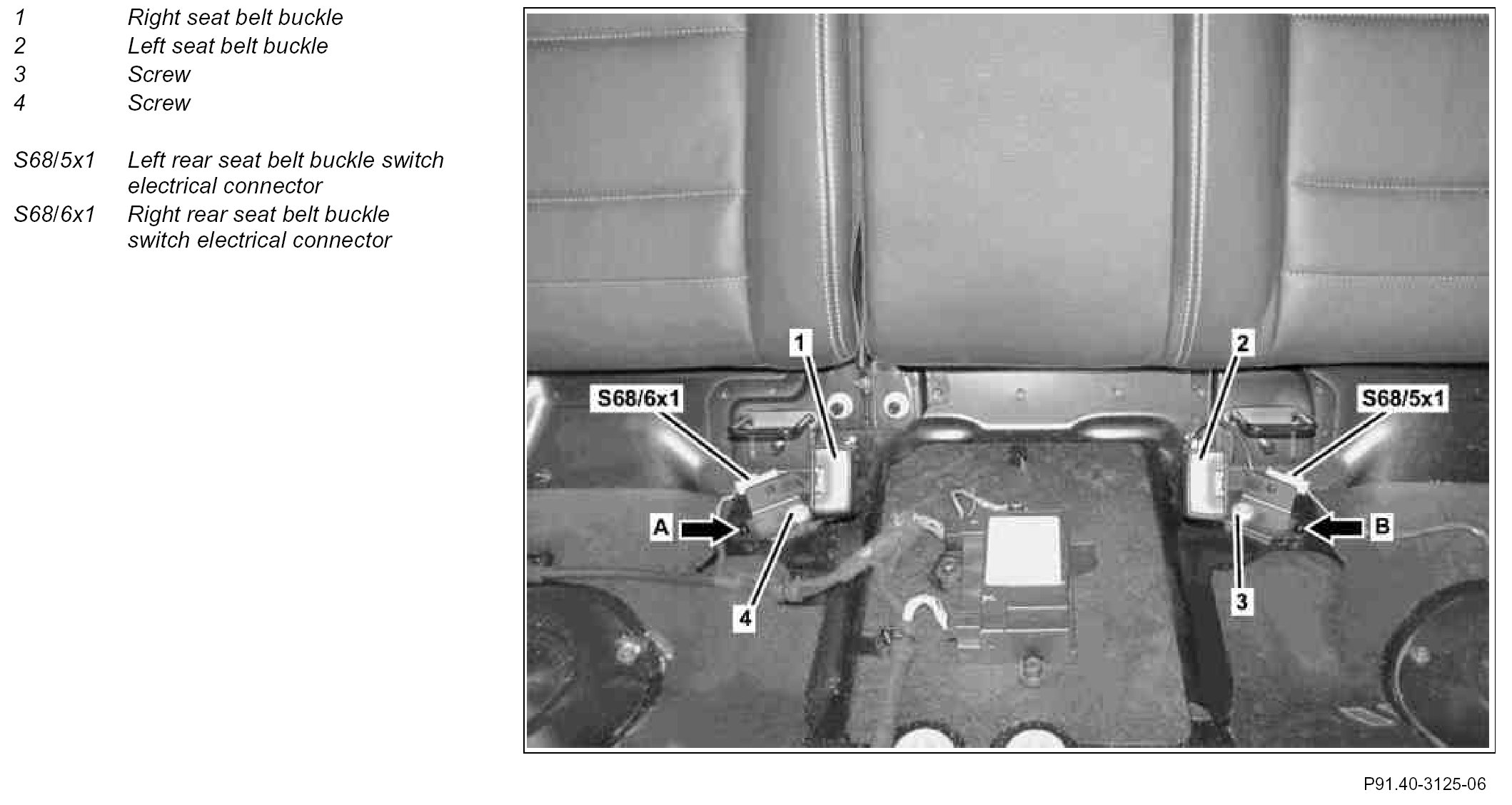

Component Identification:

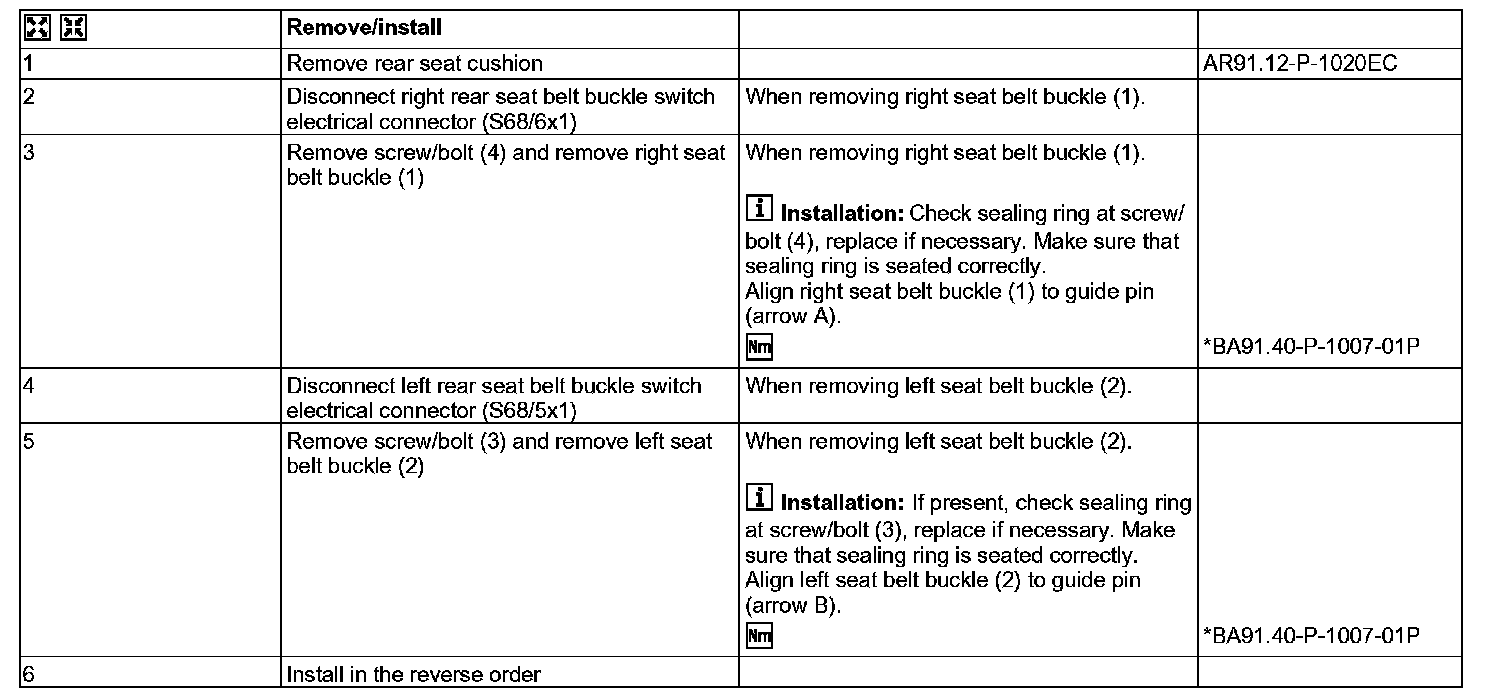

Steps 1 - 6:

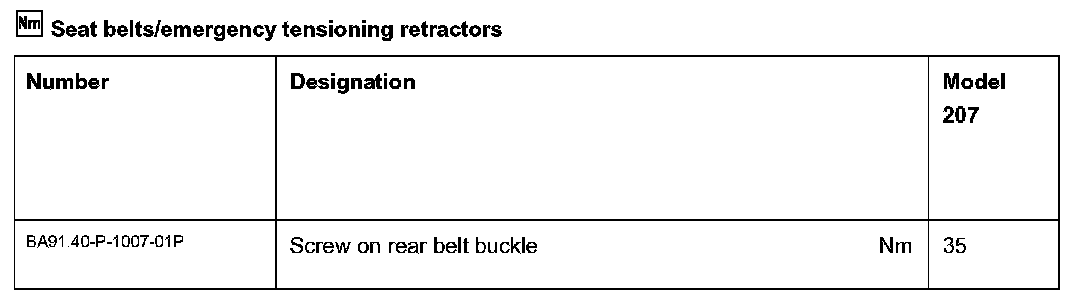

Seat Belts/Emergency Tensioning Retractors:
